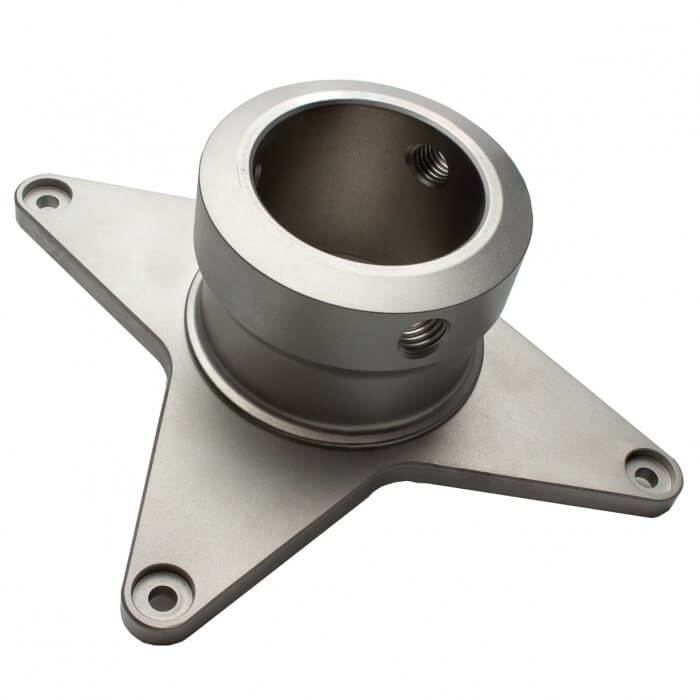

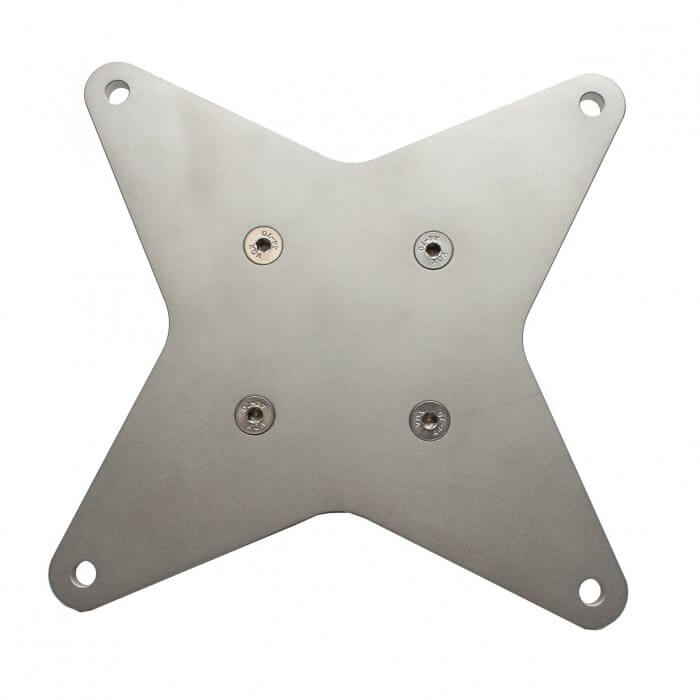

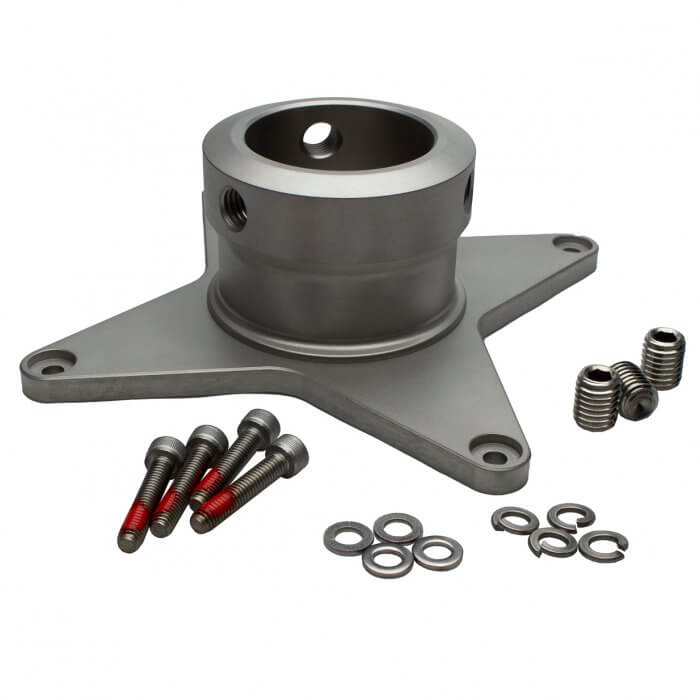

91-102967 Lars Thrane Pole Mount, Stainless Steel(A4) for Antennas

91-102967 Lars Thrane Pole Mount, Stainless Steel(A4) for Antennas

• Size: 2in pipe(Ø53.0mm),
• Material: A4 Stainless
• Compatibility: for all LT-31xx, 41xx, 42xx series Antennas

Pole mount installation procedure:
1. Screw the pole mount onto the Antenna Unit using the Head screws (max torque = 12 Nm) as illustrated on Figure 33
2. The Antenna Unit and pole mount can now be mounted on the 2.0” pipe. Fasten the three pole lock pinot screws, as illustrated in Figure 34 (max torque = 88 Nm)
3. Feed the coaxial cable through the supplied cable hose
4. Fasten the coaxial cable to the LT-4230 Antenna Unit (N connector)
5. Apply self-volcanic tape on the N connector and cable to protect against saltwater and corrosion
NOTE: The Pole Mount (2.0” pipe), Antenna Unit interfaces to a pipe of maximum 2.0” (53.0 mm), measured outer diameter.

NOTE: If installing the Antenna Unit without the use of the Pole Mount (2.0” pipe, 53.0mm), Antenna Unit, the max screw length of 25 mm.
