9555SD Beam 9555 SATDock Docking Station, No GPS
9555SD Beam Iridium SatDOCK for 9555
- In-vehicle hands-free docking station,
- Does NOT Support GPS
$544.50 Inc. GST
SatDOCKSD Beam Iridium SatDOCK 9555 In-vehicle hands-free docking station, does NOT support GPS, or GPS based services such as tracking and GPS based alerts.
APPLICATIONS
LAND – All types of vehicles, Trucks, Buses, Trains, Construction, Recreation, Fixed site applications
SEA – Crew Calling, Captain and Crew calling from one unit
AIR – Light Aircraft integrated communications, Helicopter integrated communications
Provides a high quality semi-permanent installation for the Iridium 9555 handset.
The docking station has inbuilt echo cancelling and full duplex technologies to provide superior voice quality and professional handsfree or privacy calls for various transport applications.
The Iridium 9555 satellite handset, fits securely in the Dock which is compact in design.
Other features include phone charging, USB data, inbuilt ringer and allows antenna and power to be permanently connected to the Dock ready for use.
The Iridium 9555 handset is easily inserted and removed by the press of a button on the top of the dock making it very easy to use away from the Dock when required.
SatDOCK also supports the use of an optional active privacy handset or the fully featured intelligent handset, RST970 these simply and easily added to the SatDOCK.
SatDOCK provides the flexibility of using your handheld satellite telephone to support the use of equipment for a wide variety of applications.
BENEFITS
• Install antenna, microphone and speaker in a convenient location, within the vehicle
• Voice services are easily accessed
• Data services available using USB connector
• Supports all Iridium internet and data service
• Purpose built to support the Iridium 9555 phone
• Accessible SMA antenna connection
• Hands-free Interface provides all the power and audio outputs
• Line level interface for specialised integrations.
• Optional Privacy Intelligent handset providing access to the same features available directly from
the 9555 phone
• Compact privacy handset provides a low cost alternative
• Delay Power OFF functionality after the ignition is turned OFF
• Allows to power unit on accessory power in emergency applications
• Charges 9555 battery whilst in the cradle
POWER SPECIFICATIONS
Rated Input: 9-32V DC, 2A max
Average Power Consumption: Current @ 12V Power Watts
Standby: 68mA
Transmit + charging: 0.7A 8.4W
Sleep Mode: 3mA 35mW

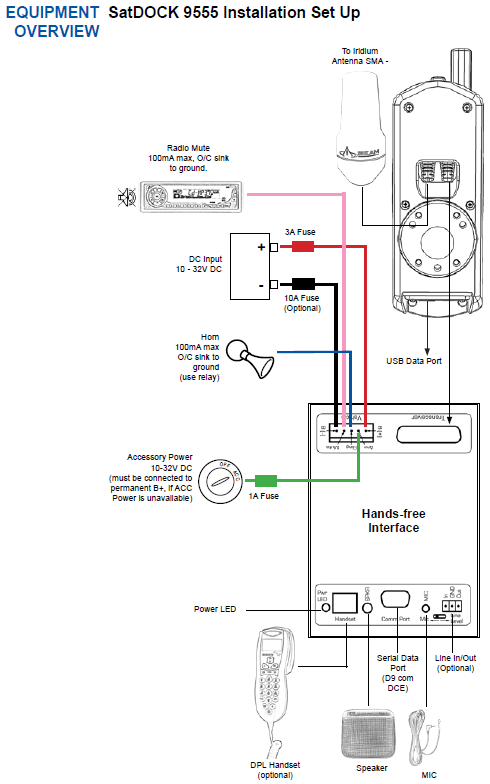

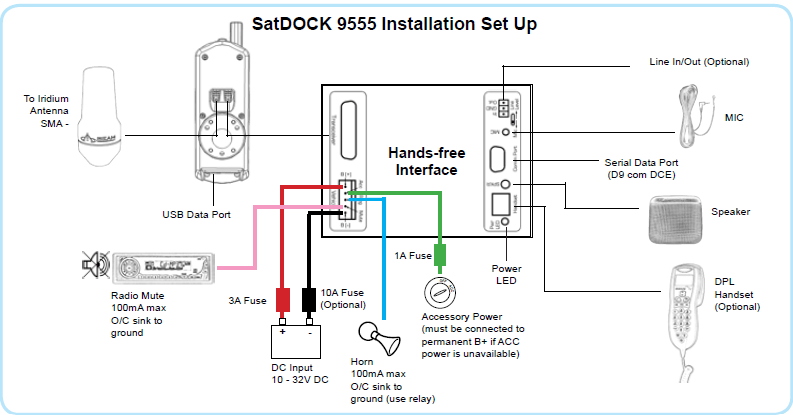

INTERFACES
External Speaker and Microphone: One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone.
Privacy Handset (Line In/Out): 4-pole 3.5mm audio jack at the bottom of the SatDOCK cradle.
Data Port (USB): USB Mini-B 5-pin female (USB Slave), USB 2.0 compliant, CDC Serial profile.
Alarm (Alert) Loop1 input, 1 output)Alarm Mode: “Normally-Closed” Loop IN to OUT, Up to 500m cable run / multiple buttons.
Power Cable: 4-way Microfit socket. +Vin, 0V (GND), and ACC (On/Off Sense). 9-32VDC tolerant., ACC sense: High(1) > +7Vdc, Low (0) 0V < +5Vdc
Horn Output: Green wire on the cable loom. Open collec¬tor output can be interfaced to 12 or 24VDC with up to 120mA current sink capability.
BLUETOOTH® MODULE (INTERNAL)
System: Bluetooth® ® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence.
Profiles: HFP – Hands-Free Profile v.1.5, HFP-AG – Hands-Free Audio Gateway Pro¬file v.1.5 & SPP – Serial Port Profile
Power: Default = Class 2 (< 10 metres), Class 1 (<100 metres), +18dBm max., 2.4GHz – 2.4835GHz Unlicensed ISM Band
Antenna: Integrated chip antenna
Regulatory: Bluetooth® identifier: B03005., CE 89/336/EEC – #EC/2006/20013C., FCC part 15 class B: SatDOCK contains Transmitter Module FCC ID: QOQWT11., Canada:, Cert# 5123A-BGTWT11E, Japan Standard: R 201 NY 07215089
Legal: The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Beam Communications is under license. Other trademarks and trade names are those of their respective owners.
GPS MODULE (INTERNAL)
Receiver Type: 14 tracking channels, 51 Acquiring, L1 frequency (1575.42MHz)
Update rate: 1Hz
Accuracy:Position 2.5mCEP, Velocity 0.1m/s, Timing 300ns
Acquisition TTFF:Cold 29sec, Hot 1sec
Sensitivity:-161 dBm
Operational Limits:Minimum gain 15 – 20dB
Dynamics:4G
Active Antenna Recommendation:Minimum gain 15 – 20dB(to compensate signal loss in RF cable), Maximum noise figure 1.5 dB, Maximum gain 50 dB
ENVIRONMENTAL SPECIFICATIONS
Operating Range SatDOCK: -20°C to +70°C
Operating Range 9555 Handset:-10°C to +55°C
Operating Humidity Range:< 85% RH non-condensing
Storage Temperature:-30C to +70C
Weight – Cradle: 0.32kg (0.7 lbs)
Weight – Shipping: 1.3kg (2.86 lbs)
Atmospheric Protection:Conformal Coating to Circuit Board Assy
EMC Compliance:CE, IEC60945:2002 (Section 9 & 10)
2009/19/EC – Automotive EMC directive
RoHS:Full compliant RoHS Directive EU 2002/95/EC (All 6 substances)
WEEE:For EU countries, this product must be col¬lected separately from household waste, as defined in each region. This product must not be discarded together with household waste.
Brand
Beam

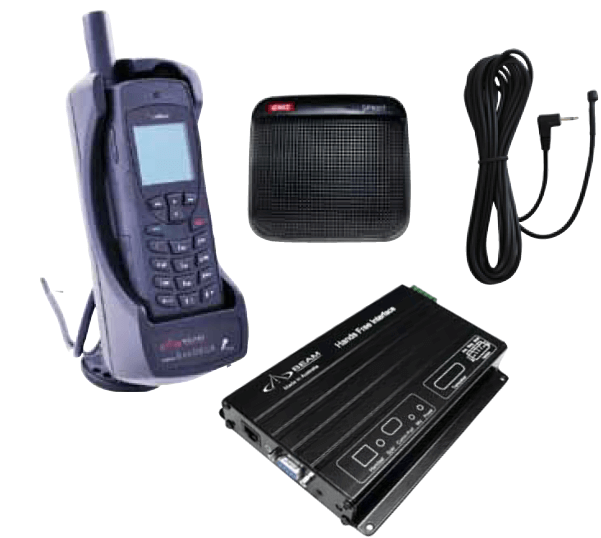

“Whats in the Box?”
