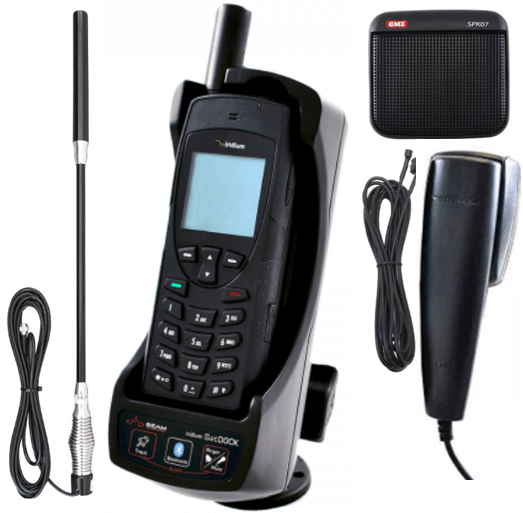

9555SDG-HSB Iridium 9555 and Beam SATDock-G Docking Station, Whip Antenna, Cable 5m, PHS, SatPhone
This PREMIUM Bundle Includes: Iridium 9555 Satellite telephone Factory Pack, 9555SDG Beam SatDOCK-G Docking Station Kit, and RST714 Whip/Bull Bar Antenna with 5m Fixed Cable.
$4,348.99 Inc. GST
9555SDG-HSB Iridium 9555 and Beam SATDock-G Docking Station, Whip Antenna, Cable 5m, PHS, SatPhone
This Premium Bundle, includes Iridium 9555N and Beam SatDOCK G Single Mode Whip Antenna Bundle is an all-in-one satellite communication solution.
Designed for users in remote, off-grid, and rugged environments, this bundle provides reliable communication through the Iridium satellite network.
This bundle includes:
- BPKTN1901 – Iridium 9555N(Latest Version) Satellite telephone Factory Pack
- 9555SDG – Beam 9555 SatDOCK-G: A high-performance docking station that allows your Iridium 9555 phone to connect with the Iridium satellite network. The dock provides more stable signal reception for voice, data, and text communication, even in challenging environments.
- RST714B – Beam Single Mode Whip Antenna: A compact, robust antenna designed to work efficiently with the Beam SatDOCK-G, ensuring optimal signal reception for both indoor and outdoor satellite communication.
Whether you’re using your Iridium 9555 for personal use, business, or during emergency situations, the Beam 9555 SatDOCK-G bundle is your go-to solution for maintaining reliable communication in remote and off-grid areas.
9555SDG > APPLICATION KEY:
- FIXED SITE / LAND = Iridium 9555 SatPhone + 9555SDG Docking Station + Magnetic, Pole, Whip or Bolt Mount Antenna + Cable
- VEHICLE/MOBILE = Iridium 9555 SatPhone + 9555SDG Docking Station + Magnetic, Pole, Whip or Bolt Mount Antenna + Cable
- MARITIME = Iridium 9555 SatPhone + 9555SDG Docking Station + Pole/Mast/Magnetic or Bolt Mount Antenna + Cable
- AVIATION = Iridium 9555 SatPhone + 9555SDG Docking Station + Aero Bolt Mount Antenna + Cable
9555SDG-HSB Includes: (BPKTN1901 + 9555SDG + RST714)
- part# BPKTN1901 Iridium 9555N Satellite Telephone Factory Pack with all accessories
- part# RST714 Beam Whip/Bull Bar Whip Antenna, with 5m Fixed Cable.
- Beam 9555 SatDOCK-G
- Microphone
- Speaker
- DC Power Cable/Lead
- RAM Bracket
- M4 Screw Set
- User Manual
- NOTE: Requires but does NOT include the 9555 Satellite Telephone
9555SDG – Accessories Available to order
- RST755I Privacy Handset Iridium(9555 DOCK series only)
- ISD951 Universal AC Plug Pack, 110-240VAC(all DOCK versions)
- RST060 UPS Battery Pack(all DOCK versions)
- < STANDARD ANTENNAS for all Devices >
- RST215 Iridium Magnetic Mount, Antenna, 5m cable
- RST220 Iridium Bolt Mount, Antenna, 5m cable
- RST210 Mast/Pole/Rail Mount, Antenna(requires cable)
- RST250 Dual Mode Iridium/GPS Magnetic Mount, Antenna(Light Weight), 5m cable
- RST205 Dual Mode Iridium/GPS Magnetic Mount, Antenna(Heavy Duty), 5m cable
- RST202 Dual Mode Iridium/GPS Mast/Pole/Rail Mount, Antenna(requires cable)
- < Anti-Piracy / Covert Antenna – Unobtrusive Design>
- CVTIRI Iridium Covert, Antenna(requires cable)
- < ACTIVE ANTENNA for Extra Long Cable Runs >
- RST740 Iridium Mast/Pole/Rail Mount, Active Antenna(requires cable)
- < AVIATION ANTENNA – C-144 TSO Approved, with FAA Cert. >
- RST719 Iridium Bolt Mount, Antenna(requires cable)
- < STANDARD CABLES for all Devices>
- RST932 Iridium Antenna Cable Kit Passive – 6m/19.7ft
- RST933 Iridium Antenna Cable Kit Passive 12m/39.4ft
- RST935 Iridium Antenna Cable Kit Passive 20m/65.6ft
- RST936 Iridium Antenna Cable Kit Passive 30m/98ft
- < GPS CABLES for GPS enabled Devices >
- RST942 Iridium GPS Cable Kit 6m/19.7ft
- RST929 Iridium GPS Cable Kit 9m/29.5ft
- < ACTIVE CABLES for RST740 Active Antenna>
- RST944 Iridium Active Cable Kit 23m/75.5ft
- RST945 Iridium Active Cable Kit 34m/111.5ft
- RST946 Iridium Active Cable Kit 52m/170.6ft
- RST947 Iridium Active Cable Kit 75m/246.1ft
- RST948 Iridium Active Cable Kit 104m/341.21ft
The Iridium 9555N Satellite Phone offers global satellite coverage for voice calls and SMS from virtually anywhere on Earth. Paired with the Beam 9555 SatDOCK-G, this docking station enhances the satellite phone’s performance, ensuring clear communication even in challenging conditions.
The Iridium Beam Whip Single Mode Antenna ensures stable, long-range connectivity, making this bundle the ideal choice for those who require durable satellite communication equipment for maritime, remote work, or outdoor adventures.
specifications
- Dimensions: 200.5 x 74.36 x 68 mm
- Weight: 320g
- Input: 9 – 32V DC (2A max)
- Consumption (Standby): 68mA
- Consumption (Transmit & Charging): 0.7A
- Consumption (Sleep Mode): 3mA
- Dock Operating Temperature: -20°C to +70°C
- Operating Humidity Range: < 85% RH non-condensing
- Storage Temperature: -30°C to +70°C
9555SDG > Iridium Beam 9555SatDOCK-G
POWER SPECIFICATIONS
Rated Input: 9-32V DC, 2A max
Average Power Consumption: Current @ 12V Power Watts
Standby: 68mA
Transmit + charging: 0.7A 8.4W
Sleep Mode: 3mA 35mW
INTERFACES
External Speaker and Microphone: One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone.
Privacy Handset (Line In/Out): 4-pole 3.5mm audio jack at the bottom of the SatDOCK cradle.
Data Port (USB): USB Mini-B 5-pin female (USB Slave), USB 2.0 compliant, CDC Serial profile.
Alarm (Alert) Loop1 input, 1 output)Alarm Mode: “Normally-Closed” Loop IN to OUT, Up to 500m cable run / multiple buttons.
Power Cable: 4-way Microfit socket. +Vin, 0V (GND), and ACC (On/Off Sense). 9-32VDC tolerant., ACC sense: High(1) > +7Vdc, Low (0) 0V < +5Vdc
Horn Output: Green wire on the cable loom. Open collec¬tor output can be interfaced to 12 or 24VDC with up to 120mA current sink capability.
BLUETOOTH® MODULE (INTERNAL)
System: Bluetooth® ® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence.
Profiles: HFP – Hands-Free Profile v.1.5, HFP-AG – Hands-Free Audio Gateway Pro¬file v.1.5 & SPP – Serial Port Profile
Power: Default = Class 2 (< 10 metres), Class 1 (<100 metres), +18dBm max., 2.4GHz – 2.4835GHz Unlicensed ISM Band
Antenna: Integrated chip antenna
Regulatory: Bluetooth® identifier: B03005., CE 89/336/EEC – #EC/2006/20013C., FCC part 15 class B: SatDOCK contains Transmitter Module FCC ID: QOQWT11., Canada:, Cert# 5123A-BGTWT11E, Japan Standard: R 201 NY 07215089
Legal: The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Beam Communications is under license. Other trademarks and trade names are those of their respective owners.
GPS MODULE (INTERNAL)
Receiver Type: 14 tracking channels, 51 Acquiring, L1 frequency (1575.42MHz)
Update rate: 1Hz
Accuracy:Position 2.5mCEP, Velocity 0.1m/s, Timing 300ns
Acquisition TTFF:Cold 29sec, Hot 1sec
Sensitivity:-161 dBm
Operational Limits:Minimum gain 15 – 20dB
Dynamics:4G
Active Antenna Recommendation:Minimum gain 15 – 20dB(to compensate signal loss in RF cable), Maximum noise figure 1.5 dB, Maximum gain 50 dB
ENVIRONMENTAL SPECIFICATIONS
Operating Range SatDOCK: -20°C to +70°C
Operating Range 9555 Handset:-10°C to +55°C
Operating Humidity Range:< 85% RH non-condensing
Storage Temperature:-30C to +70C
Weight – Cradle: 0.32kg (0.7 lbs)
Weight – Shipping: 1.3kg (2.86 lbs)
Atmospheric Protection:Conformal Coating to Circuit Board Assy
EMC Compliance:CE, IEC60945:2002 (Section 9 & 10)
2009/19/EC – Automotive EMC directive
RoHS:Full compliant RoHS Directive EU 2002/95/EC (All 6 substances)
WEEE:For EU countries, this product must be col¬lected separately from household waste, as defined in each region. This product must not be discarded together with household waste.
