9602-BTI NAL Iridium 9602 Modem, LBT with Encryption, GPS, Rugged, Waterproof

9602-BTI NAL Iridium 9602 Modem, LBT with Encryption, GPS, Rugged, Waterproof

• The 9602-BTI is a variation of the original 9602-LP.
• It functions the same as the 9602-LP
• Also is built more ruggedly to be waterproof and weather-resistant
• Built to endure more hostile environments.

STANDARD INFO – 9602-LP NAL Iridium 9602 Modem, LBT with Encryption, GPS

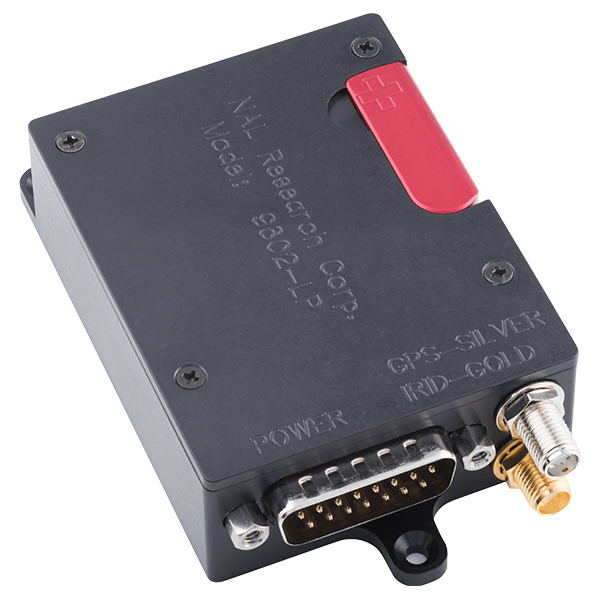

The 9602-LP is a pocket-size, low-cost, satellite tracker designed to operate with the Iridium low-Earth orbit satellite network.

It is a self-contained unit relying on an internal micro-controller/GPS receiver for operation.

The 9602-LP measures 2.7” x 2.2” x 0.9”, weighs less than 5 ounces and can be attached to high value, un-tethered or non-powered assets such as shipping containers, barges, railcars, trailers, buoys or even to a person.

It is also being used by the militaries to track environmentally demanding platforms including helicopters, fixed wing aircraft, unmanned aerial vehicles, rockets, high altitude balloons, ships, speed-boats, ground vehicles and hand-emplaced and air-deployed remote sensors.

NAL’s Model 9602-LP Tracker is an ultra-low power consumption tracker designed for SBD data communication using the Iridium® satellite network.

Model 9602-LP can send either standard or 256-bit AES-encrypted GPS reports at a pre-programmed interval ranging from once every 60 seconds to once every seven days. The interval can be changed remotely while the unit is in the field.

Key Features:

• Standby current of less than 65µA
• Wide input voltage range from 5V to 32V
• Internal Motion Sensor
• Two (2) RS232 level I/Os for sensor interfaces
•  Seven (7) TTL/CMOS level I/Os for sensor interfaces
• GPS Sensitivity of –160dBm
• Programmed for either Commercial or DoD Gateway
•  Supports NAL Research and PECOS formats
• Programmed for either DoD
  or commercial gateway

 Ultra-low power consumption
 256-bit AES encryption
 Real-time two-way communications allowing remote configuration from a command center workstation
 Real-time GPS reporting
 Pole-to-pole global coverage
 Weighs less than 5 ounces
 Volume of 2.7” x 2.2” x 0.9”
 Easy to install and can be used as personnel tracking device
 Emergency alert switch
 LEDs displaying satellite status, and successful transmissions
 Integrated motion sensor
 Seven I/Os for sensor interfaces
 One serial for sensor interface
 50-channel GPS receiver with -160 dBm sensitivity

Compatible Airtime Service:

Iridium SBD

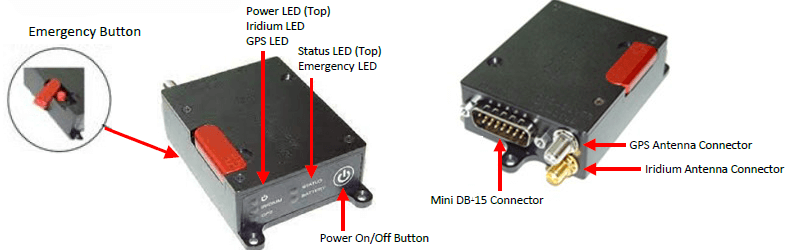

The 9602-LP has a guarded Emergency switch to alert the recipient of an emergency situation as well as to indicate proper operation of the tracker.

It has five LEDs providing the status of power input, GPS fix, Iridium connection, SBD transmission and emergency alert.
