9602-NAL NAL Iridium 9602 Modem, LBT
The 9602-NAL can access either the Iridium Commercial Gateway at Tempe, Arizona or the US DoD EMSS Gateway when requested by an authorized user.
9602-NAL NAL Iridium 9602 Modem, LBT
- The 9602-NAL Modem is a satellite transceiver designed to operate with the Iridium® network in SBD-only mode, and communicates with a host system through an RS232 interface.
- Can accept input voltage ranging from 5VDC to 32VDC.
- The 9602-NAL can access either the Iridium Commercial Gateway at Tempe, Arizona or the US DoD EMSS Gateway when requested by an authorized user.
DEVICE DESCRIPTION:
The 9602-NAL modem is a satellite transceiver comprising an Iridium 9602 transceiver with an extended input voltage range, that allows SBD connectivity to the Iridium satellite network.
It does not support voice, circuit switched data, or Short Message Service (SMS ).
The 9602-NAL can be controlled by a DTE capable of sending standard AT commands via an RS232 serial port.
It is recommended to use 6 32 screws to fasten the modem down.
IMPORTANT

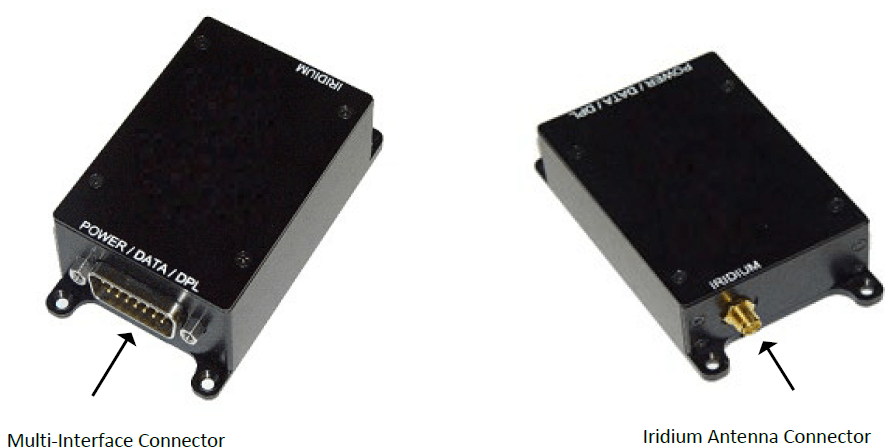

- DB 15 Multi Interface Connector : The multi interface connector is a male 15 pin miniature D sub type that includes four interfaces RS232, DC input power, ON/OFF control line, and TX_ACTIVE.
- Iridium Antenna Connector: The 9602-NAL modem uses a single SMA female 50 ohm connector to both transmit and receive messages from the Iridium network
- RS232 Data Interface : This interface allows a connected DTE to utilize the 9602’s modem functionality through
standard AT and extended sets of AT commands.
Key Features
- Operation does not require a SIM card.
- Has an automatic notification indicating a message is queued at the gateway.
- Offers a maximum Mobile Originated (MO) message size of 340 bytes.
- Supports Mobile Terminated (MT) message sizes of 270 bytes.
- Supports RS232 serial connection with control by a Data Terminal Equipment (DTE) device and an AT command set.
- Capable of accepting voltage ranging from 5VDC to 32VDC.
Compatible Airtime Service:
SBD
Specifications
Mechanical
Dimensions: 2.81” L x 1.90” W x 0.91” D
(71 mm x 48 mm x 23 mm)
Weight: 4.8oz (136g)
I/O Interface: 15-Pin D-Sub
Antenna: SMA
Cooling: Convection
Enclosure: Aluminum/EMI shielding
Electrical
Input Voltage Range: 5VDC to 32VDC
Input Nominal Voltage: 5.0VDC
Input Ripple Voltage: 40mV pp
Avg. Standby Current: 45mA @ 5.0VDC
Avg. Transmit Current: 190mA @ 5.0VDC
Peak Current: 1.5A @ 5.0VDC
