A3LA-RS NAL Iridium 9523 Modem, LBT
The A3LA-RS supports all Iridium data services including dial-up, RUDICS, SBD and SMS – NO Voice
$3,213.10 Inc. GST
A3LA-RS NAL Iridium 9523 Modem, LBT

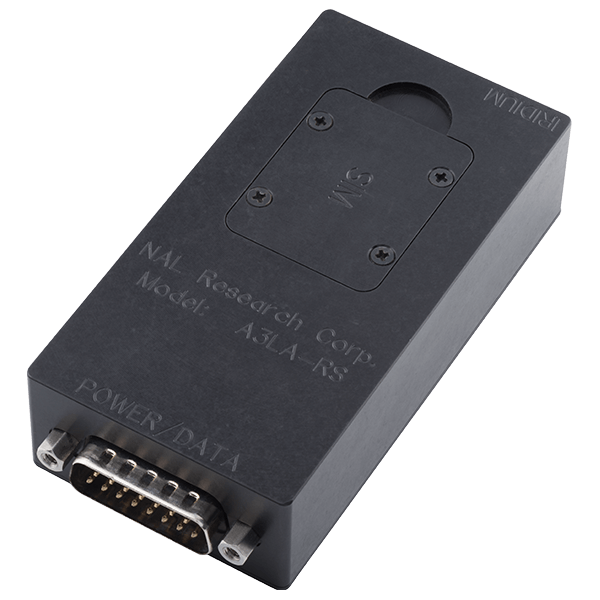

The A3LA-RS is a satellite modem comprised of an Iridium® 9523 transceiver.
It allows SBD, SMS, data switch and RUDICS connectivity to the Iridium satellite network.
NOTE: The A3LA-RS does not support voice communications.
DEVICE DESCRIPTION:
The A3LA-RS is a satellite modem comprised of an Iridium® 9523 transceiver.
It supports SBD, SMS, dial-up data switch Direct internet connection (or NIPRNET connection), Direct internet connection using Apollo Emulator (only for DoD EMSS Gateway), and RUDICS connectivity to the Iridium satellite network.
The A3LA-RS does not support voice communications. The A3LA-RM can be controlled by a DTE capable of sending standard AT commands via a serial port.
IMPORTANT: The A3LA-RS antenna must have a full view of the sky during transmission

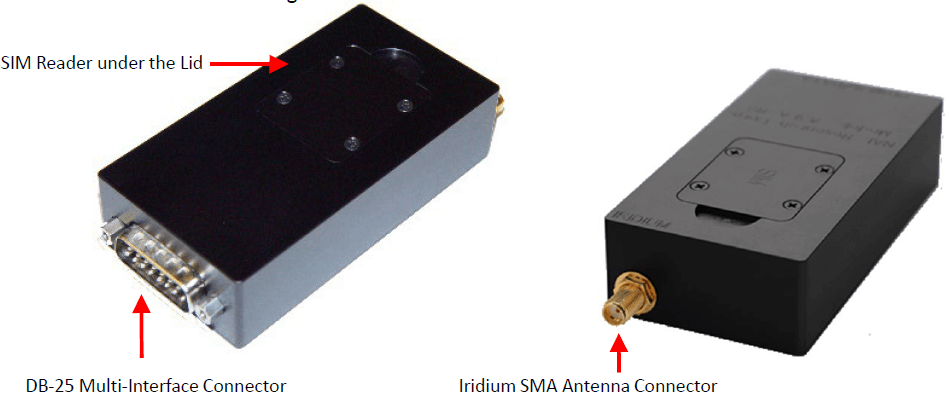

DB25 Multi-Interface Connector: The multi-interface connector is a male 15-pin miniature D-sub type that includes four interfaces –RS232, DC input power, ON/OFF control line, and TX_ACTIVE.
Iridium TNC Antenna Connector: The A3LA-RS modem uses a single SMA female 50-ohm connector to both transmit and receive message from the Iridium network.
Key Features:
- Low cost
- Small form factor
- Data-only modem capable of SBD, SMS, Data Switch and RUDICS
- RS-232 Interface
- Functionally the same as the Iridium 9522B Modem data functions
- Approx. 70% less volume than the Iridium 9522B Modem
- Approx. 70% lighter than the Iridium 9522B Modem
Compatible Airtime Services:
Dial-Up, RUDICS, SBD, SMS
