ASE-AD512 ASE Iridium Passive Filtered Antenna Kit, Heavy-Duty Mount, Land and Maritime

SKU: ASE-AD512

$1,754.50 Inc. GST

ASE_Premium_Antenna_brochure_Mar_21.pdf 1_all-ASE-Resiliency-Solutions.pdf BR_Iridium-Passive-Filtered-Antenna-PDF-1.pdf

ASE-AD512 IRIDIUM Passive Filtered Antenna

A rugged passive Iridium antenna with an interdigital filter designed to operate in harsh environments.

The antenna’s base is milled from aluminium and hard anodised to give a mechanically resilient medium grey finish resistant to corrosion.

The radome is 4 mm thick GRP, and the mass of the antenna is 1.1kg.

The AD512 has a RHCP radiation pattern over the Iridium band and should be mounted to give an unobstructed view of the sky from horizon to horizon.

Each antenna incorporates a low-loss interdigital filter to reject interference at frequencies neighbouring the Iridium band (figure 4) for example from Inmarsat uplinks or mobile phone masts.

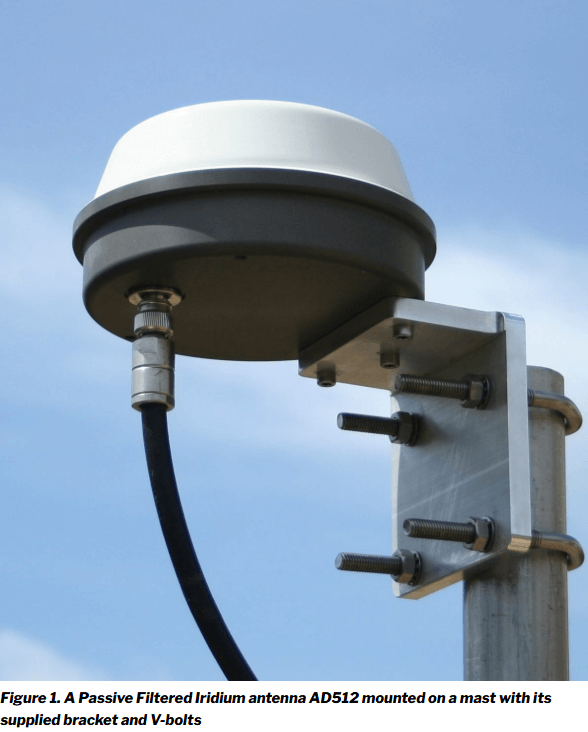

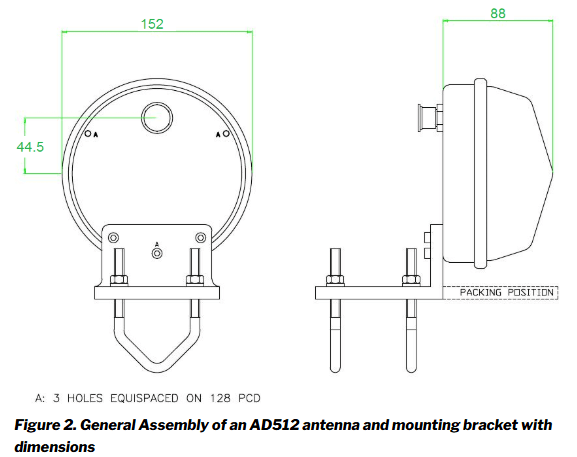

The bracket (AD510-2) provided with each antenna can be attached to a mast or spar up to 60mm in diameter using the V-bolts provided. Connection to the Iridium handset is made with a low-loss coaxial cable from a TNC (or optional N-type connector) on the underside of the antenna.

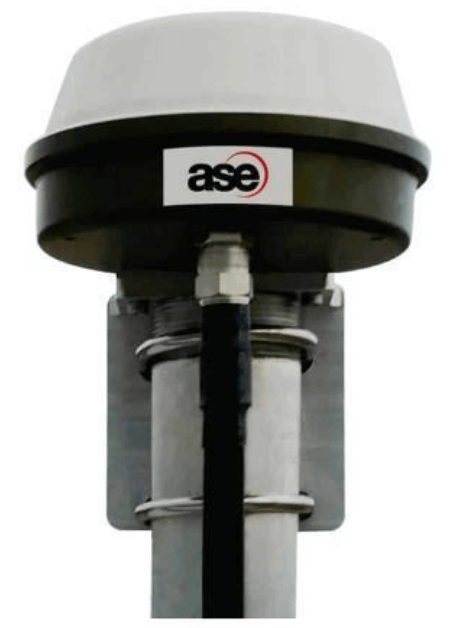

AD512 package Includes:

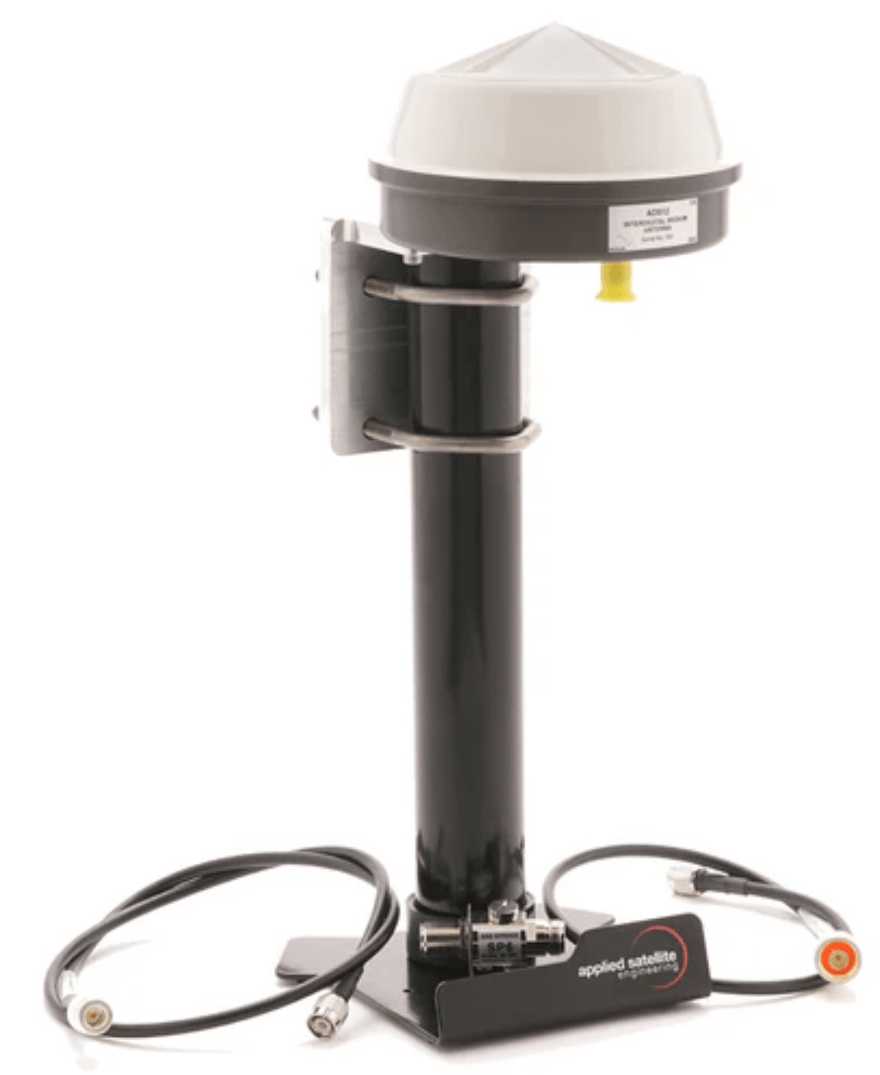

  • part# ASE-AD512 Active antenna
  • part# ASE-MNT20 Mast/Pole/Pipe Mount(supports up to 53mm Pipe Diameter)
  • NOTE: Requires, but DOES NOT include any power supply, or Extended lengths of Iridium RF Cable to connect Break-in Box to Antenna

Specifications

  • Dimensions (excl mounting bracket): H100mm x Dia150mm
  • Weight (excl mounting bracket): 1.1kg
  • Operating Temperature: -40 °C to +85 °C
  • Antenna Head Connection N-female Type
  • Frequency: 1610 – 1630 MHz
  • VSWR: <2:1
  • Polarisation: Right Hand Circular
  • Antenna Type: RHCP Dipole
  • Cable loss: 1.5dB @ 1626MHz

In order to meet the requirements of directive 1999/5/EC, the AD512 must only be used with Iridium systems that conform and operate within the Iridium frequency band harmonised throughout the Community.

In particular, article 3.2 of the directive stipulates that effective use should be made of the system’s allotted spectrum with avoidance of harmful interference (e.g. those identified in ERC/DEC/(97)03 and ERC/DEC/(97)05), consequently the antenna must not be connected to a signal source generating spurious emissions.



Brand

ASE
