ASE-AD510-4 ASE Iridium Passive Antenna Kit, Heavy-Duty Pole Mount, N-Female conn
This pack includes: AD510-4 with N-Type-Female and Pole/Mast Mount Kit.
- Order part# AD510-1 for unit with TNC-Female base connector
$416.90 Inc. GST
AD510-4 ASE Iridium Passive Antenna Kit, Heavy-Duty Pole Mount, N-Type-F connector
Iridium AD510 Passive Antenna is an extremely robust antenna designed for use with all of the Iridium series of satellite phones.
ORDERING GUIDE
- Both models include the Mounting Bracket Kit, part# AD512-2
- Model Number AD510-1 features a TNC-Female base connector

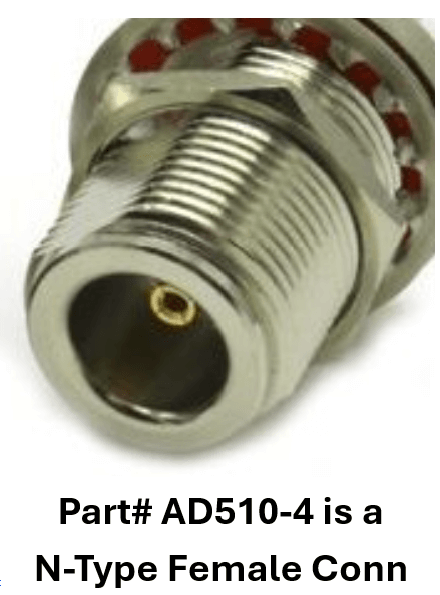

- Model Number AD510-4 features a N-Female base connector

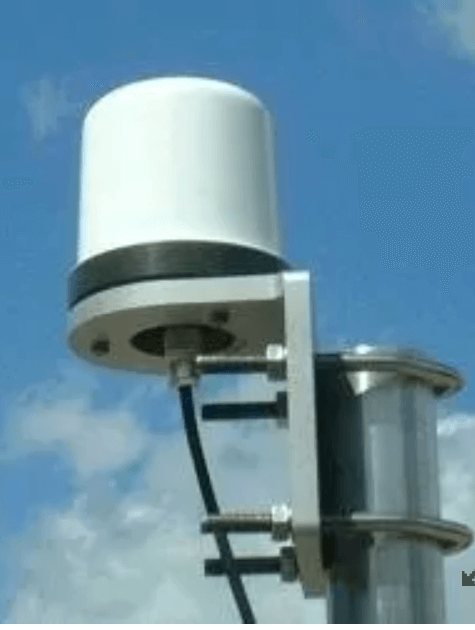

The Iridium AD510 Passive Antenna provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.

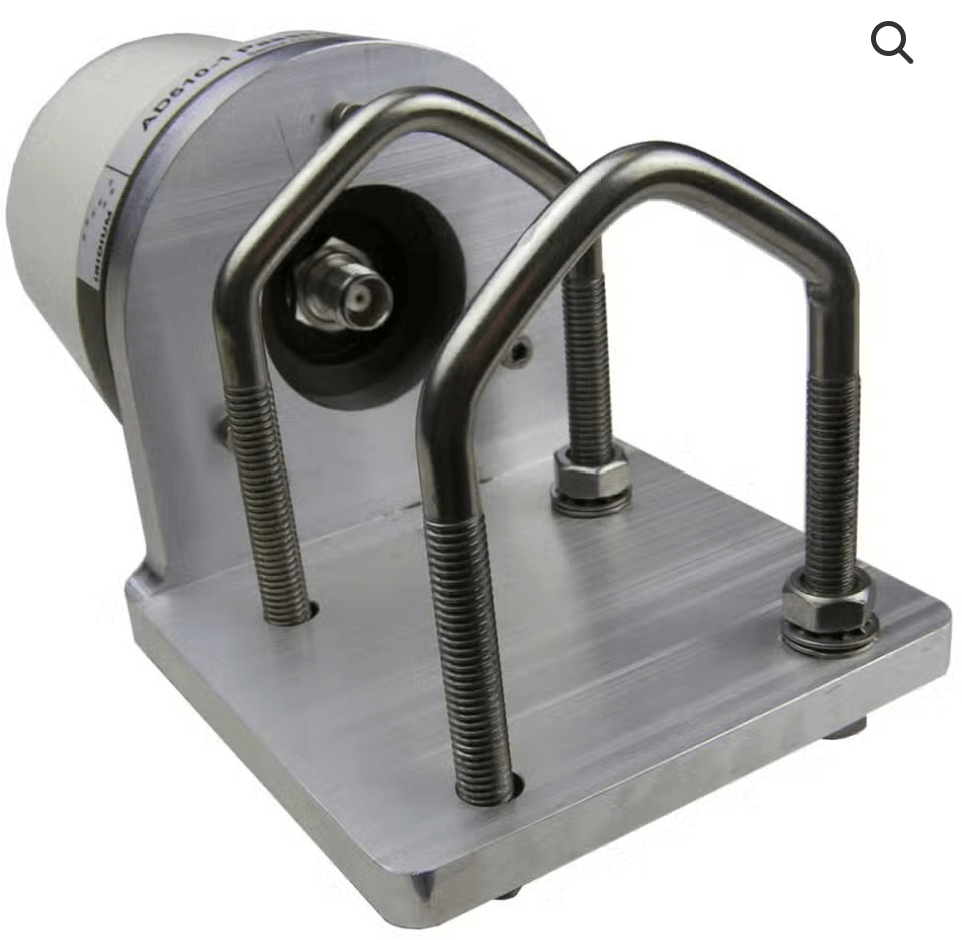

The bracket provided with each antenna can be attached to vertical or horizontal spars, up to 60 mm in diameter, using the U bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC/N type on the underside of the antenna.
Overview
Provides superior performance for external mounting in harsh or marine environments.
The radome is 4 mm GRP/Polyester mix whilst the base is milled from aluminium and hard anodised giving an attractive green finish, which is mechanically resilient and resistant to corrosion.
The unit is designed for free air mounting and no ground plane is required.
The bracket (AD510-2) provided with each antenna can be attached to vertical or horizontal spars up to 60mm in diameter using the U bolts provided.
Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC/N-type on the underside of the antenna.
Features:
AD510-1 has a RHCP radiation pattern over the Iridium band and should be mounted to give an unobstructed view of the sky from horizon to horizon. The bracket (AD510-2) provided with each antenna can be attached to a mast or spar up to 60mm in diameter using the V-bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable from the TNC (or optional N type connector) on the underside of the antenna.
SPECIFICATIONS
AD510-2 Mounting Bracket
- Heavy Duty Marine Alloy
- Vertical or Horizontal mount positions.
- Supports Pipe/Pole/Mast up to 60 mm Diameter.
- Supplied complete with Stainless U bolts and nuts
Antenna Dimensions and weight
- Ø87 x H100mm
- Weight(incl bracket): 1.0kg(2.2lb)
Antenna Technical specifications
- Operating Temperature -40°C to +85°C
- Connector(part# AD510-1): TNC-Female, base exit
- Connector(part# AD501-4): N-Female, base exit
- Impedance 50 Ohm
- VSWR : <2:1
- Frequency 1610 – 1630 MHz
- Polarisation RHCP
- Cable loss: 1.5 db @ 1626 MHz
