ASE-MC07G ASE Iridium ComCenter II-200G, Data ONLY, Fixed and Maritime, GPS
DATA ONLY, GPS ENABLED – This is a lower-cost, reduced features model that eliminates the voice features and targets data-only applications. The Ethernet port allows network connectivity for global satellite data transfer and remote system control. Perfect for data Resilience and backup, M2M and VSAT diagnostic control.
$4,900.50 Inc. GST

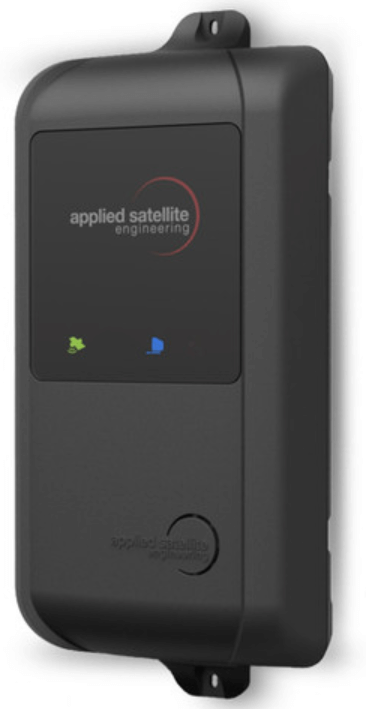

ASE MC07 ComCenter II Iridium Fixed Terminal – Data Only, with GPS
The ASE ComCenter II MC07 fixed terminal brings your Iridium Satellite link indoors to provide secure Data and SMS texting communications anywhere in the world at a low-cost, low-maintenance, secure access to remote networks and equipment.
This is a lower-cost, reduced features model that eliminates the voice features and targets data-only applications. The Ethernet port allows network connectivity for global satellite data transfer and remote system control. Perfect for data Resilience and backup, M2M and VSAT diagnostic control.
This Comcenter includes an Ethernet interface allowing IP-addressable network connectivity for global satellite data transfer and remote system control. Ethernet connectivity brings you unprecedented new features like ASE SatChat, SMS messaging and M2M Port Forwarding.
These versatile and enhanced voice and data features make the ComCenter II the ideal solution for a wide variety of remote communications applications.
ENHANCED DATA

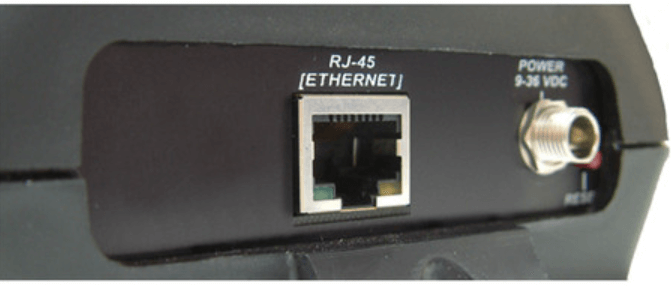

- Ethernet Connectivity- Provides versatile IP-based satellite data interface. IP Port Forwarding for machine-to- machine (M2M) and VSAT Diagnostics
- Configurable Periodic Reports- Ensure and enhance overall system resilience.
- GPS Option – Comes with configurable periodic reports to provides low-cost tracking solution.
- Third Party Apps- E-mail, weather info, blogs.
ENHANCED ADD-ONS
- ComCenter has a high-visibility graphical display for setup, troubleshooting, programming, and operation.
- SMS TEXTING with Embedded ASE SatChat. Crew calling and scratch card support
- 10-32VDC input range supports power systems on most vehicles and vessels. Includes a universal AC/DC power adapter (100 to 240VAC, 47 to 63 Hz), and a DC vehicle cigarette power adapter.
Box Contents for ASE ComCenter Model MC07 and MC07-G (GPS enabled version)
- ASE Comcenter MC07G terminal, GPS Enabled
- Universal AC/DC Power Adapter
- Installation CD-ROM with User’s Manual and Quick Start Guide
- Embedded ASE SatChat Text Messaging
ASE-MC07 / ASE-MC07G ComCentre II
TECHNICAL SPECIFICATIONS Model # MC07 or MC07G
Electrical Specifications
Operating Voltage 10 – 36 VDC Power Consumption 4 Watts (Idle/Standby) 9 Watts ( Avg Active) 15 Watts (Peak) Interface Cable Lengths (Max) Ethernet (Data) 120m (400ft)
Environmental Specifications
Operating Temp Range -30ºC to +60ºC Exposure Indoor, protected location per IEC 60945 Mechanical Specifications Dimensions (L)22.8cm x (W)12.7cm x (H)6.3cm (L)9.0in x (W)5.0in x (H)2.5in Weight 0.9kg (2.0 lbs) Mounting Wall Mount Internal
GPS Specifications (G Models Only)
Signals Tracked Tracking L1, C/A Code, AGPS, SBAS, (WAAS, EGNOS) Frequency 1575.42 MHz Channels 16 Update Rate Up to 4 Hz Report Rate Configurable Accuracy Horizontal Position < 2.5 m (1 – Sigma) < 2.0 m (SBAS) Velocity < 515 m/s Altitude 10,000 m (33,000 ft) max
Brand
ASE
Box Contents for ASE ComCenter Model MC07 and MC07-G (GPS enabled version)
- ASE Comcenter MC07 terminal
- Universal AC/DC Power Adapter
- Installation CD-ROM with User’s Manual and Quick Start Guide
- Embedded ASE SatChat Text Messaging
