B4-309U Intellian i3 Global Satellite TV Antenna System, 37cm Ku-band
Compact but Powerful, Marine Satellite TV Antenna System
$8,228.00 Inc. GST
B4-309U Intellian i3 Global Satellite TV Antenna System, 37cm Ku-band
Superior Tracking Performance
37cm (15inch) Reflector Ku-band Satellite TV System
The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft).
The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today and the built in GPS aids in initial satellite acquisition.
KEY FEATURES
Fully Automated System
Automatic satellite search and identification. 2-axis step motors to stabilize the pedestal.
Compact Size
37cm antenna reflector diameter Light antenna weighs less than 9kg.
Enhanced Antenna
Highly efficient parabolic antenna enables 50dBW of minimum EIRP. RHCP / LHCP, Vertical / Horizontal polarization
Wide Range Search (WRS) Algorithm
Competitor methods search for the narrow-bandwidth of the main lobe. However Intellian’s exclusive WRS searches for the wide range of side lobes and jumps up to the main lobe, providing faster satellite acquisition.
DVB-S2 Signal Identification
High speed identification employing DVB-S2 Decoder.
Dynamic Beam Tilting (DBT) Technology
A high-speed sub-reflector rotates off axis, checking signal strength at 50 times per second and compensating the tracking direction. Less movement of the main-reflector means less noise and extends the product life.
New Type Antenna Control Unit
• Intuitive controls with a digital information display on the ACU
• Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
Built-in GPS and NMEA 0183 Interface Port The i3 includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.
Smaller Size with Better Performance
Compact and lightweight form-factor antenna delivers high performance.
iQ²: Quick&Quiet℠ Technology
iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort when alongside or out at sea.
Works with All Providers
Compatible with leading Ku-band satellite TV service providers around the world.
Triple Sat Function
Auto satellite switching function for three satellites as used by Dish Network or Bell TV in North America for a seamless viewing experience.
High Performance
- 37 cm (15in) diameter parabolic antenna for reception of Ku-band satellite signals
- Circular or linear polarization depending on region and LNB selected
- Built-in HD module for Ku-band HD TV reception where available

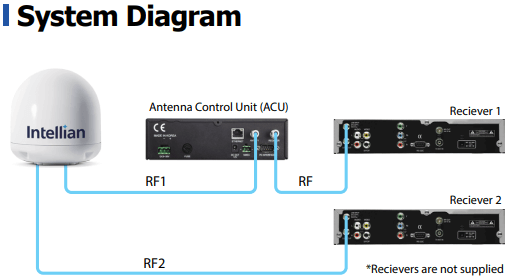

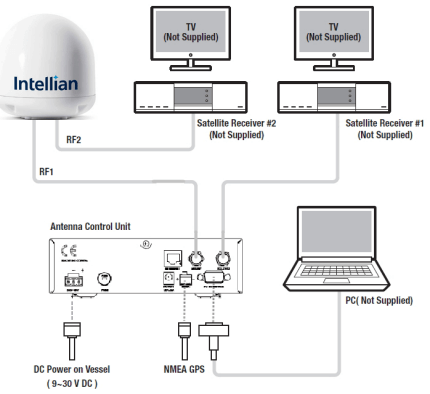

Multiple Receiver Capability
- Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
- Using the MIM a master receiver can be selected to control the target satellite
- In North America, when using Dish Network or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home
