BC-247.201 Icom SAT100 Docking Station Kit Bundle Pack
$1,348.60 Inc. GST
MB501M.001 Icom Mount, Bracket for IP501M/SAT100M
$204.60 Inc. GST
BC-247.011 Icom SAT100 Docking Station
$712.80 Inc. GST

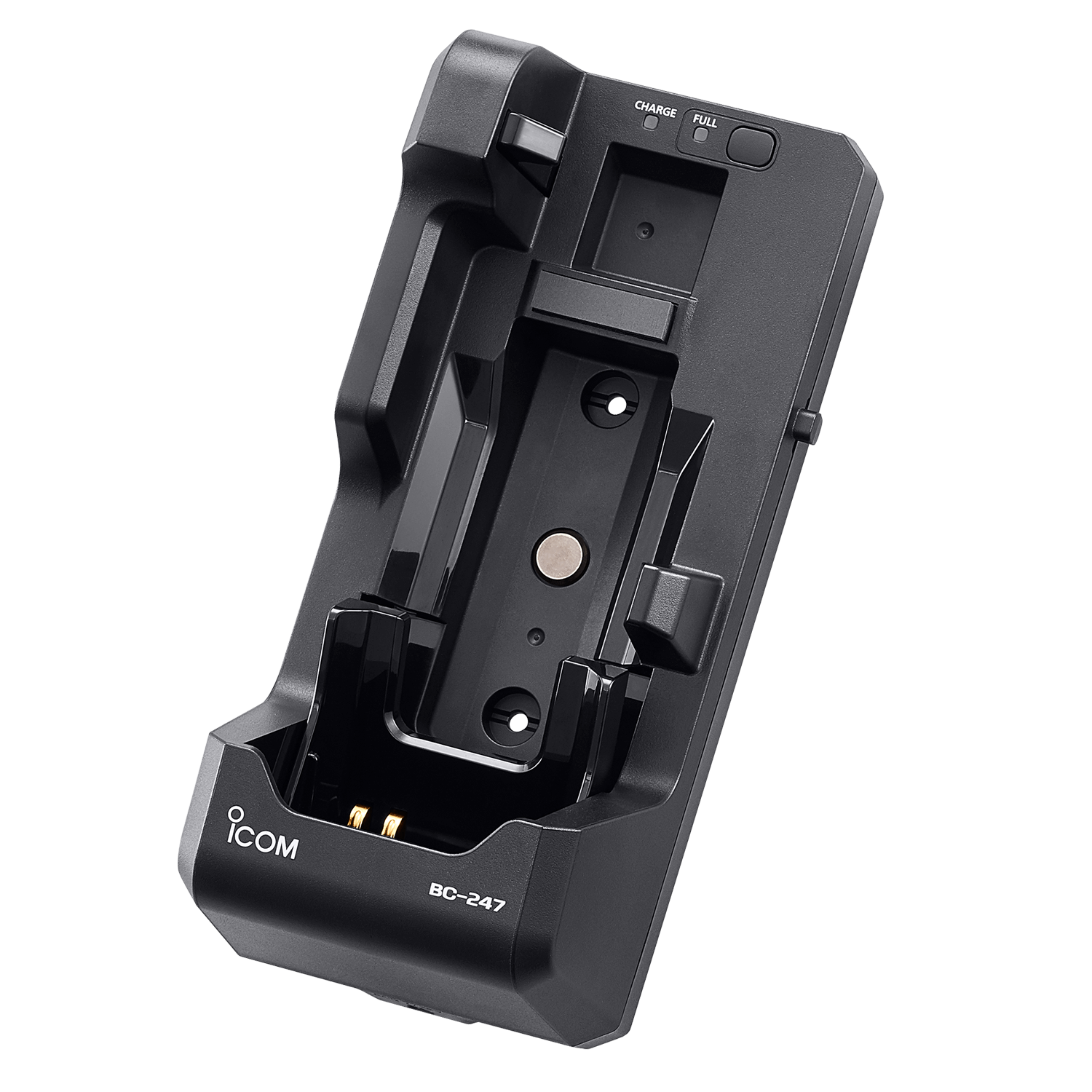

BC-247.011 Icom SAT100 Docking Station

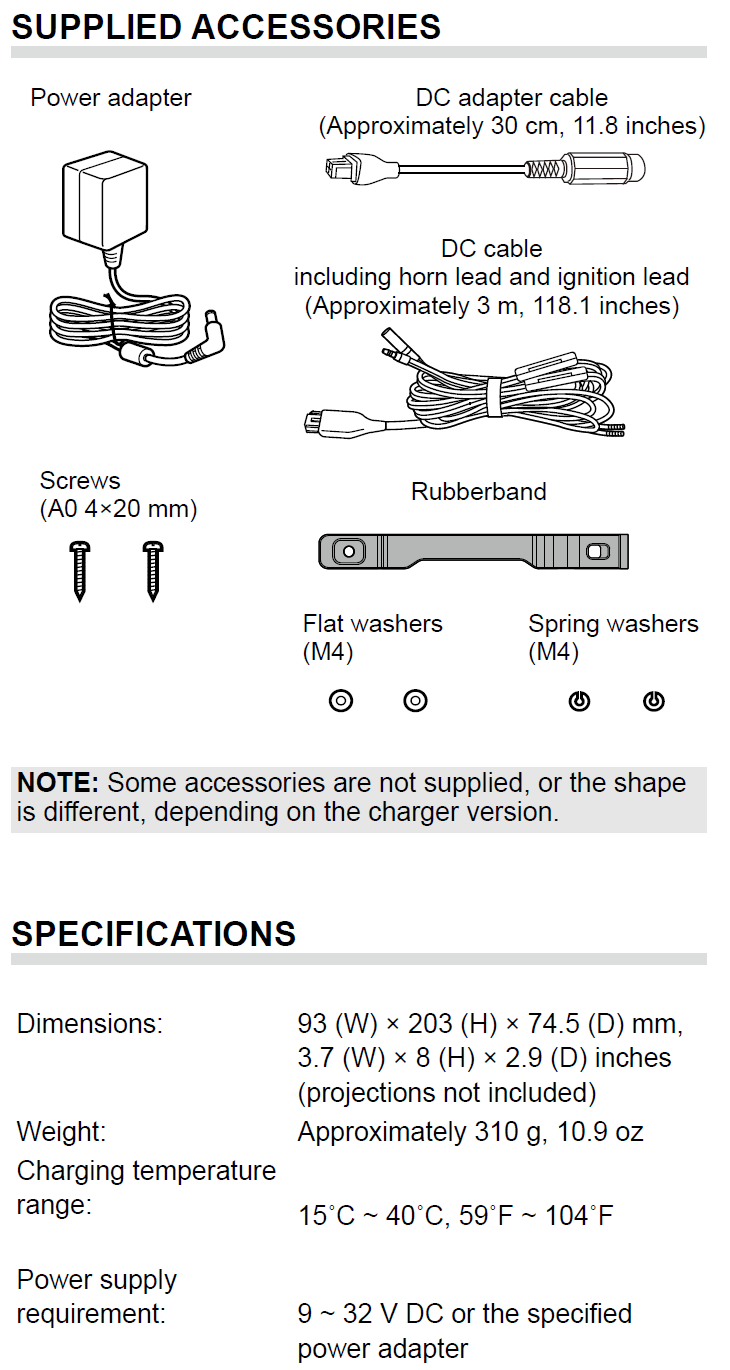

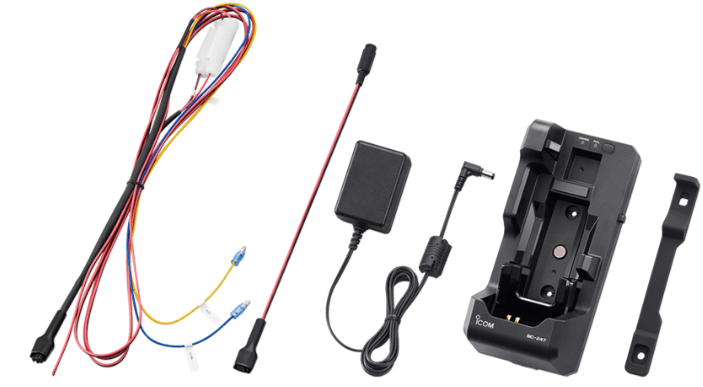

This Kit Includes:
- BC-247 Cradle/Docking Station
- AC/DC Power adapter with lead
- DC adapter cable (Approximately 30 cm, 11.8 inches)
- DC power cable including vehicle horn lead and ignition lead (Approximately 3m(118.1in)
- Sundry Installation hardware: Rubber band, Screws(M4), Spring washers(M4), Flat Washers(M4)
NOTE: Some accessories are not supplied, and/or the shape/description is different, depending on the charger version.
Specifications
| Power Supply Voltage | 13.8 V DC / 27.6 V DC |
| Charging control voltage | Normal charge: 7.78 V ± 0.15 V
Full charge: 8.30 V ±0.15 |
| Charging Current | Reguler charge: 750 mA
Preparation charge: 300 mA |
| Charger Timer | Reguler Charge: 8 hr 20 min – 12 hr 35 min
Preparation charge: 24 min – 36 min |
| Size | 93.0 (W) x 74.5 (H) x 203.0 (D) mm;
3.7 (W) x 2.9 (H) x 8.0 (D) in |
| Weight | 310 g; 10.9 oz |
