The Barrett 419 Automatic Tuning Mobile HF Antenna (P/N BC41901) is specifically designed to interface with Barrett
2000/4000 series HF transceivers and OEM HF transceivers.
Providing a frequency coverage of 1.5 to 30 MHz, the Barrett 419 features rapid tuning (typically less than 1.5 s, less than
200ms from memory), low power consumption capabilities and an in-built GPS receiver (compatible with Barrett 2000
and 4000 series transceivers).

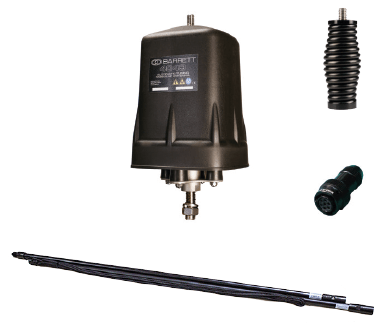

This pack Includes:
- Barrett 419 Automatic tuning mobile HF antenna BC404900
- Mil-STD Connector CN-50069
- Fibreglass split whip top section and bottom section 2019-00-03
- Standard spring black 2019-00-04
Features:
- 1.5 – 30 MHZ Tuning Range
- Compact Size
- 150 W
- Suits Barrett 2050 HF SSB transceivers and
- OEM HF transceivers
- Fast tuning – typically < 1.5 seconds
- Memory Tune < 200ms
- Extremely robust Nylon-66 glass-filled casing
- Two piece MIL-SPEC whip and spring
- Meets MIL-STD 810G for shock, temperature, vibration and dust
- Built in GPS
Note:- – Coaxial/control cable not included. See brochure for available cabling.
-For use with a 2050 HF Transceiver, Control Cable to 2050 Transceiver Adaptor (P/N BCA201915) is required unless replacing a 2019, in which case, the existing 2019 cable is compatible.

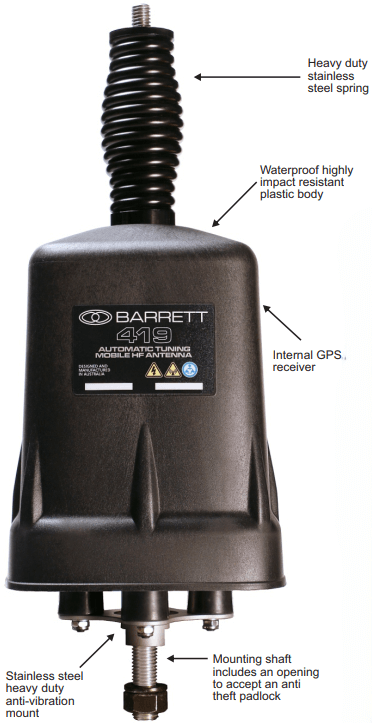

The active tuning elements of the antenna are housed in a waterproof, high-impact resistant moulding. This housing
incorporates a heavy duty anti-vibration mount at its base.
Even with its rugged construction, the Barrett 419 weighs only 3.65kg.
The Barrett 419 is supplied with a two piece fibreglass MILSTD whip and spring. An optional NVIS Kit (P/N 2019-01-10) is available in the form a single flexible whip section of 3.5 metres.
The main antenna body has RF and control connectors.
The 419 is supplied as standard with a Mil-Std connector (P/N CN50069) for control and DC connection to an OEM HF
transceiver.
If the 419 is to be used with a Barrett 2050 HF SSB transceiver, a Control Cable to 2050 Transceiver adapter (P/N
BCA201915) and a Barrett Coaxial/Control cable will be required.
Three versions of the Coaxial/Control cable are available, 6 metre P/N 4019-00-02, 10metre P/N: 4019-00-05
and 30metre P/N 4019-00-07.
