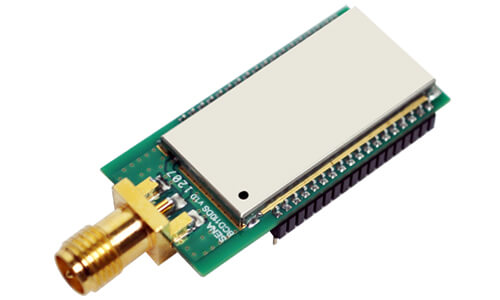

BCD110B-DS-SPP Sena Bluetooth embedded OEM module DIP type, Class 1 with chip SMA connector
The BCD110B supports Class1 Bluetooth transmission level for longer communication distance typically ranges from 200m up to 1000m at line-up sight.
The BCD110B supports UART, USB, I2C, PCM, PIO interfaces for the communication with the OEM products.
BCD110B – APPLICATIONS
– High-speed data transceiver systems for long distance communication
– PCs/Personal Digital Assistants (PDA) – Bluetooth USB dongle
– Bluetooth serial dongle – Bluetooth access points – Industrial automation devices
– Automotive applications – Medical Systems
– Remote metering devices
– POS (Point-of-sales) devices
The BCD110B is provided with Bluetooth v2.0+EDR compatible firmware runs internally for SPP (Serial Port Profile) applications by default. The SPP firmware supports up to 4 simultaneous multiple connections and is designed to work out-of-box for real world SPP applications such as POS (Point-of-sales), industrial automation, remote metering and other various applications. Optionally, the BCD110B can be supplied with only software stack up to HCI level so entire Bluetooth stack runs on the host side for the application such as USB dongles for computers or OEM manufacturers can even develop and embed their own firmware into the BCD110.
The BCD110B is fully qualified with Bluetooth v2.0+EDR specification so OEM manufacturers can save cost and time for overall OEM product certifications, which makes the BCD110 ideal solution for larger volume and cost sensitive applications.
