RST620-FR Beam TranSAT Satellite System, Factory Refurbished, Full Warranty (Discontinued)
RST620-MD Manufacturers Full Warranty Demo Iridium Beam TranSAT Fixed Satellite Hands Free System
The Beam Fixed In-vehicle Telephone provides full hands-free operation to the driver.
The terminal comes complete with an intelligent handset that can be easily located close to the driver.
The In-vehicle unit supports all Iridium Voice and Data Services and comes complete with a DB9 Data connection for Dial up or Direct Internet Data at up-to 10-12 Kbps.
Supports optional Emergency Track Alert
Ideal expandable communication application for any Vehicle, 4×4, SUV, Bus, Truck, Train, Machinery, Marine or Aircraft
$4,888.40 Inc. GST
Out of stock
RST620-MD Manufacturers Full Warranty Demo Iridium Beam TranSAT Fixed Satellite Hands Free System
The Beam TranSAT Fixed Satellite Telephone provides a complete hands-free voice and telephone for a wide range of mobile and fixed site applications where easy access to reliable voice and data communications is required.
The terminal provides a compact fully functioned user handset and supports both hands-free and privacy modes of operation, automatically switching between either mode with the handset in or out of the cradle.
The system can also be used as a permanent non hands-free solution simply by not connecting the microphone.
The loud ring indication through the speaker system makes it an ideal installation in a noisy environment.
RST620-MD
Manufacturers Demo Iridium by Beam TranSAT Fixed Hands Free Satellite Telephone
Terminal Features
. Compact intelligent handset
. Sturdy hang-up cradle
. Compact Installation
. Convenient serial data port
. Private or Hands-free mode
. Echo Cancellation
. Superior voice quality
. 10-32V DC power input
. SMS / SMSMO
. Tracking & Monitoring Capable
. Intelligent Processor & Interface
. Support external ringer/light
. Auxiliary & constant power
. Fully Certified
. Easy to install
IRIDIUM Network Service Features
. Global coverage pole to pole
. Low cost airtime rates
. No regions or zones
. Crew calling service
. Pre or post paid
. Itemised billing
. Support all data services
. Support all Voice services
. Support Iridium Fax terminal
RST620
Iridium by Beam TranSAT Fixed Hands Free Satellite Telephone
POWER SPECIFICATIONS
Rated Input: 11-32V DC
12V DC Stand-By(inc handset) Average Power Consumption: 0.33A
12V DC Transmit(inc handset) Average Power Consumption: 0.63A
24V DC Stand-By(inc handset) Average Power Consumption: 0.14A
24V Dc Transmit(inc handset) Average Power Consumption: 0.23A
ENVIRONMENTAL
Operate Temp. Range*: PotsDOCK Extreme -55°C to +55°C(+5°F to +131°F)
Operating Humidity Range: < 85% RH non-condensing Storage Temperature: -30°C to +85°C(-22°F to +185°F) CONNECTORS / INTERFACES / LED’S Transceiver: D25 Intelligent Handset: RJ45 DPL BUS Data Port: RS232 Serial Interface Speaker: 3.5mm mono Microphone: 2.5mm mono Constant power: Screw connector Auxiliary power: Screw connector Horn Alert: Screw connector Audio mute: Screw connector CERTIFICATIONS IEC60945 Electrical Safety EMC Compliance *Independent Aeronautical certification MUST be gained prior to installation to any Aircraft.
Brand
Beam

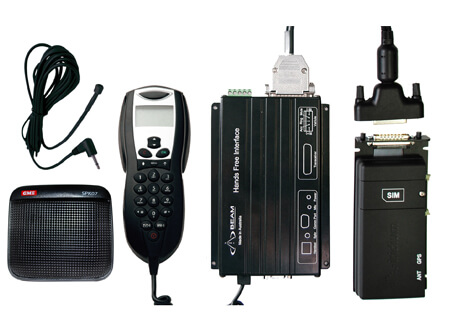

“Whats in the Box?” RST620-MD
Manufacturers Full Warranty Demo Iridium RST620 Transceiver(9522B module) Main terminal
RST970 Intelligent Handset
Hands-free & power interface
Loud Speaker w/cable
Noise Cancelling Microphone w/cable
Transceiver – Cradle interface cables
DC Power cable loom,
Mounting Hardware adhesive, velcro etc
Support CD and Beam Management System, AT Commands,
•
Installation Guide and User Manual
