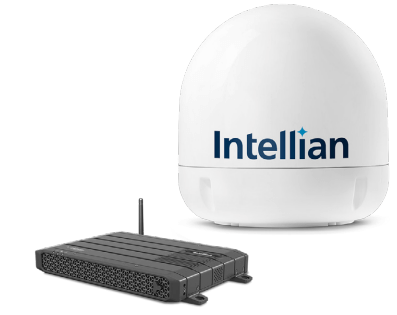

C1-70-A0HR Intellian C700 Iridium Certus, 19in Rack Mount System, Winterized, (Maritime)
$17,090.70 Inc. GST
C1-70-A0HR Intellian C700 Iridium Certus, 19in Rack Mount System, Winterized, (Maritime)
Specially designed for extreme environments
- Designed for extreme environments of harsh cold weather regions
- Extended operational temperature range (-50°C ~+55°C )

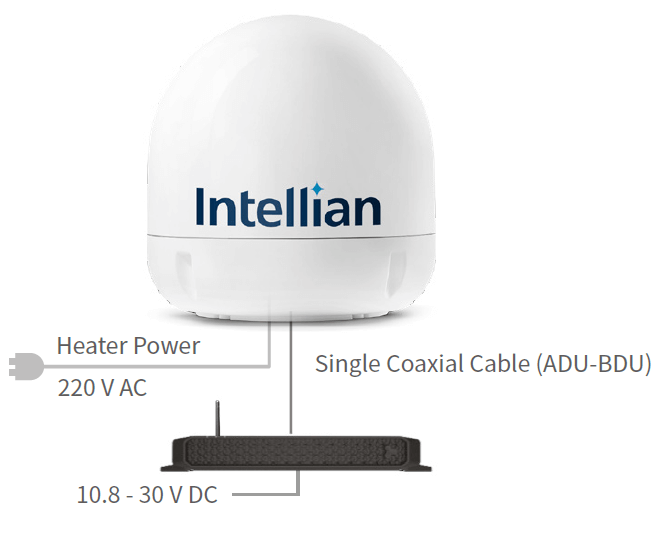

- Heating device and required kit as standard
- Officially type approved by Iridium
- Russian Ships Classification certified
The system arrives in three separate packs, being:
Pack# 1 of 3 – ADU Pack Includes –
- ADU Unit(Antenna)
- Antenna RF Cable, LMR200 25m*(refer extended lengths guide below)
- ADU Bolt Kit, an
- Antenna Mounting Template, an
Pack# 2 of 3 – BDU Pack includes –
- BDU Unit
- Wi-Fi Antenna
- MC-0001 AC-DC Power Supply, with Cables for US and EU AC wall outlets.
- Ethernet Cable
- BDU Bolt Kit
- Terminal Block
- Quick Installation Guide
Pack# 3 of 3 – BDU Pack includes –
- 19-inch Rack Assembly
- Rack Mount Bolt Kit
- AC Power Cord
- AD-DC Adaptor
- MC-0002 Rackmount Plate
- Cable Tray
*Extended cable lengths guide
- LMR200 0.326 dB/1 m 35 m Installation 12.7 mm (0.5 in.)
- LMR300 0.199 dB/1 m 60 m Installation 22.2 mm (0.88 in.)
- LMR400 0.1216 dB/1 m 100 m Installation 25.4 mm (1 in.)
- In all cases the below is paramount –
- Connector type: TNC-male,
- Optimal tightening torque: 1.5 N-m,
- Maximum DC resistance of RF cable: 1.3 Ω,
- *Maximum RF loss at 900MHz: 13.5 dB including connector
SYSTEM HIGHLIGHTS
• Designed for extreme low temperature conditions, like the polar regions. (ADU operating temp. -50℃ ~ + 55℃)
• H2 antenna amplifier for 352 Kbps uplink service
• Excellent low elevation angle performance handling heavy ship motion
• Easy installation and simple configuration
• Single coaxial cable antenna connection
• Built-in firewall and user threat management
• GMDSS ready
• Three simultaneous high quality voice lines

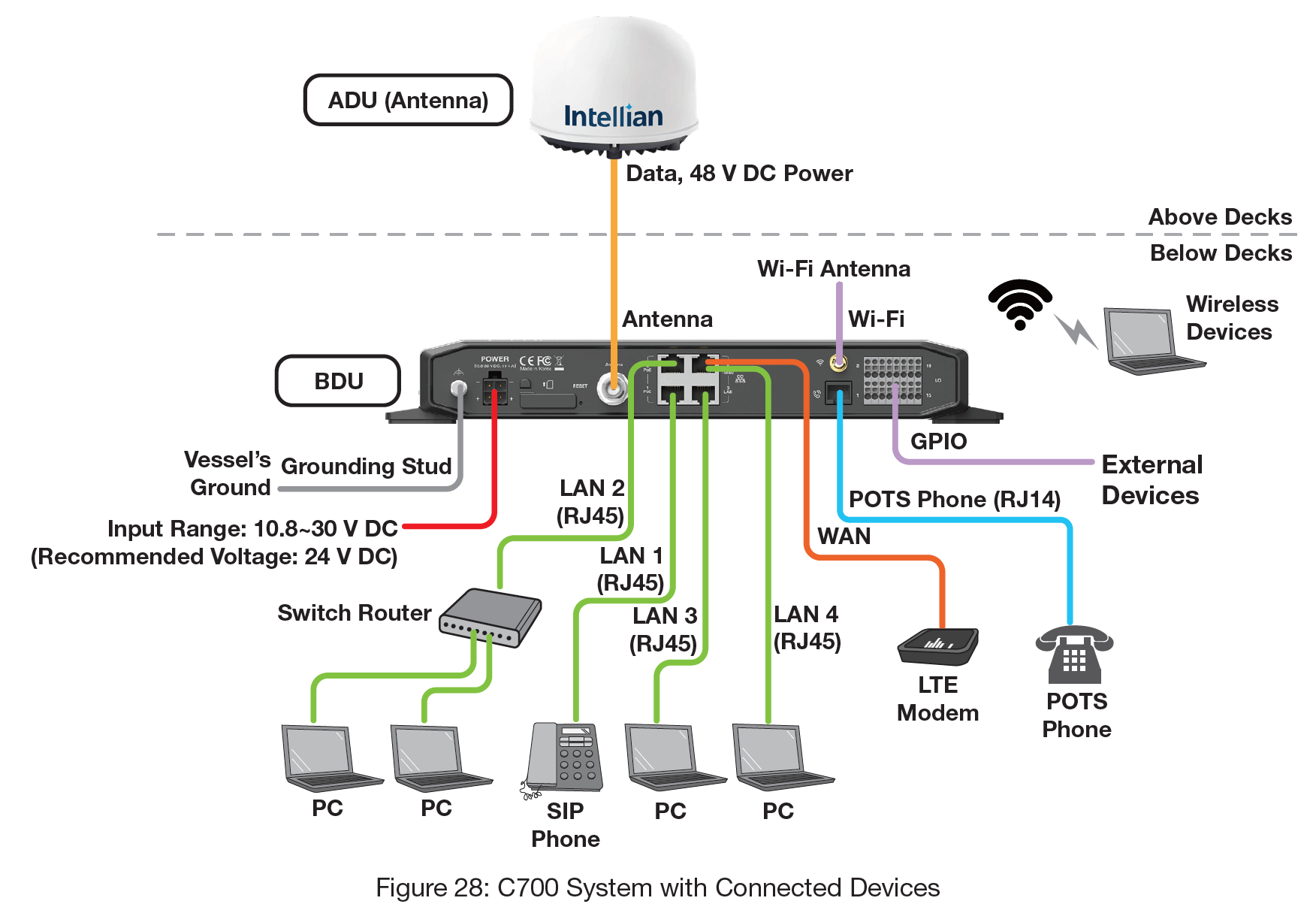

• 4-Port Ethernet (LAN) PoE and WAN
• Connection up to 16 SIP phones with Soft PBX function
• Designed for minimum 10-year operational lifetime
• 3 year global warranty – parts and labor
• Designed for extremely harsh cold weather regions
The most technically advanced Iridium Certus maritime terminal
The advanced performance of the C700 provides customers across all markets the flexibility to deploy the C700 as the primary communication antenna or as a companion to a VSAT system for seamless redundancy. The Intellian C700 is the first Iridium Certus terminal to be approved for the Japanese maritime market.
All-in-one terminal
- Built-in Analog Terminal Adapter (ATA) for connecting analog phones and onboard PABX
- Built-in Power-over-Ethernet (PoE) for powering IP devices, SIP phones, wireless access points
- Built-in private automatic branch exchange (PABX) telephone switching system
- Built-in router supporting multiple users of the terminal
- Built-in firewall for cyber secure connections
- Built-in WAN for least-cost routing of data traffic via 3G/4G/5G or similar services
- Built-in Wi-Fi
- GMDSS Ready*
Best in class performance
- Using a 12 element patch phased-array antenna for maximum coverage
- High power H2 antenna amplifier for 352 Kbps uplink speed
- Excellent performance during any ship motion and low satellite elevation angles
- VSAT companion for out of band management, supporting multiple users
- Optimal satellite and beam handover ensuring seamless voice and data connectivity
SPECIFICATIONS
Specs – Above Decks Unit (ADU)

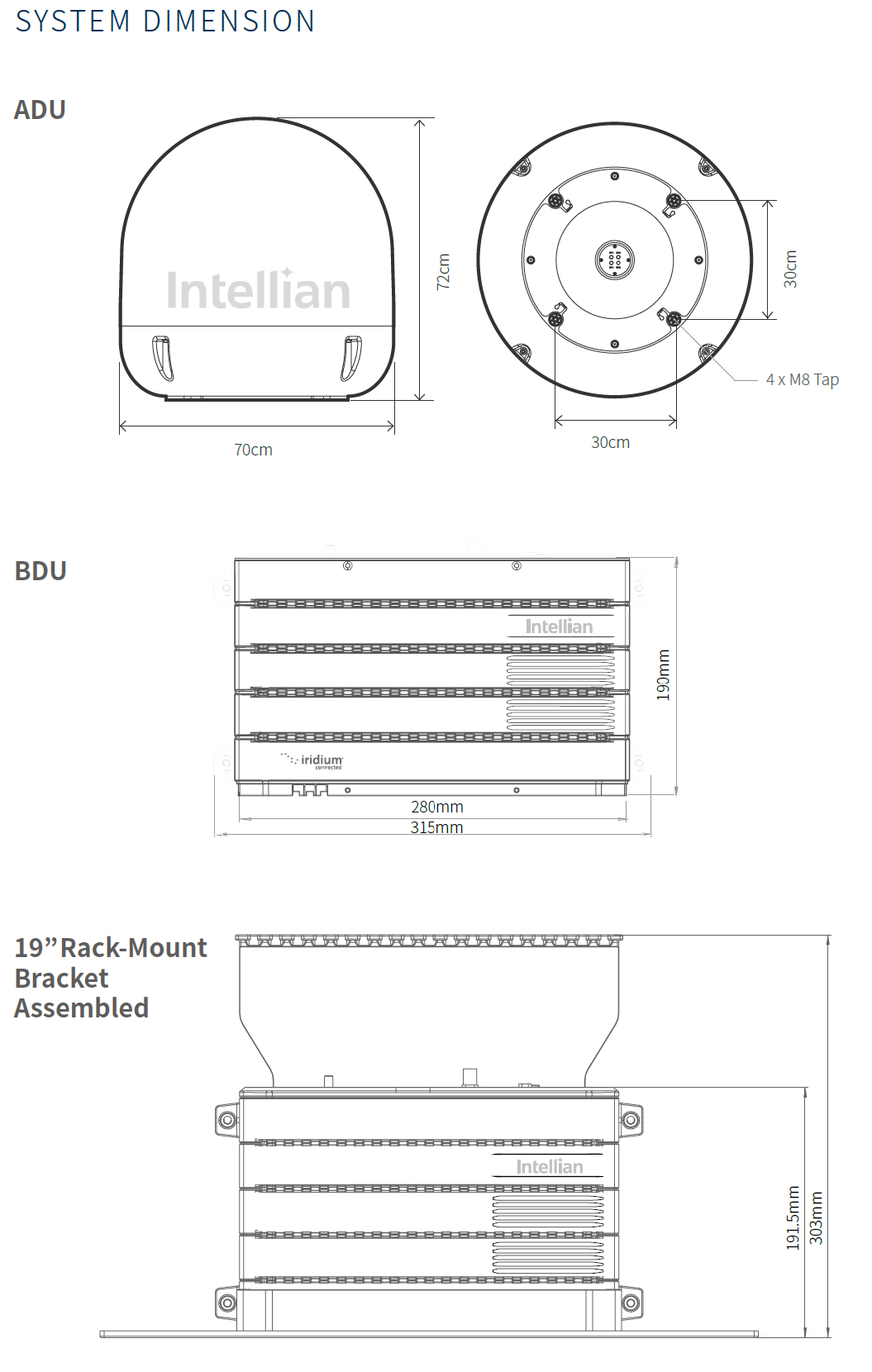

ADU Height 700 x 720(27.5 x 28.3in)
ADU Weight 21.0kg (46.3lbs)
Ship’s Motion
Roll ±20° at 0.4 Hz and ±15° at 0.33 Hz
Pitch ±20° at 0.45 Hz and ±30° at 0.25 Hz
Yaw ±20° at 0.45 Hz and ±10° at 0.2 Hz
Turning Rate 12°/sec
Rx
Frequency 1616 MHz ~ 1626.5 MHz
Gain 9.2 dBi
Tx
Frequency 1616 MHz ~ 1626 MHz
Gain 9.2 dBi
Polarization RHCP (Rx and Tx)
ADU to BDU Cable (Antenna Cable) Single Coaxial Cable
*Extended cable lengths guide
- LMR200 0.326 dB/1 m 35 m Installation 12.7 mm (0.5 in.)
- LMR300 0.199 dB/1 m 60 m Installation 22.2 mm (0.88 in.)
- LMR400 0.1216 dB/1 m 100 m Installation 25.4 mm (1 in.)
- In all cases the below is paramount –
- Connector type: TNC-male,
- Optimal tightening torque: 1.5 N-m,
- Maximum DC resistance of RF cable: 1.3 Ω,
- *Maximum RF loss at 900MHz: 13.5 dB including connector
Specs – Below Decks Unit (BDU)
BDU Size 315 x 190 x 42 mm (12.4″ x 7.48″ x 1.655″)
BDU Weight 1.5 kg (3.3 lbs) [stand-alone type]
LED Indicator 3 LEDs for Power, Satellite link, and Event
GNSS GPS, GLONASS, Galileo
Wi-Fi 802.11 b/g
Ethernet RJ45 LAN Ports (4 ea) including PoE Ports (2 ea)
Analog Phone (POTS) RJ14 Ports (1 ea)
I/O 16 pins GPIO
Wireless 1 Wi-Fi (SMA Reverse Polarity)
Web Interface Embedded in BDU, available by Ethernet or Wi-Fi
Input Power 10.8 ~ 30 V DC
Power (max) 120 W
Brand
Intellian
C1-70-A0HR Intellian C700 Winterized Maritime Terminal, Includes:
- Above Deck Unit(Heated)
- Below Deck Unit
- 25m LMR200 RF Cable
- 1m DC Power Cable
- 1m Ethernet Cable
- AC/DC Adapter & Cable
- 19” Rack Mount Bracket with Cable Support
- Installation Guide (+various sundries, e.g., washers, bolts, mounting template, etc.)
