CP-8832-EU-K9= Cisco 8832 Conference IP Phone, Base Spare In Charcoal Color for Apac Emea
$2,802.78 Inc. GST

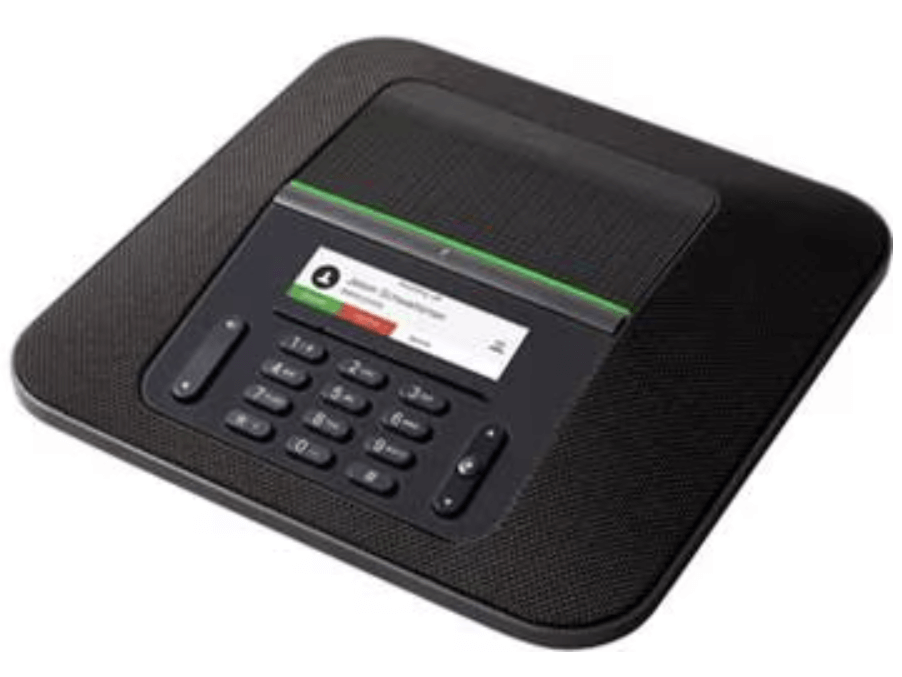

CP-8832-EU-K9= Cisco 8832 Conference IP Phone, Base Spare In Charcoal Color for Apac Emea
Overview
The Cisco IP Conference Phone 8832 enhances people-centric collaboration by delivering easy-to-use audio conferencing with astounding voice quality and clarity. Newly developed microphones and loudspeakers provide the richest sound of any conference phone on the market. Our unique acoustic design includes a “studio-monitor” full-range speaker. This loudspeaker architecture provides a dynamic, detailed sound with low distortion and low-frequency clarity, making conferencing an in-person experience with exceptionally clear and natural audio quality.
The Cisco IP Conference Phone 8832 provides a simple, flexible, scalable solution that meets the challenges of the most diverse rooms. With the base unit alone, it provides 360-degree coverage for any 20×20-foot room and up to 10 participants. With the optional wired extension microphone kit, it covers any 20×34-foot room and up to 22 participants. With the optional wireless extension microphone kit (using Digital Enhanced Cordless Telecommunications [DECT] technology), it covers any 20×40-foot room and up to 26 participants. With a daisy-chain configuration of two 8832 units along with the optional wireless extension microphone kit, it covers up to a 20×57-foot room and up to 42 participants. It is ideal for executive offices, conference rooms, and boardrooms.
The 8832 unit has a sleek form by using approachable materials for a differentiated, modern look and feel. The key design elements include the following:
● 3.9-inch 480×128-pixel color LCD
● Textile cover for soft touch and durability
● Large mute button in the middle of the device for easy access from all angles
● LED indicator above the mute button showing the call status
● Raised edge for easier handling and repositioning on tabletop
● Crisp, precise button tactility
● Single USB-C port on the device to minimize the number of cables on the table (an Ethernet injector is required for any non-Wi-Fi deployment)
The optional wired microphone kit includes two wired microphones with anodized aluminum top housing.
The key features of this conference phone are as follows:
● 360-degree room coverage; base unit alone covers up to a 10-foot microphone pickup range
● Single line with a user experience of multiple calls per line
● Session Initiation Protocol (SIP) signaling
● Codec support, including G.711(u/A), G.729a, G.729ab, iLBC, G.722, and OPUS
● IPv6 support
● Secure Hash Algorithm (SHA)-256 enabled for advanced security features
● Mobile and Remote Access (MRA) support
● Wi-Fi support
● Wired extension microphone support
● Wireless extension microphone support
● Daisy-chain support
● Client Matter Code (CAC) and Forced Authorization Code (FAC) Support
● Compatible with both IEEE 802.3af and 802.3at Power over Ethernet (PoE) Class 3 consumption (both PoE and non-PoE Ethernet injector options are available)
Features and benefits
Table 1 lists the features and benefits of the Cisco IP Conference Phone 8832.
Table 1. Features and benefits
|
Feature |
Benefits |
|
Graphical display |
480×128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
|
Ethernet switch |
10/100 BASE-T via an Ethernet injector |
|
Keys |
The phone has the following keys: ● Four context-sensitive soft key bars
● Two-way navigation bar and select button
● Standard keypad
● Volume-control bar
● Large mute key for ease of access
|
|
IEEE PoE |
IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol – Power over Ethernet (LLDP-PoE) |
|
Call control support |
Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5 |
Licensing
The Cisco IP Phone 8832 requires an Enhanced User Connect License (UCL) in order to connect to Cisco Unified Communications Manager
Product specifications
Table 2 lists the specifications of the Cisco IP Conference Phone 8832.
Table 2. Specifications
|
Feature |
Specifications |
|
Audio |
G.711 a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS Automatic Gain Control Comfort Noise Generation Silence Suppression/Voice Activity Detection Echo Suppression Dynamic Noise Reduction |
|
Acoustics |
Frequency: Speaker, 100 Hz to 20 kHz; microphones, 100 Hz to 12 kHz, ±3 dB Max adjustable volume: 89 dB within 0.5 m |
|
Call features |
● + Dialing
● Adjustable ring tones and volume levels
● Barge
● Call forward
● Call history lists
● Call park
● Call timer
● Call waiting
● Caller ID
● Corporate directory
● Conference
● Hold
● Music on Hold (MoH)
● Mute
● Predialing before sending
● Redial
● Shared line
● Speed dial (Favorites)
● Time and date display
● Transfer
● Voicemail (messages)
|
|
Quality-of-Service (QoS) options |
The phone supports Cisco Discovery Protocol and 802.1Q/p standards and can be configured with an 802.1Q VLAN header containing the VLAN ID overrides configured by the admin VLAN ID. |
|
Network features |
● Session Initiation Protocol (SIP) for signaling
● Session Description Protocol (SDP)
● IPv4
● IPv6
● User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol streams)
● Dynamic Host Configuration Protocol (DHCP) client or static configuration
● Gratuitous Address Resolution Protocol (GARP)
● Domain Name System (DNS)
● Trivial File Transfer Protocol (TFTP)
● Secure HTTP (HTTPS)
● VLAN
● Real-Time Transport Protocol (RTP)
● Real-Time Control Protocol (RTCP)
● Cisco Discovery Protocol
● LLDP (including LLDP-MED)
● Switch speed auto-negotiation
|
|
Security features |
● Secure credential storage
● Image authentication
● Random bit generation
● Manufacturer-Installed Certificates (MICs)
● Secure boot
● SHA-256 enabled for advanced security features
● Ethernet 802.1X supplicant options: Extensible Authentication Protocol – Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol – Transport Layer Security (EAP-TLS)
● Signaling authentication and encryption using TLS v1.2
● Media authentication and encryption using SRTP
● HTTPS for client and server
● Secure Shell (SSH) Protocol server
|
|
Physical dimensions |
10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
|
Weight |
4.07 lb (1.85 kg) |
|
Phone-casing composition |
Acrylonitrile Butadiene Styrene (ABS) textured plastic; Cisco cosmetic class A |
|
Operational temperature |
32° to 104°F (0° to 40°C) |
|
Nonoperational temperature shock |
14° to 140°F (–10° to 60°C) |
|
Humidity |
● Operating 10% to 90%, noncondensing
● Nonoperating 10% to 95%, noncondensing
|
|
Language support |
● Arabic (Arabic Area)
● Bulgarian (Bulgaria)
● Catalan (Spain)
● Croatian (Croatia)
● Czech (Czech Republic)
● Danish (Denmark)
● Dutch (Netherlands)
● English (United Kingdom)
● Estonian (Estonia)
● French (Canada)
● French (France)
● Finnish (Finland)
● German (Germany)
● Greek (Greece)
● Hebrew (Israel)
● Hungarian (Hungary)
● Italian (Italy)
● Japanese (Japan)
● Korean (Korea Republic)
● Latvian (Latvia)
● Lithuanian (Lithuania)
● Norwegian (Norway)
● Polish (Poland)
● Portuguese (Portugal)
● Portuguese (Brazil)
● Romanian (Romania)
● Russian (Russian Federation)
● Serbian (Republic of Serbia)
● Serbian (Republic of Montenegro)
● Simplified and Traditional Chinese (China)
● Slovak (Slovakia)
● Slovenian (Slovenia)
● Spanish (Columbia)
● Spanish (Spain)
● Swedish (Sweden)
● Thai (Thailand)
● Turkish (Turkey)
● Ukrainian (Ukraine)
|
|
Certifications and compliance |
● Regulatory compliance
◦ CE Markings per directives 2014/30/EU and 2014/53/EU and 2014/35/EU ● Safety
◦ UL 60950 Second Edition ◦ CAN/CSA-C22.2 No. 60950 Second Edition ◦ EN 60950 Second Edition (including A11 and A12) ◦ IEC 60950 Second Edition (including A11 and A12) ◦ EN 60950-1 ◦ IEC 60950-1 ◦ AS/NZS 60950.1 ● EMC – Emissions
◦ 47CFR Part 15 (CFR 47) Class B ◦ AS/NZS CISPR32 Class B ◦ CISPR32 Class B ◦ EN55032 Class B ◦ EN 300 386 ◦ ICES003 Class B ◦ VCCI Class B ◦ EN61000-3-2 ◦ EN61000-3-3 ◦ EN61000-4-2 ◦ IEC61000-4-2 ◦ EN61000-4-3 ◦ IEC61000-4-3 ◦ EN61000-4-6 ◦ IEC61000-4-6 ◦ KN22 Class B ● EMC – Immunity
◦ EN55024 ◦ CISPR24 ◦ KN24 ◦ Armadillo Light ● Telecom
◦ AS/ACIF S004 ◦ NZPTC220 ◦ Industry standards: TIA 810 B and TIA 920 A ◦ Industry standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at ● Radio
◦ FCC Part 2.1093 (BT RF Exposure TR) ◦ RSS-102 (BT RF Exposure TR) ◦ RSS-210 ◦ RSS-213 ◦ RSS-247 ◦ EN 300 328 ◦ EN 300 440 ◦ EN 301 406 ◦ EN 50385 (BT RF Exposure TR) ◦ EN 301-489-1 ◦ EN 301-489-3 ◦ EN 301-489-6 ◦ EN 301-489-17 ◦ EN 301 893 ◦ NCC LP0002 |
Table 3 lists the radio specifications of the Cisco IP Conference Phone 8832.
Table 3. Radio Specifications
|
Feature |
Specifications |
|
Antenna Type |
Dipole (On-Board) |
|
Antenna Gain (dBi) |
● DECT(U.S.): -0.4
● DECT(EU): 0.2
● DECT(Japan): 0.2
● 2.4G: 4.1
● 5G: 4.8
|
|
Frequency Band (MHz) |
● DECT(U.S.): 1921.536 – 1928.448
● DECT (EU): 1881.792 – 1897.344
● DECT (Japan): 1895.616 – 1902.528
● 2.4G: 2400.0 – 2483.5
● 5G: 5150.0 – 5250.0, 5250.0 – 5350.0, 5470.0 – 5725.0, 5725.0 – 5850
|
|
Maximum EIRP for Mexico (dBm) |
● DECT(U.S.): 2.13
● 2.4G: 28.08
● 5G: 26.37
|
Product Specifications
Table 4 gives ordering information for the phone and its accessories.
Table 4. Ordering information
|
Product number |
Description |
|
CP-8832-K9 |
Cisco IP Conference Phone 8832 base in charcoal color for North America. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-W-K9 |
Cisco IP Conference Phone 8832 base in white color for North America. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-EU-K9 |
Cisco IP Conference Phone 8832 base in charcoal color for APAC, EMEA, Australia and New Zealand. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-EU-W-K9 |
Cisco IP Conference Phone 8832 base in white color for APAC, EMEA, Australia and New Zealand. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-LA-K9 |
Cisco IP Conference Phone 8832 base in charcoal color for LATAM. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-LA-W-K9 |
Cisco IP Conference Phone 8832 base in white color for LATAM. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-J-W-K9 |
Cisco IP Conference Phone 8832 base in white color for Japan. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-NR-K9 |
Cisco IP Conference Phone 8832 base No-Radio (NR) version in charcoal color. This also includes an adapter along with a 9.8-ft (3-m) USB-C cable. |
|
CP-8832-MIC-WIRED= |
Optional Cisco IP Conference Phone 8832 Wired Microphone Kit in silver color for worldwide use. Kit includes two wired microphones. |
|
CP-8832-MIC-WLS= |
Optional Cisco IP Conference Phone 8832 Wireless Microphone Kit in silver color for North America. Kit includes two wireless microphones, a charging tray, a power adapter and a USB-C cable. |
|
CP-8832-MIC-WLS-E= |
Optional Cisco IP Conference Phone 8832 Wireless Microphone Kit in silver color for APAC, EMEA, Australia and New Zealand. Kit includes two wireless microphones, a charging tray, a power adapter and a USB-C cable. |
|
CP-8832-MIC-WLS-J= |
Optional Cisco IP Conference Phone 8832 Wireless Microphone Kit in silver color for Japan. Kit includes two wireless microphones, a charging tray, a power adapter and a USB-C cable. |
|
CP-8832-DC= |
Optional Cisco IP Conference Phone 8832 Daisy Chain Kit for North America. This includes a smart adapter, a power adapter and three USB-C cables. |
|
CP-8832-DC-EU= |
Optional Cisco IP Conference Phone 8832 Daisy Chain Kit for Europe. This includes a smart adapter, a power adapter and three USB-C cables. |
|
CP-8832-DC-AUNZ= |
Optional Cisco IP Conference Phone 8832 Daisy Chain Kit for Australia and New Zealand. This includes a smart adapter, a power adapter and three USB-C cables. |
|
CP-8832-POE= |
Cisco IP Conference Phone 8832 PoE Adapter Spare for Worldwide. A USB-C cable is included. |
|
CP-8832-ETH= |
Cisco IP Conference Phone 8832 non-PoE Ethernet Adapter Spare for North America. A USB-C cable is included. |
|
CP-8832-PWR= |
Cisco IP Conference Phone 8832 Power Adapter Spare for North America. A USB-C cable is included. |
|
CP-8832-ETH-WW= |
Cisco IP Conference Phone 8832 non-PoE Ethernet Adapter Spare for Worldwide, with configurable Power Clip. A USB-C cable is included |
|
CP-8832-PWR-WW= |
Cisco IP Conference Phone 8832 Power Adapter Spare for Worldwide, with configurable Power Clip. A USB-C cable is included |
|
CP-8832-USB-CAB= |
Cisco IP Conference Phone 8832 USB-C Cable Spare. This is a USB-C cable to connect 8832 phone base and PoE (or ETH, PWR) adapter. |
Here are the recommended ordering options based on the power sources:
● Power over Ethernet (PoE) deployment option: A Cisco IP Conference Phone 8832 PoE Adapter is required.
● Non-PoE Ethernet deployment option: A Cisco IP Conference Phone 8832 non-PoE Ethernet Adapter is required.
● Wi-Fi deployment option: A Cisco IP Conference Phone 8832 Power Adapter is required.
For 8832 purchase, please order the phone PID (for example, CP-8832-K9, CP-8832-EU-K9, CP-8832-NR-K9, etc.) and select one of the above options. The base package includes one of the power sources selected.
For daisy-chain deployment, please order two phone PIDs (for example, CP-8832-K9) and a daisy-chain kit (for example, CP-8832-DC=).
