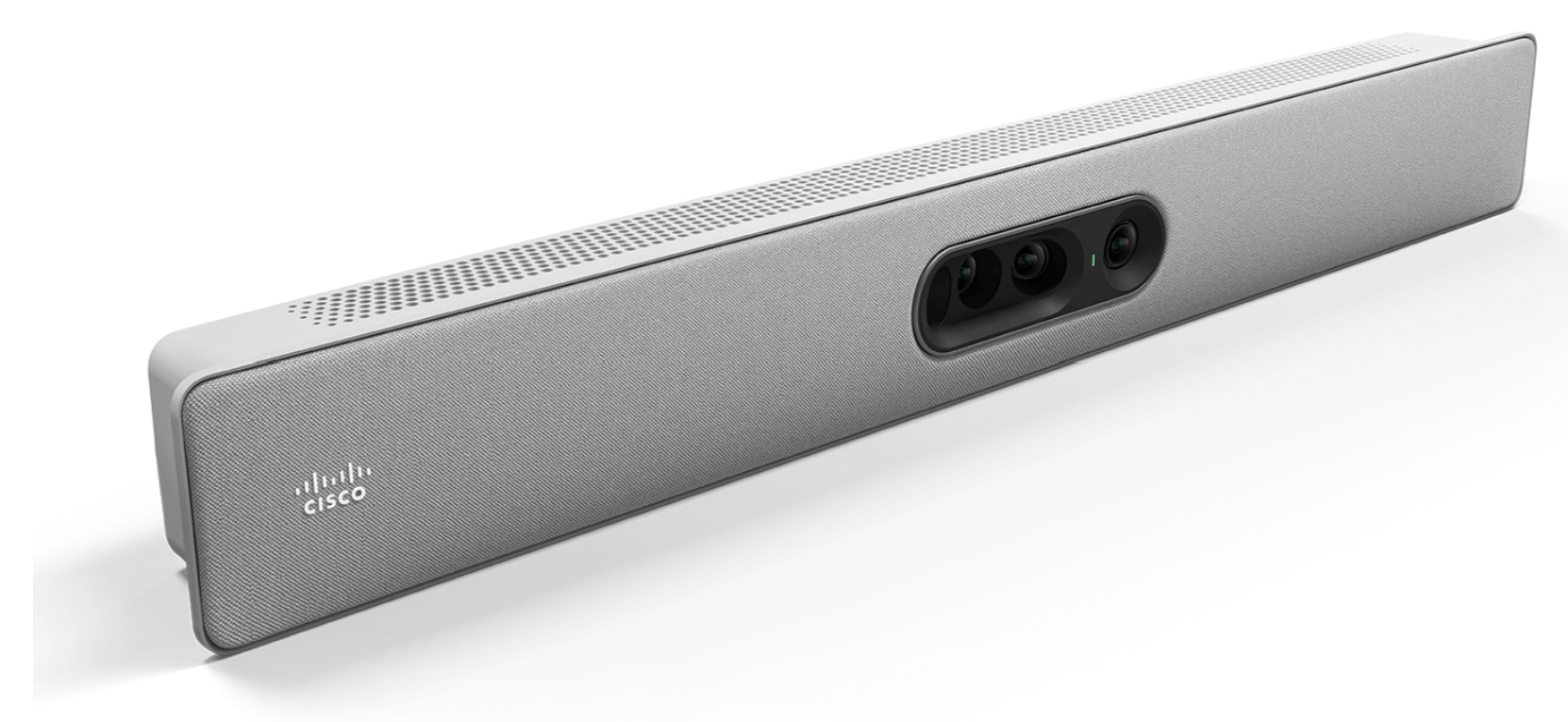

CS-QUADCAM2+ Cisco Quad Camera, First Light (white) Video Bar, SPARE
$15,127.20 Inc. GST

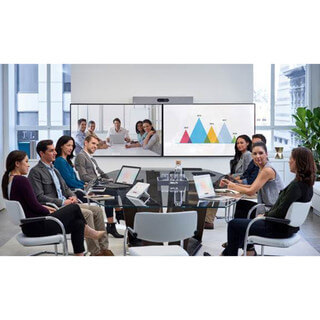

Experience cinematic meetings: Combine the power of the Quad Camera with other Cisco cameras to enable extended speaker views in long conference rooms, intelligent presenter and audience views in auditoriums, and cinematic cross-view* for the ultimate, AI-directed experience.
Ordering Guide:
- First Light(color is White) – CS-QUADCAM2+ (this package)
- Carbon Black(color is Black) – CS-QUADCAM2-C+
Features:
- 4x CMOS image sensors with machine intelligent switching (up to 20MP resolution per sensor)
- The camera generates frames from the 4 sensors simultaneously to provide a single HD output at 1080p
- Video standard: Video over HDMI
- Camera control: Ethernet (LAN)
- Support up to 60 fps
- 1/1.7 CMOS
- 7x zoom (5x native optical zoom with digital zoom enhancement)
- f/2.0 aperture
- 83° horizontal field of view on wide lens
- 50° horizontal field of view on 3 tele-lenses
- Automatic group framing (audio + face detect)
- Speaker tracking
- Frames camera mode: intelligent people framing for equitable views
- 5056 x 3888 pixel resolution
- Auto focus, brightness, and white balance
- Focus distance 1m to infinity
- Support for meeting zones to only frame people within the defined perimeters in the room and exclude passers-by in glass-walled and open areas.
Modes:
- Group view: Automatically detects meeting participants and provides ideal group framing for the best view
- Speaker view: Uses a dedicated, built-in microphone array to detect and provide a prominent view for the active speaker
- Frames: Captures a condensed view of in-room participants and frames them individually or in smaller groups for equitable representation
- Group and Speaker: Multistream layout providing a best overview and a focused view of the active speaker in parallel
- Manual camera control with the option for presets

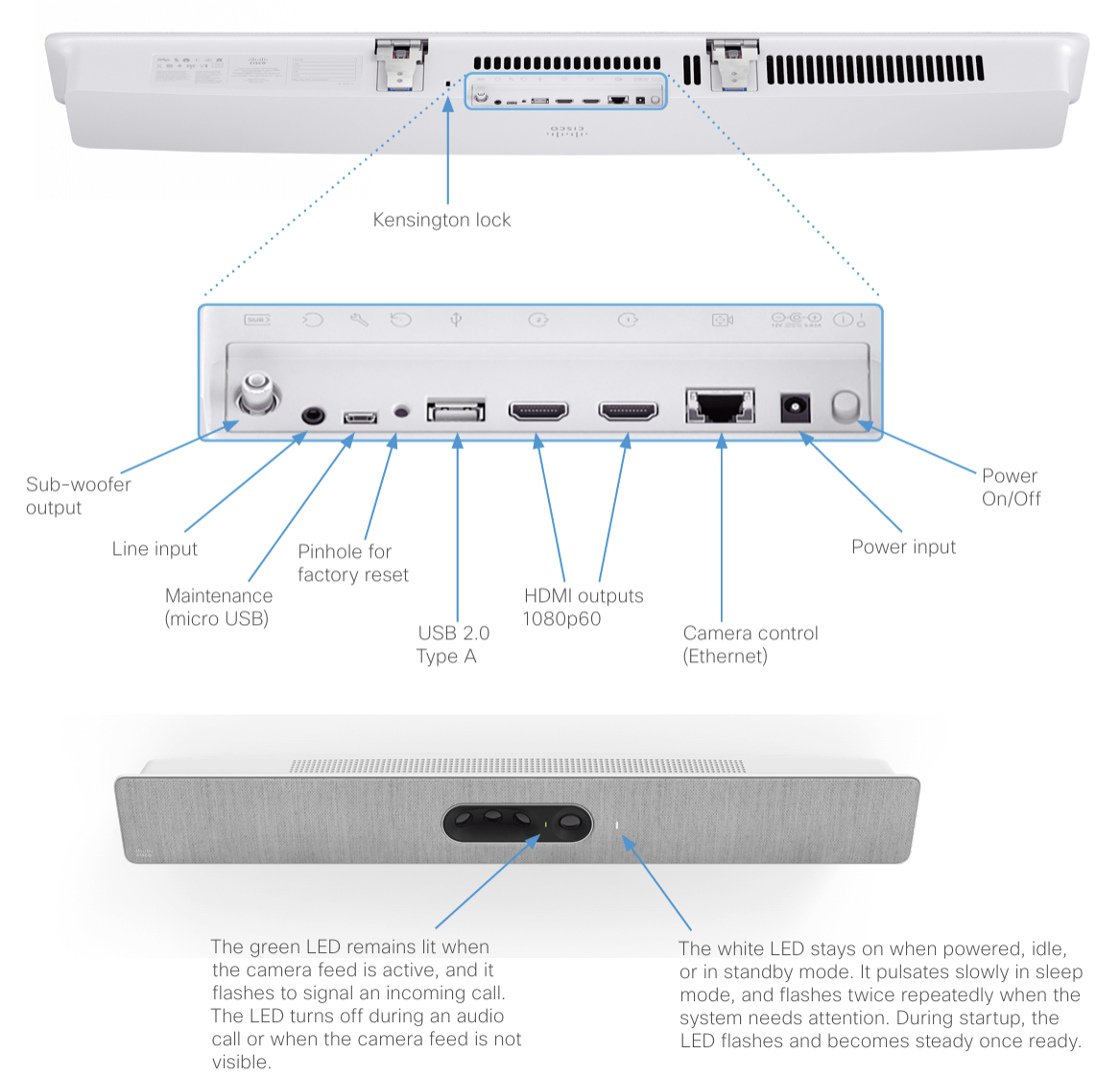

Technical specifications Quad Camera • 5k Ultra HD camera • Speaker tracking1 • 5120 x 2880 pixel resolution • 5 x digital zoom (3 tele-lenses each with 50° horizontal field of view) • 83° horizontal field of view • 51.5° vertical field of view • Focus distance: 1.0 m – ∞ (wide) • F-value: 2.0 • Support up to 60fps • 15.1 MP image sensor • Best-overview • Camera control over Ethernet • Automatic focus, brightness and white balance • IP network features: • DNS lookup for service configuration • Date and Time support via NTP • TCP/IP • DHCP • LAN/Ethernet (RJ45) 10/100/1000 Mbit network interface • 2 HDMI connectors • Height: 120mm/4.7 in • Width: 95mm/37.4 in • Depth: 103 mm/4.0 in • Weight: 4.8 kg/10.6 lbs • Part number: CS-QUADCAM= For more information about the camera dimension, refer to theCAD drawings on the Cisco website. Camera guide • RCA subwoofer output • Power adapter (FSP070-AHAN2, AcBel ADF019): • 100 to 240 VAC ; 50/60 Hz, 12 VDC input • 12 VDC ; Max.5.83 A output • Operating temperature and humidity: • 0°C to 35°C (32°F to 195°F) • 10 to 90 % relative humidity • Storing and transport temperature and humidity: • -20°C to 60°C (-4°F to 140°F) • 10 to 90 % relative humidity, non condensing
1 Certain room conditions such as lighting and acoustics can significantly impact the Quad camera’s ability to detect every person present. Speaker tracking functionality works best under optimal room conditions in combination with a seating area that is a maximum of 8m/26ft deep and up to 5m/16ft wide, in relation to the camera’s position. Sub-optimal room conditions or a camera distance greater than 8m/26ft will cause performance to degrade. Participants seated outside the horizontal field of view (83°) will not be detected.
Brand
Cisco
