CTS-CAM-P60= Cisco TelePresence Precision 60 Camera, Arctic White

CTS-CAM-P60= Cisco TelePresence Precision 60 Camera, Arctic White

A high-quality full HD pan-tilt-zoom camera that provides superior video quality, powerful zoom, easy integration into meeting rooms, boardrooms, and special industry projects.

It supports intelligent presenter tracking and custom people tracking when combined with the Room Kit EQ, Room Kit Plus, and Room Kit Pro bundles.

When you need the best clarity for video conferencing, the Cisco TelePresence® Precision Camera portfolio not only delivers a premier imaging experience, but also gives you a high level of flexibility for easy integration into meeting rooms, boardrooms, and special industry projects.
Precision Cameras provide a powerful imaging solution for custom integration into meeting rooms of all sizes.

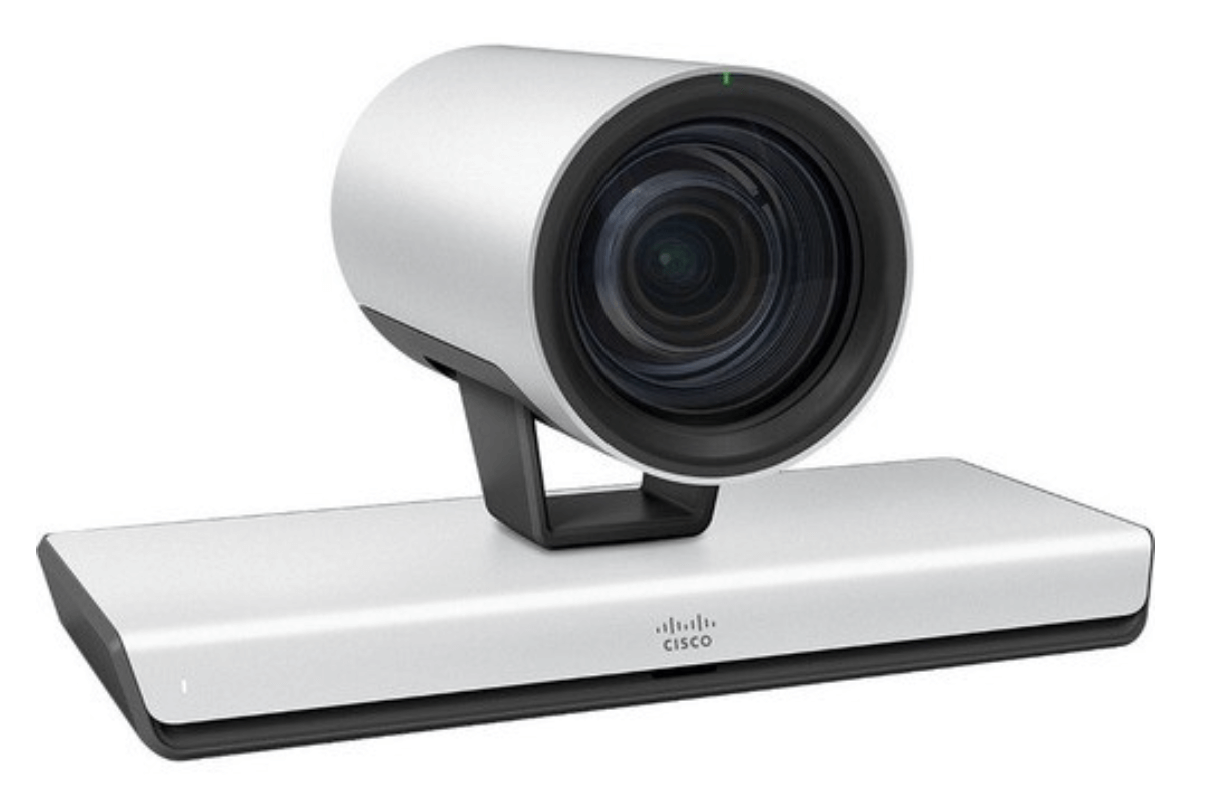

The Cisco TelePresence Precision Cameras (Figure 1) enable users to fully realize a high-definition experience and provide superior video quality at any bandwidth. Designed specifically for video conferencing, they provide crystal-clear, true-to-life quality for interaction and collaboration.

The Precision Camera portfolio consists of three models:

● Cisco TelePresence Precision 40 Camera, ideal for use with the Cisco TelePresence SX20 Quick Set
● Cisco TelePresence Precision 60 Camera, ideal for use with the Cisco TelePresence SX80 Codec and for enabling Cisco PresenterTrack
● Cisco TelePresence Precision 12X Camera, ideal for use with the Cisco TelePresence SX20 Quick Set

The Cisco TelePresence portfolio creates an in-person experience, empowering you to collaborate with others as never before. A powerful combination of technology and design allows you and remote participants in a video conference to feel as if you are all in the same room.

The Cisco TelePresence portfolio has the potential to provide great productivity benefits and transform your business. Many organizations are already using it to control costs, make decisions faster, improve customer intimacy, scale scarce resources, and reduce time to market.

Compatibility Guide

The Precision 60 camera is compatible with the following codecs:
• Cisco Codec EQ
• Cisco Codec Pro
• Cisco Codec Plus
• Cisco TelePresence SX80 codec

Basic Features

• PTZ people tracking with wide pan-tilt range for manual controls and presets
• Head and upper body detection supported from the codec
• Support for PresenterTrack software experience (using digital PTZ cropping)
• Auto focus, brightness, and white balance

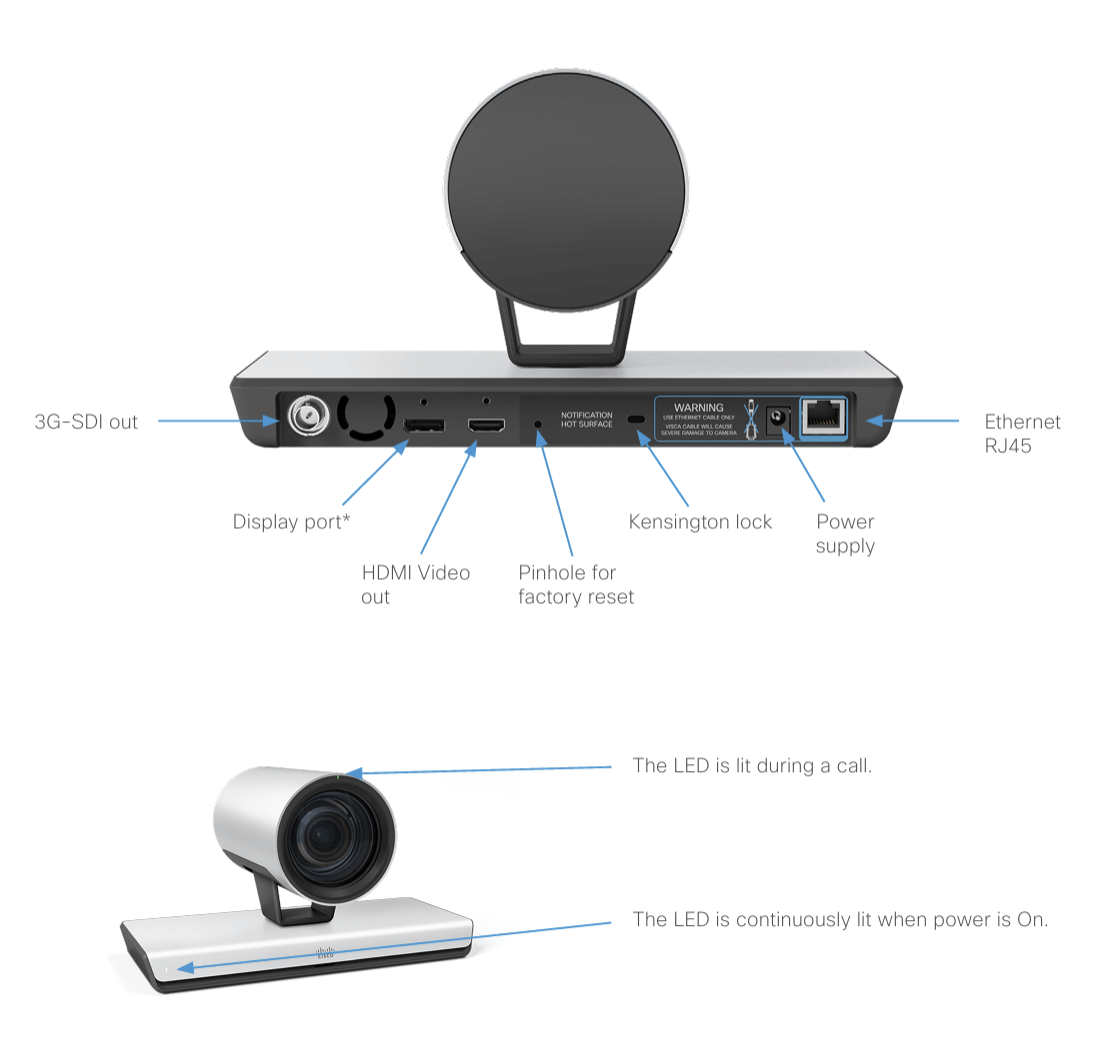

Specs at a Glance – Precision 60 Camera

Video

• HDMI is the main video source. The maximum resolution is 1080p60.
• 3G-SDI is the secondary video source. The maximum resolution is 1080p60.
• For long cable lengths, HDMI extenders supporting EDID should be used. The extender must not alter the SPA address or any EDID information incorrectly.
• If EDID is not supported, use the following setting: Cameras > Camera n > AssignedSerialNumber
• This setting allows you to manually assign a camera ID to a camera by associating the camera ID with the camera’s serial number. The setting is persistent until the codec is factory reset.

Power

• Power rating: 12 VDC, 3 A.
• Always use the provided cables and power adapter.

Ethernet

• For camera control and software upgrades.
• Use Ethernet cable only. Do not connect a serial VISCA cable to the Ethernet port on the Precision 60 camera, as this will cause severe damage to the camera.

Kensington lock
The Kensington lock may be used to prevent the camera from being moved from its place or to prevent theft.
