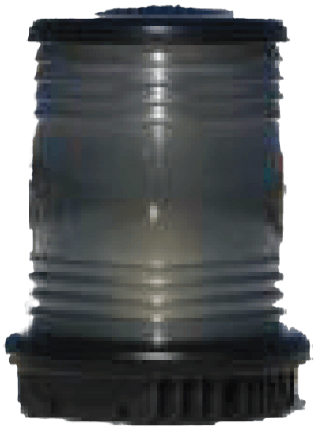

CVTIRI Beam Iridium and GPS Antenna, with Covert / Anti-Piracy Radome (Maritime)
$1,529.00 Inc. GST
CVTIRI Beam Iridium and GPS Antenna, with Covert / Anti-Piracy Radome (Maritime)
Dual Mode GPS/Iridium antenna, for Piracy/covert Maritime Solution
Covert outer radome to camouflage the antenna.
Based on RST702 antenna inside
CVTIRI – Whats in the Box?
- Iridium / GPS Dual Mode Antenna
Discreet Antenna
The Iridium Covert antenna, is the only antenna designed not to look like an antenna, thus disguising it with the normal non-communication equipment you would expect to see on a vessel.

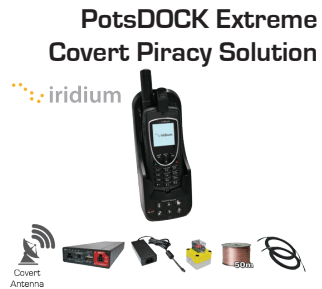

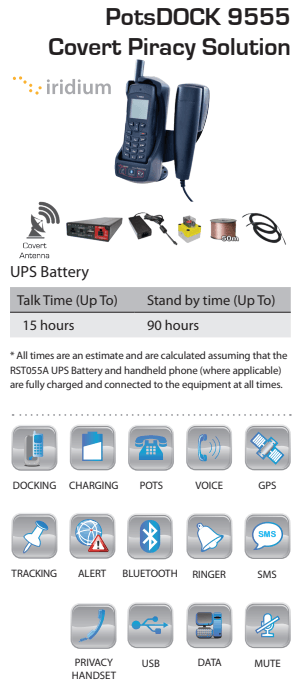

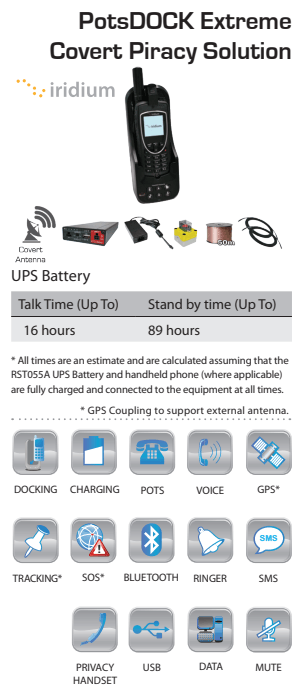

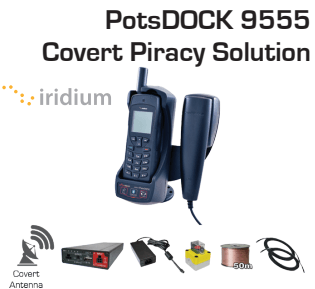

This Covert antenna can be used with any Iridium Satellite Telephone docking unit or fixed maritime terminals.
Key Benefits and Features
• IP66 rated enclosure

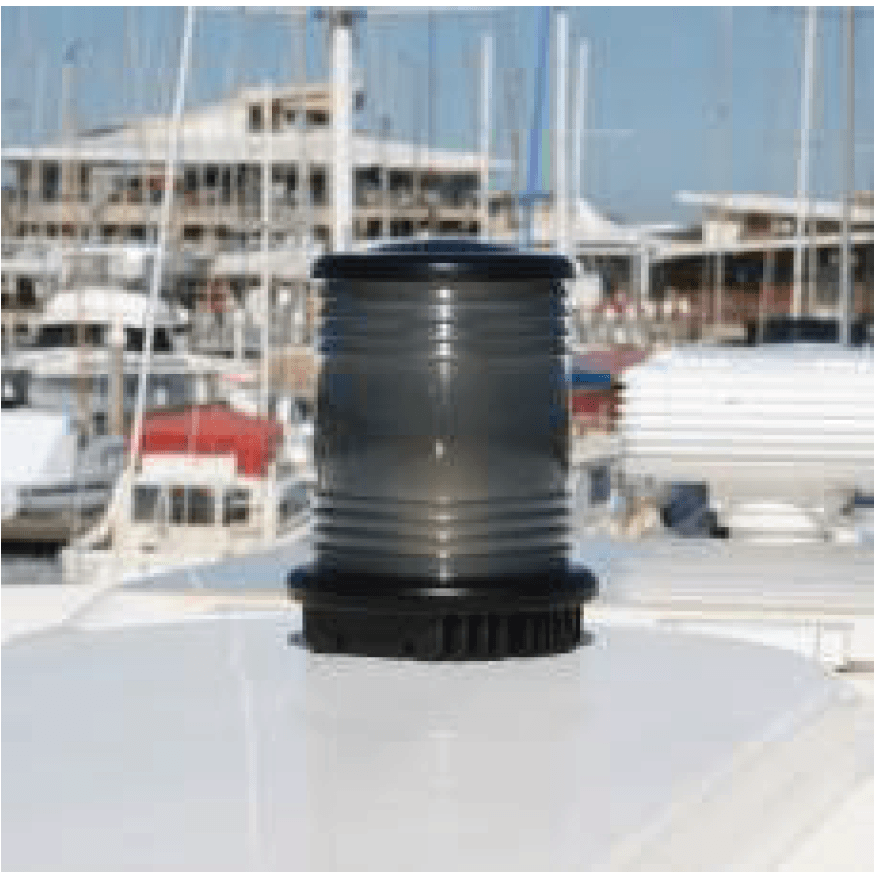

• Looks like a normal maritime light
• Polycarbonate housing
• Same antenna elements as the RST702 antenna in a covert housing
• Easy to install
• Same for install as RST702
• Antenna pre fitted inside
• Supports both Satellite / GPS cables
• Custom designed by Beam
• Looks like a normal maritime light
• Polycarbonate housing
• Same antenna elements as the RST702 antenna in a covert housing
• Easy to install
• Same for install as RST702
• Antenna pre fitted inside
• Supports both Satellite / GPS cables
• Custom designed by Beam
CVTIRI – SPECIFICATIONS
| Antenna | Iridium | GNSS (GPS) |
| Frequency | 1616 – 1626 MHz | 1575.42 MHz (L1) |
| Polarization | Right Hand Circular | NA |
| Axial Ratio | 3dB MAX @ bore sight | NA |
| Impedance | 50 OHMS | NA |
| Gain | Passive | 26dB (35 mA) |
| Voltage | Passive | 3 VDC |
| Power Handling | 10 Watts | NA |
| VSWR | < 2.0:1 | NA |
| Altitude | 20,000′ | NA |
Physical
| Colour | Smoke semi-transparent | Black power coated |
| Finish | Plastic radome, chem-filmed | Aluminum base plate |
| Dimensions | mm | inches |
| Antenna | 244.86H x 149.0dia | 9.64H x 5.87dia |
| Box | 265 W x 220 D x 120 H | 10.43 W x 8.66 D x 4.72 H |
| Weight | kg | lbs |
| Antenna | 1.1 | 2.42 |
| Box | 0.94 | 2.07 |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Temp Range | -40° C to + 71° C | -40° F + 159.8° F |
Connectors
| Iridium | TNC Female |
| GPS | SMA Female |
