E70354 Flir M232 Thermal Camera System, Pan and Tilt
$5,271.20 Inc. GST
E70354 Flir M232 Thermal Camera System, Pan and Tilt
Compact standard resolution marine thermal camera with pan and tilt.

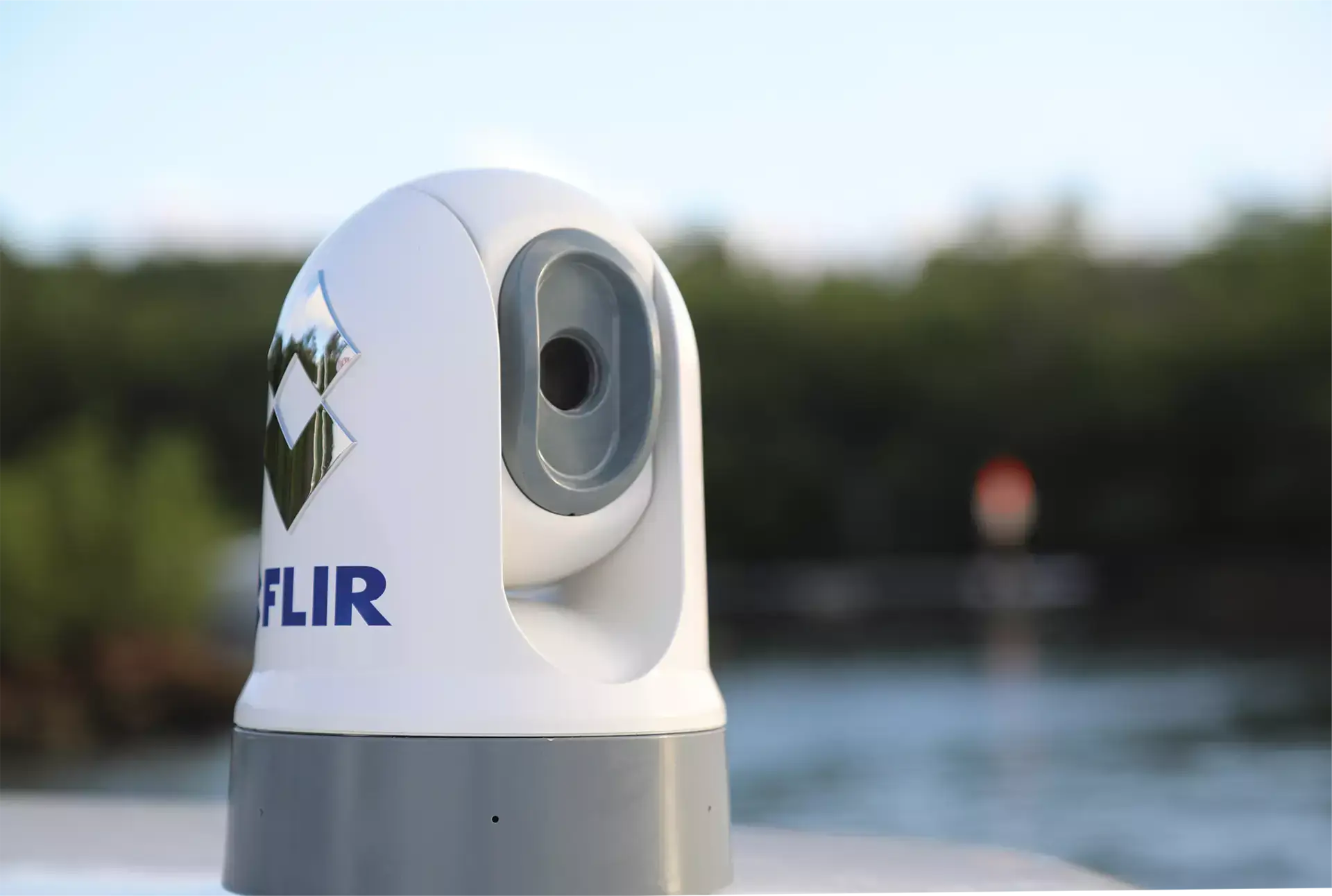

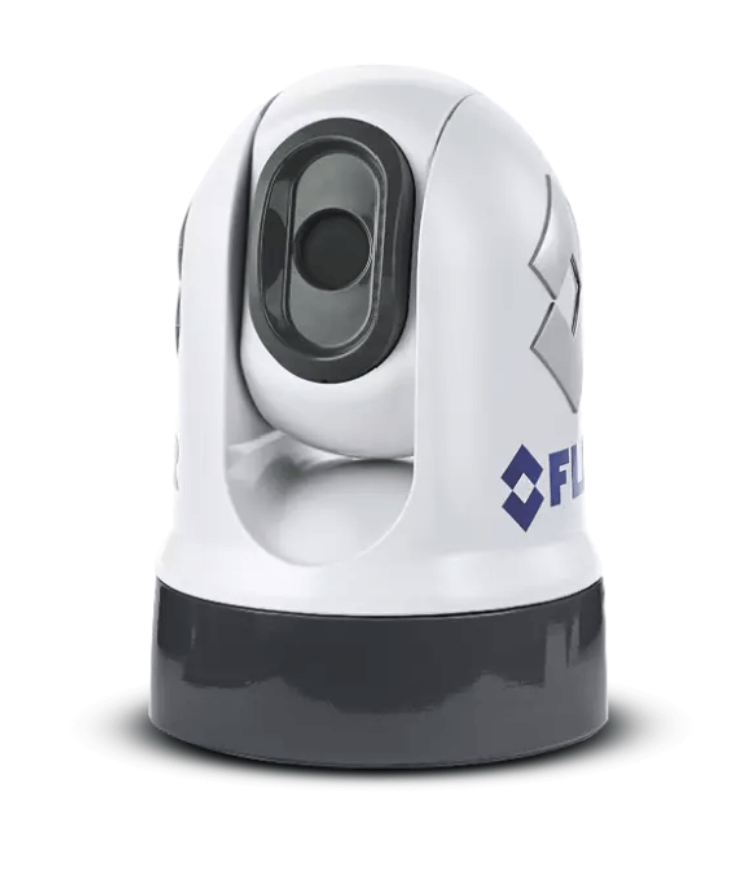

The M232 marine thermal camera takes affordability and easy integration to a whole new level.
Incorporating 320 x 240 thermal resolution, video over IP, and digital zoom, M232 is the smallest Teledyne FLIR marine pan and tilt camera system.
The M232 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels in total darkness.
The M232 also helps boaters find people in the water faster than using spotlights and radar alone.
M232 Thermal Detection Ranges
- Human(Av size): 0.3nm (560m)
- Vessel(30ft): 1.0nm (1850m)
- NATO Target(2.3m x 2.3m @50%): 0.7nm (1285m)
NOTEL Actual range may vary depending on camera setup, environmental conditions and user experience.
M232 – What’s in the Box?
- Thermal Camera.
- Thermal camera base-seal.
- Hardware: 3x M6 threaded studs, 2x M6 flat nuts, 3x M6 dome nuts, 3x M6 flat washers and 3x M6 nyloc nuts.
- 2x Self-adhesive decals (for ball-down(upside down) mounting only).
- RayNet (Ethernet) toRJ45 adapter cable, 100mm(3.94in).
- Right-angled RayNet(Ethernet) to RayNet(Ethernet) cable,10m(32.8ft).
- Right-angled 3-pin power cable,10m(32.8ft).
- Top-down riser kit(includes riser, riser base seal, and riser mounting template).
- Documentation pack.
More thermal capability for less
The FLIR M232 features a rugged, waterproof gimbal enclosure with automatic window heaters for effective ice management.
Users can enjoy intuitive touchscreen pan, tilt, and camera controls directly from their chart plotter display, with an optional joystick control unit available for dedicated operation.
When paired with a Raymarine Axiom display, M232 enhances safety with ClearCruise™ object detection.
ClearCruise object detection delivers audible and visual alerts when non-water objects—such as boats, obstacles, or markers—are identified, offering an extra set of eyes for safer night time navigation.
Chartplotter Compatible
FLIR M-Series cameras are designed to integrate seamlessly with chartplotters and multi-function display from Furuno, Garmin, Raymarine and Simrad.
View the thermal image on your chart plotter display and control the camera’s pan and tilt with your chartplotter’s touchscreen.
Flir M232 – SPECIFICATIONS
MAIN THERMAL CAMERA Field of View 24° × 18° Video Refresh Rate 9 Hz Focal Length 19mm Focus Fixed 12ft (3.6m) to infinity Optical Zoom N/A Digital Zoom 4x Continuous Detector Type 320 × 240 VOx Microbolometer
SYSTEM SPECIFICATIONS ClearCruise Analytics Yes, with select Raymarine Displays* Pan/Tilt Adjustment Range Pan: 360° (continuous), Tilt: +110°, -90° Analog Video Connector Types N/A Network Video Output Single H.264 Network Video Stream Power Requirements 12 or 24 VDC Power Consumption 15 W (typical) 18 W (max)
ENVIRONMENTAL Operating Temperature Range-13°F to +131°F (-25°C to +55°C) Storage Temperature Range-22°F to +158°F (-30°C to +70°C) Automatic Window Defrost Standard at Power-Up Water Ingress IPX6 Shock 15 g vertical, 9 g horizontal Vibration IEC 60945; MIL-STD-810E Lightning Protection Near Strike at 2kV Salt Mist IEC60945 EMI IEC60945
PHYSICAL Weight 6.0 lb (2.7 kg) w/o top-down riser 6.6 lb (3.0 kg) w/ top-down riser Size Without top-down riser; Diameter 6.3” (161.1mm), Height 9.0” (229.3mm) With top-down riser; Diameter 7.5” (190.0mm), Height 11.0” (279.0mm)
CLEAR WEATHER RANGE PERFORMANCE Detect a 30-foot Vessel 1.0nm (1850m) NATO Target 2.3m x 2.3m @50% 0.7nm (1285m) Detect Human Sized Target 0.3nm (560m)
M223 SERIES DATA SHEET WARRANTY FLIR’s service commitment of outstanding warranty and technical support now offers you even more; by registering your system with FLIR at www. teledyneflir.com, the 2-Year Standard Limited Warranty is upgraded and replaced by the 3-Year Extended Limited Warranty for FREE. For complete details on FLIR’s industry-leading warranty please visit www.teledyneflir.com/maritime.
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited. Imagery for illustration purposes only. Specifications are subject to change without notice. ©2021 Teledyne FLIR LLC, Inc. * Always check display manufacturer’s website and technical documentation for the latest information regarding camera/display compatibility
