E70525 Flir M364 Thermal Camera System, 2-Axis Gyro, Pan and Tilt, 30Hz

SKU: E70525

$25,556.30 Inc. GST

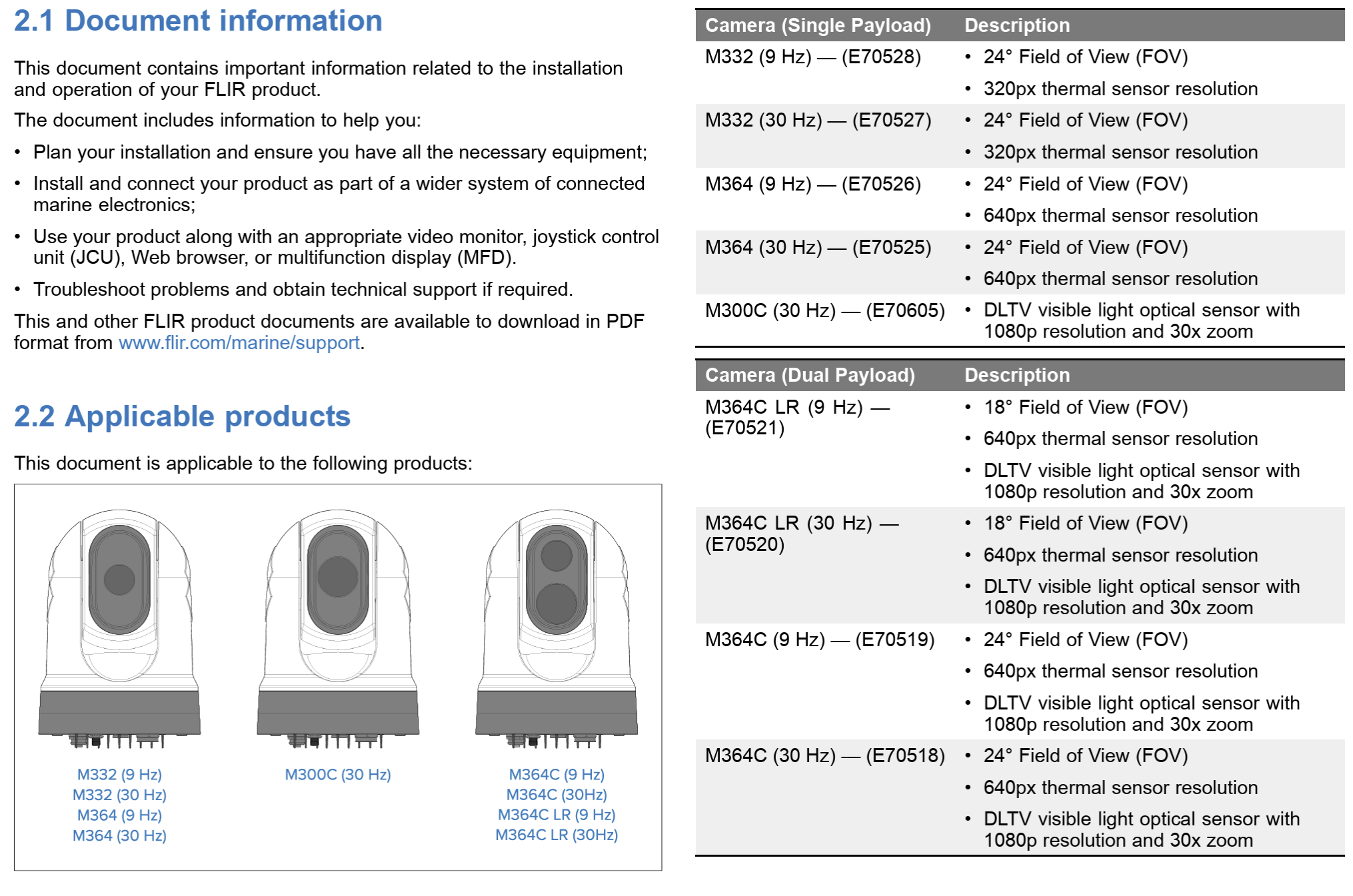

M332-M364-Data-Sheet.pdf M300-series-Installation-and-User-Manual.pdf

E70525 Flir M364 Thermal Camera System, 2-Axis Gyro, Pan and Tilt, 30Hz

High resolution marine thermal camera with pan and tilt and 2-axis gyro stabilization.

Marine Thermal Camera with Active Gyro-Stabilization

The M364 combines a robust, all-weather design with a leading edge high resolution FLIR thermal senso, providing enhanced situational awareness for maritime professionals and recreational boaters.

Its advanced gyro-stabilization and high-resolution thermal sensor make it possible to detect obstacles and targets even in total darkness and rough seas, ensuring safe navigation under the most demanding conditions.

M364 Thermal Detection Ranges

  • Human(Av size): 0.5nm (925m)
  • Vessel(30ft): 1.7nm (3150m)
  • NATO Target(2.3m x 2.3m @50%): 0.9nm (1690m)

NOTEL Actual range may vary depending on camera setup, environmental conditions and user experience.

E70525 – What’s in the Box?

  • M364 Thermal Camera Unit, 30Hz
  • Riser base-seal
  • Camera seal 4 RayNet(Ethernet) to RJ45 adapter cable 120mm(4.72in.)
  • Right-angled RayNet (Ethernet) to RayNet (Ethernet)cable 3m(9.8ft.)
  • Right-angled HD-SDI video cable(with BNC connectors)3m (9.8ft.)
  • Right-angled power/NMEA0183/video cable, 3m(9.8ft.)
  • Mounting riser
  • Fixings: 3x M6 threaded studs, 2x M6 flat nuts, 3x M6 dome nuts, 3x M6 flat washers and 3x M6 nyloc nuts.
  • Documentation pack

Optional Accessories Available to Purchase, but NOT included in this Pack:

  • JCU-1 (500-0385-00)
  • JCU-2 (500-0398-10)
  • JCU-3 (A80510)
  • Digital video(HD-SDI) monitor, available separately from third-party retailers
  • FLIR PoE injector
  • Ethernet network switch
  • 300mm(1.0ft) Ethernet cable
  • 1.5m(5.0ft) Ethernet cable
  • Clamshell ferrite (Part Number 4134175)
  • Additional accessories and spare parts are available upon request.

Superior FLIR Thermal Night Vision

The FLIR M364 offers night vision in complete darkness, glare, and light fog.

  • Powered by the breakthrough FLIR Boson thermal imaging core
  • Rugged IPX6 pan and tilt housing is built to withstand the elements
  • Advanced onboard image processing technology
  • Analog video, HD-SDI, and IP video for expanded integration
  • Marine Video Analytics intelligently identifies non-water objects.

Pan and Tilt – Navigate safer and explore with 360° pan and +/-90° tilt capability. Control the M332 with your chartplotter or optional joystick control unit.

2-Axis Stabilization – Navigate with a steady view in rough seas. Vertical stabilization compensates for vessel pitch and horizontal stabilization maintains the M364’s field of view on a selected bearing.

Standard Resolution – A high resolution 640×512 FLIR thermal sensor delivers superior night vision and almost twice the range capability as a standard thermal sensor.

Chartplotter Compatible

FLIR M-Series cameras are designed to integrate seamlessly with chartplotters and multi-function display from Furuno, Garmin, Raymarine and Simrad. View the thermal image on your chartplotter display and control the camera’s pan and tilt with your chartplotter’s touchscreen.

Flir M332 / M364 – SPECIFICATIONS

THERMAL CAMERA M332 M364 Detector Type 320×256 VOx Microbolometer 640×512 VOx Microbolometer Video Refresh Rate 30 Hz or <9 Hz 30 Hz or <9 Hz Field of View 24 ° x 18 ° 24 ° x 18 ° Focal Length 9.1mm 18 mm Focus Fixed 12 ft (3m) to infinity Fixed 12 ft (3m) to infinity Optical Zoom N/A N/A Digital-Zoom 4x Continuous SYSTEM SPECIFICATIONS Gyro Stabilized Yes Marine Video Analytics (MVA) Yes Pan/Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt Analog Video Output NTSC/PAL User Settable Analog Video Connector Types BNC Network Video Output Two, Independent H.264/MJPEG Network Video Streams HD-SDI Lossless Video Output Yes Power Requirements 12 to 24VDC Power Consumption 41W nominal; 56W w/ heaters ONVIF Profile S Conformance ENVIRONMENTAL Operating Temperature Range-13°F to +131°F (-25°C to +55°C) Storage Temperature Range-22°F to +158°F (-30°C to +70°C) Automatic Window Defrost Standard at Power-Up Water Ingress IPX6 Shock 15g vertical, 9g horizontal Vibration IEC60945 Lightning Protection Near Strike at 2kV Salt Mist IEC60945 EMI IEC60945 PHYSICAL Weight Camera: 13.9lbs (6.3kg) Camera with Top-Down Riser: 14.9lbs (6.8kg) Size Camera: 8.7” (222mm) x 12.9” (328mm) Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm) CLEAR WEATHER RANGE PERFORMANCE Detect a 30-foot Vessel 1.0nm (1850m) 1.7nm (3150m) NATO Target 2.3m x 2.3m @50% 0.7nm (1285m) 0.9nm (1690m) Detect Human Sized Target 0.3nm (560m) 0.5nm (925m) S
