E70682 Flir M560 Elite Multi-spectral Thermal Camera System, 3 Axis Gyro

E70682 Flir M560 Elite Multi-spectral Thermal Camera System, 3-Axis, AI Target Tracking, USV and Remote Ops

Note: M560 has NO Laser Range Finder Option. Order part# M560-LRF with pre-installed ITAR Free Laser Range Finder.

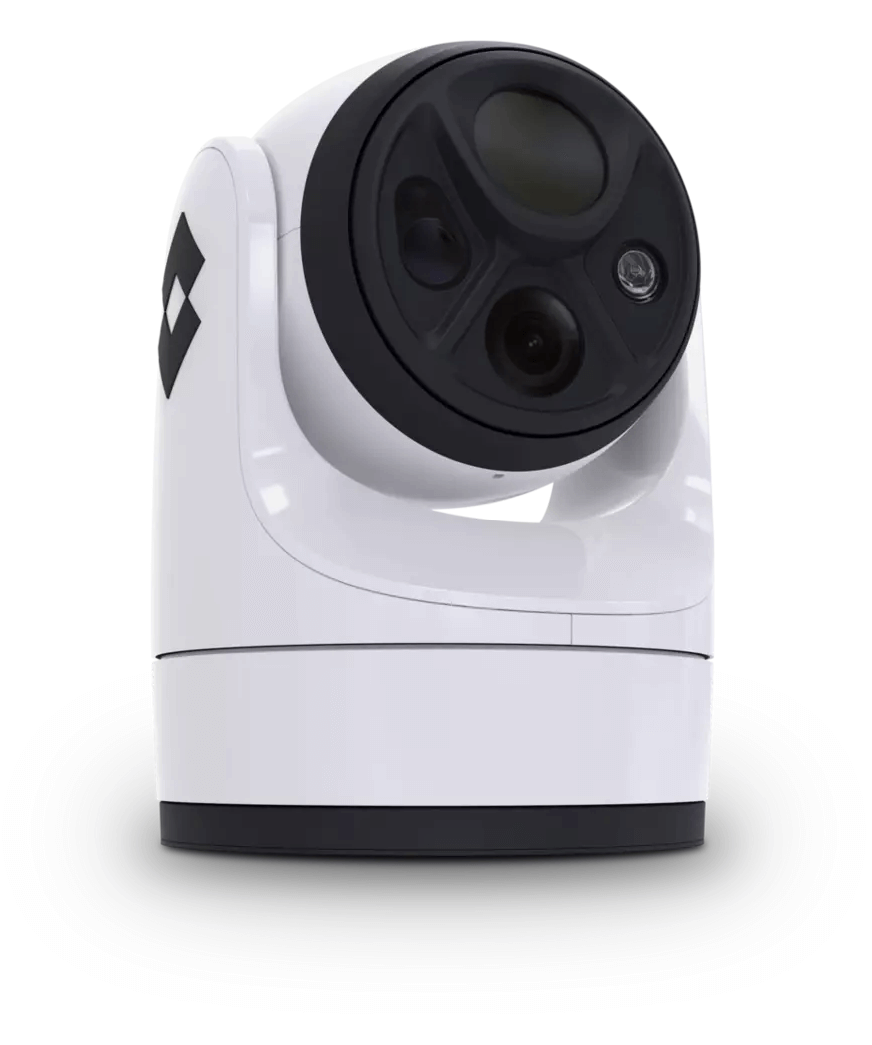

The M560 is an elite AI powered multi-spectral camera system for marine applications.

More than a thermal camera, the M560 is a marine-imaging system that combines a mid-wavelength thermal sensor with a 4K ultra low-light visible camera and feature a long range laser spotlight.

Note: Only the M560-LRF is enabled with a 12KM ITAR free laser rangefinder.

M560 integrates these powerful sensor payloads into a rugged three-axis stabilized gimbal housing, offering superior long range detection capabilities with best-in-class image stabilization.

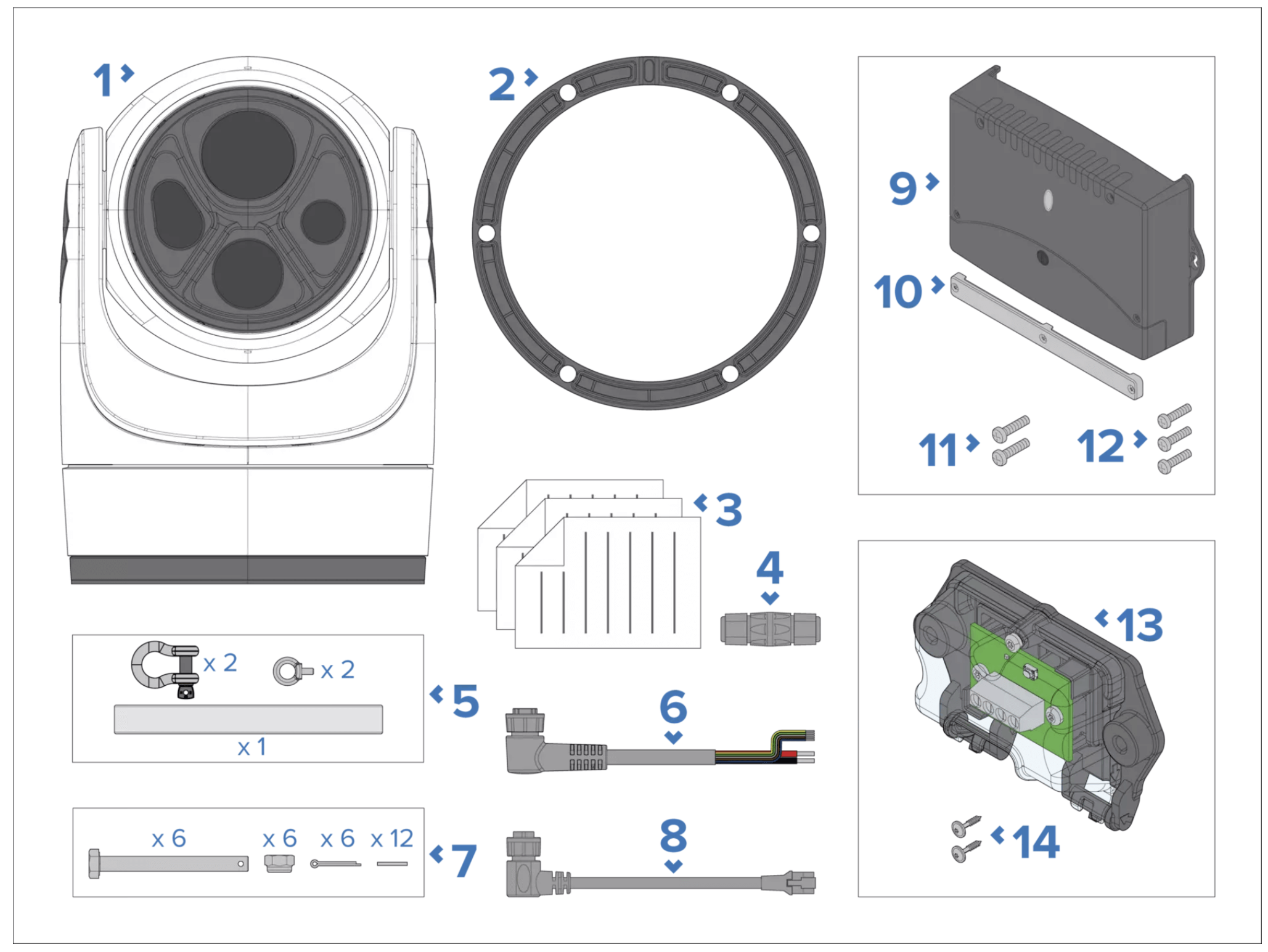

M560 – What’s in the Box?

• M560 Camera(No Laser Range Finder Option)
• Camera seal
• Documentation pack
• RJ45 to RJ45 waterproof coupler
• Lifting kit: 2x M8 eyebolts, 2x stainless steel shackles, 1x lifting sling.
• Right-angled power cable, 1 m (3.28 ft)
• Fixings: 6x M10x100 bolts, 6x M10 nyloc nuts, 12x M10 flat washers, 6x split pins.
• Right-angled RayNet (Ethernet) to RJ45 adapter cable, 1 m (3.28 ft)
• VCM150 Voltage Convertor Module
• 1VCM150 cable clamp
• VCM150 mounting screws x2
• VCM150 cable clamp mounting screw x3
• External LED diagnostic indicator
• 2pcs No.10 (5 mm x 25 mm) T25 Torx flanged button head wood screw for LED indicator

Key Features:

• Multi-Spectral Imaging Combines mid-wave IR thermal, 4K ultra-low-light visible camera, laser rangefinder, and laser spotlight for unmatched situational awareness.
• Three-Axis Stabilized Gimbal Delivers smooth, distraction-free imagery in rough seas; enhances long-range zoom and target tracking accuracy.
• AI Target Tracking Detects, classifies, and tracks vessels, buoys, and people using thermal and visible sensors—minimizing false alarms and improving navigation safety.
• High-Sensitivity Thermal Sensor FLIR mid-wave IR sensor with 14.9x optical zoom enables early detection of vessels and obstacles, even in total darkness.
• 4K Day/Night Camera 25x optical zoom and ultra-low light sensitivity allow for detailed observation and positive identification of targets.
• Color Thermal Vision (CTV) Enhances thermal imagery with visible color overlays—making navigation aids and shoreline features easier to identify.
• ITAR Free 12KM Laser Rangefinder Provides precise distance measurements for tracking and evidence gathering; optional based on system configuration.
• Tight Beam Laser Spotlight Illuminates distant objects with minimal reflection and scatter—ideal for identifying people or vessels at night.
• Intuitive User Interface Operable via JCU-4 joystick and designed to integrate with touchscreen chartplotters from Furuno, Garmin, Raymarine and Simrad,
• Radar Tracking Automatically keeps camera focused on radar targets for enhanced safety and surveillance.
• USV & Remote Ops Ready Built to military-grade standards with ONVIF and FLIR Nexus SDK support; optimized for low-bandwidth remote control and integration.
