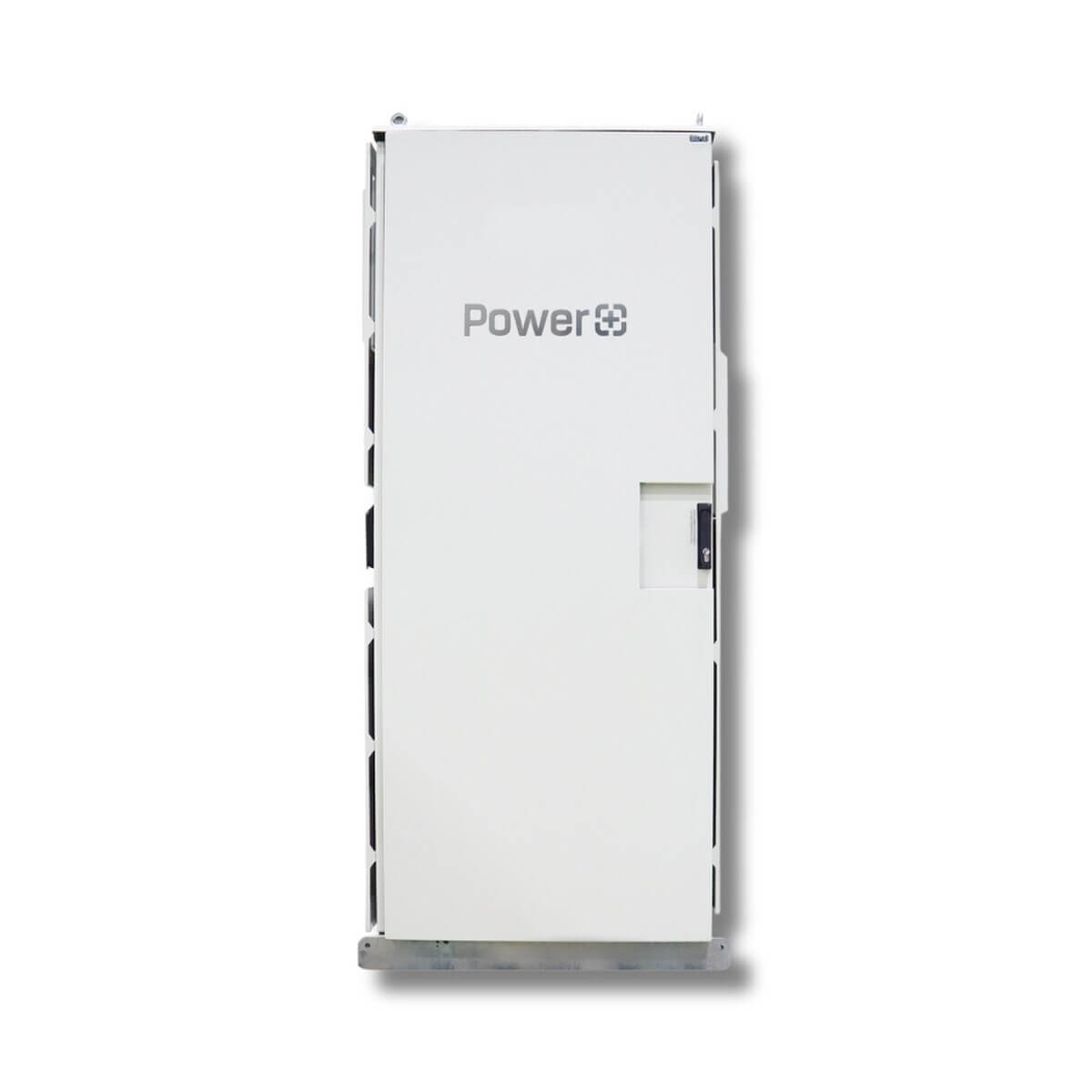

ESCA2028-615-000 PowerPlus Escape20 BESS, on or off-grid, suits 14 LiFe4838P and ECO4847P
$60,838.20 Inc. GST
ESCA2028-615-000 PowerPlus Escape20 BESS, On or off-grid, Suits 14 LiFe4838P & ECO4847P, On or off-grid, 3ph 28.8kW, Outdoor IP54.

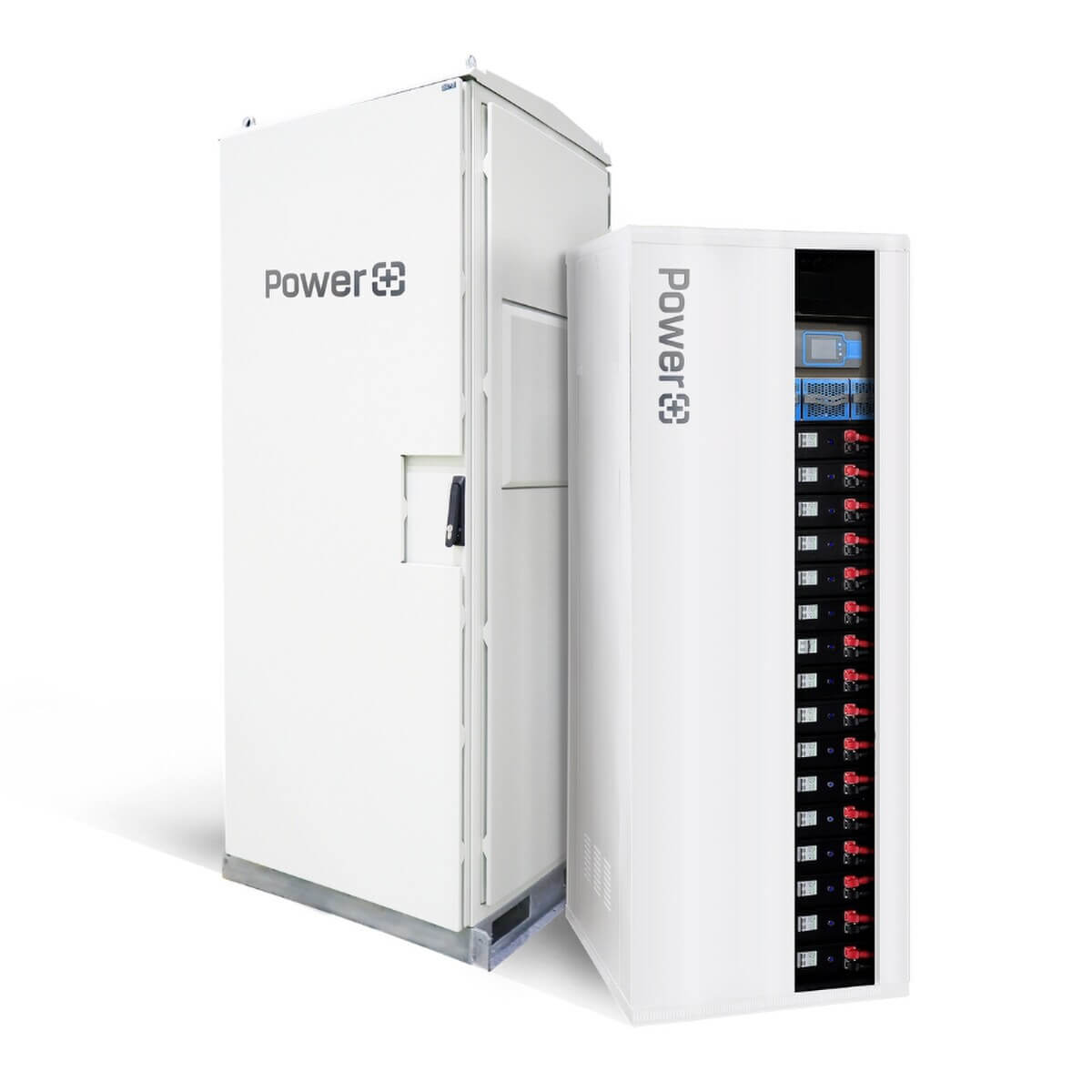

PowerPlus Escape20 Three Phase BESS with 28.8kW / 36kW rack-mount inverter/chargers in a Single Bay IP54 Outdoor enclosure
Suitable for On-Grid, Grid-Backup, Off-Grid and UPS Applications.
– Accommodates 14 LiFe4838P or ECO4847P batteries (sold separately)
– Suitable for AC-Coupled Solar (sold separately)
Expandable to two cabinets (larger systems can be considered with custom designs).
Enclosure features note:
Indoor IP54 models are a single skin enclosure, similar to the IP21 models.
Outdoor IP54 models have a double skin, fan forced cooling (with filters), rain hood and plinth.
Escape20 Series
3ph, 22.8kW – 115kW, 53Wh – 213kWh
Suitable for On-Grid, Grid-Backup, Off-Grid and UPS Applications
The PowerPlus Escape20 series Battery Energy Storage System is designed with versatility and scalability in mind. Featuring MPPT technology and leading-edge power conversion equipment, these BESS systems are built to stand out thanks to their longevity, reliability, and customisability.
| Weight [kg] | 510 |
| Depth [mm] | 925 |
| Height [mm] | 2160 |
| Quantity Per Pallet | 1 |
| Brand | PowerPlus Energy |
| IP Rating | IP54 |
| Width [mm] | 800 |
| Colour | White |
| Continuous Output Power [W AC] | 28800 |
| Family | Escape20 |
| Battery Bank Voltage | 48 |
| Supports Backup? | Yes |
