SENA Parani ESD110 Starter Kit
ESD110SK-01 Sena Parani-ESD-110V2 Starter Kit
Package contents:
Parani-ESD100V2 Module (on-board chip antenna)
Development board
Serial data cable
DC Power Adapter
A hardcopy of Quick Start Guide
$218.90 Inc. GST

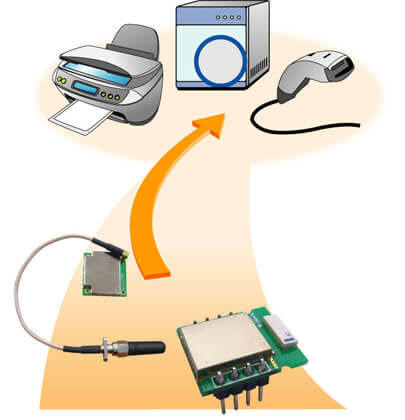

Parani-ESD Series is OEM Bluetooth-Serial Module type product line based on Bluetooth technology. Parani-ESD Series is designed for integration into user devices by on-board installation.
They are connected to the device via built-in UART interface and communicate with other Bluetooth device.
Parani-ESD110 enables RS232-based serial devices to communicate wirelessly throughout the range of 100m ~ 1000m.
Parani-ESD110 has an antenna connector for connecting external antenna. Users can extend Bluetooth communication range by connecting the external antenna to antenna connector.
Users may configure the Parani-ESD Series by using easy-to-use Windows-based utility software or by using standard AT command set.
Parani-ESD Starter Kit includes the evaluation board with the sample circuitry for Parani ESD110 interface, power, RS232 Interface, Reset, LEDs, Pairing, H/W flow control for user device development.
Features – Parani-ESD-110
Output Interface UART, Compliant Bluetooth Specification v1.2- improved AFH(Adaptive Frequency Hoping), Fast connection
Transmit Power – ESD100/110 : Max. +18dBm, ESD200/210 : Max. +4dBm
Receiving Sensitivity – ESD100/110 : -88dBm(0.1%BER), ESD200/210 : -80dBm(0.1%BER)
Compact size – ESD100/110: 27.5 x 27.7 x 14(mm), ESD200/210: 18 x 20 x 11.7 (mm)
Provides transparent RS232 serial cable replacement.
Supports Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
Built-in On-board antenna included
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-ESD100: Class 1, Nom. 100 meters
Parani-ESD110: Class 1, Nom. 100 meters, up to 1000m using patch antenna
Parani-ESD200: Class 2, Nom. 30meters
Parani-ESD210: Class 2, Nom. 30meters, up to 300m using patch antenna
Easy to use Windows configuration tool available.
No external drivers required.
Specifications
CategoryDetailsSerial interface (Module)
Connection
2*6 Header
Speed
1200bps to 230 kbps
Flow Control
CTS/RTS
Bluetooth
Version
1.2
Class
1
Output level
+18 dB
Protocols
RFCOMM, L2CAP, SDP
Profile
General Access Profile, Serial Port Profile
Work distance
Max. 100 meter with stub antenna
Max. 1000 meter with patch antenna
Management
ParaniWin, ParaniWizard, Modem AT Commands
Firmware
Upgrade via parani Updater
Power Supply (Module)
Voltage
3.3 V DC
Current
70 mA
Environment
Work Temperature
-10 to 55 °C
Storage temperature
-20 to 70 °C
Humidity
up to 90%, non condensing
Physical properties (Module)
Dimension
27.5 * 27.7 * 14 mm (L*B*H)
Weight
15 gram
Approvals
FCC, CE, MIC
Warranty
1 year limited warranty
Brand
Sena
Starter Kit Includes:
1x Parani-ESD110-01 Module,
1x Development Jig board,
1x Wall A/C power adapter,
1x Serial data cable, 1x CD-ROM,
1x Quick Start Guide
1x SAT-G01 stub antenna &
1x EEC-G01 15cm antenna cable extension
