SENA Parani ESD210 Module-Class 2, with antenna extension option

SKU: ESD210-00

The Parani-ESD210 is a Class 2 type of Compact Embedded Bluetooth Serial Modules for RS-232 cable replacement.
By default, it supports 30 meters of wireless transmit distance.
The Parani-ESD210 has an antenna extension option so that users can extend the transmit distance up to 300 meters using optional antennas.
The ESD210-00 pack does NOT include SAT-G01 antenna or EEC-G01 antenna extension cable.

$66.61 Inc. GST

File-1398416935.pdf

The Parani-ESD210 is a Class 2 type of Compact Embedded Bluetooth Serial Modules for RS-232 cable replacement.
By default, it supports 30 meters of wireless transmit distance.
The Parani-ESD210 has an extension option so that users can extend the transmit distance up to 300 meters using optional antennas.


Output Interface UART, Compliant Bluetooth Specification v1.2- improved AFH(Adaptive Frequency Hoping), Fast connection
Transmit Power – ESD200/210 : Max. +4dBm
Receiving Sensitivity – ESD200/210 : -80dBm(0.1%BER)
Compact size – ESD200/210: 18 x 20 x 11.7 (mm)

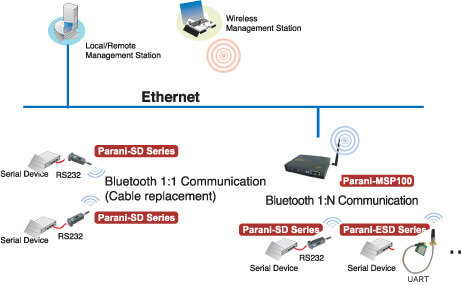

Provides transparent RS232 serial cable replacement.
Supports Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
Built-in chip antenna included
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-ESD200: Class 2, Nom. 30meters
Parani-ESD210: Class 2, Nom. 30meters, up to 300m using patch antenna
Easy to use Windows configuration tool available.
No external drivers required.

Go(scroll down) to Reference Table below…….

Brand

Sena

“WHATS IN THE BOX?” ESD210-00*

1x Parani-ESD210 OEM Bluetooth-Serial Module-Class 2 with antenna extension option                                                           *NOTE# Antenna extension and antenna is NOT included in this pack

Parani-ESD200

Parani-ESD210

Serial Interface

UART Interface, 2.54mm Header 1x4x2, 1200~230 Kbps

CTS/RTS flow control: Default

Bluetooth Interface

Bluetooth v1.2
Class 2
Level – Max. 4dBm
Protocols – RFCOMM, L2CAP, SDP
Profiles – General Access Profile, Serial Port Profile

Working distance

ESD200 :
Nominal 30 meters

ESD210 :
Default Antenna – Default Antenna 30 meters
Default Antenna – Dipole Antenna 50 meters
Dipole Antenna – Dipole Antenna 80 meters
Patch Antenna – Dipole Antenna 150 meters
Patch Antenna – Patch Antenna 300 meters

Max. Tx power

+4dBm

Receive Sensitivity

-80dbm

Antenna gain

Chip : 0dBi, Stub : +2dBi, Dipole : +3dBi, Patch : +9dBi

Configuration

ParaniWin, ParaniWizard, ParaniUpdater

Modem AT command set

Diagnostic LED

Power, TXD, RXD, DCD and DTR LED on Jig board

Power

3.3VDC
Nominal current consumption
-ESD100/110 : 70mA @ 3.3Vdc approximately
-ESD200/210 : 40mA @ 3.3Vdc approximately

Environmental

Operating temperature: -10’C to 55’C

Storage temperature: -20’C to 70’C

Humidity: 90% Non-condensing

Physical properties

Dimension(LxWxH)
– 18 x 20 x 11.7(mm)
– 0.7 x 0.78 x 0.47(in.)

Weight: 4g

Weight: 14g

MTBF

556.53 Years

562.74 Years

Regulatory
Approvals

FCC Part 15 Subpart C Section 15.247
ETSI EN 300 328
ETSI EN 301 489-1
ETSI EN 301 489-17
EN61000-3-2, EN61000-3-3
MIC

SIG QDID

B012681

Warranty

1-year Limited Warranty
