SENA Parani ESD210 Starter Kit

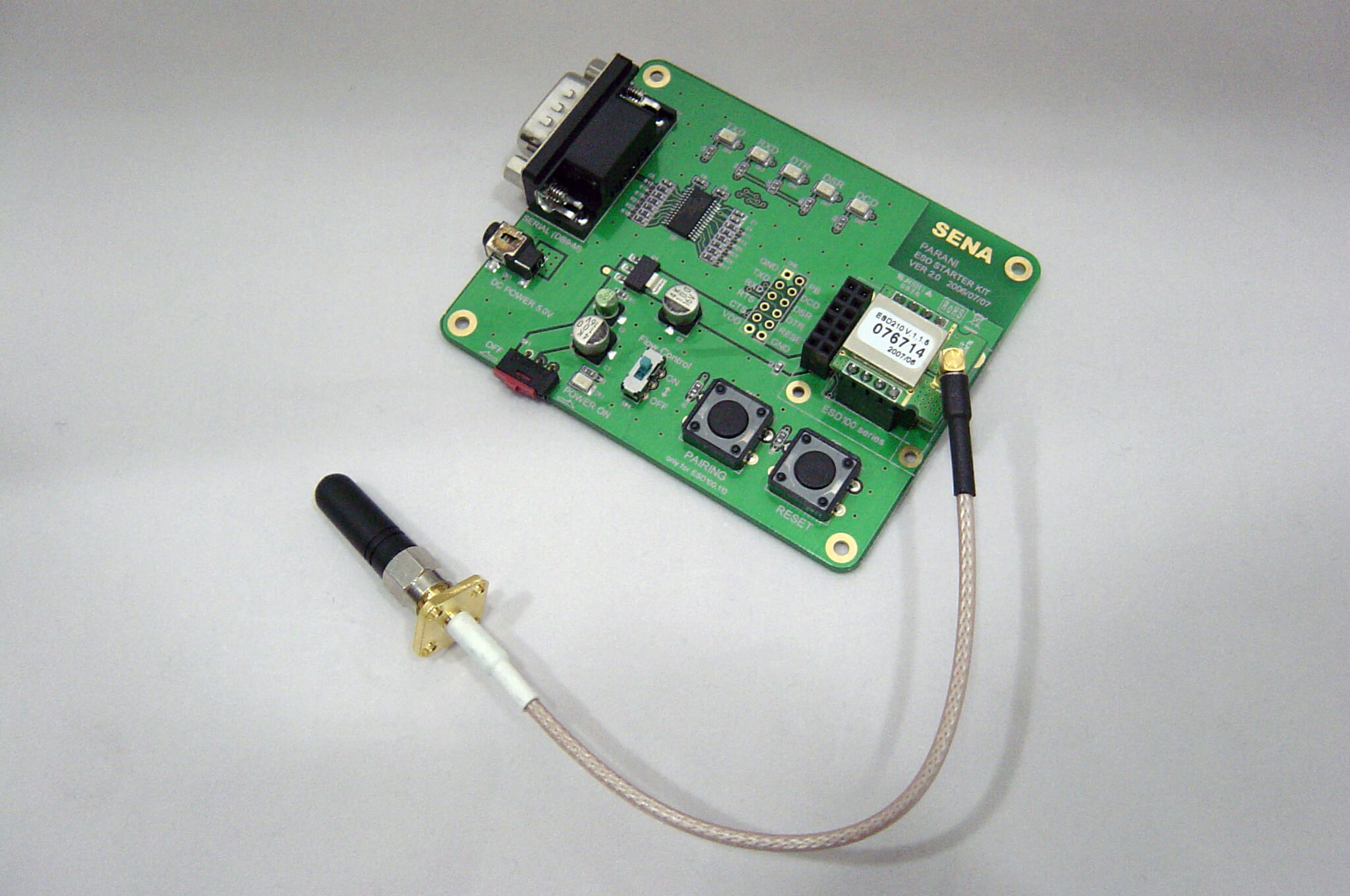

ESD210SK-01 Sena Parani-ESD-210 Starter Kit
Includes:
Any one of the following modules: ESD200, ESD210
SAT : Parani-SAT Stub Antenna-SMA Male-Left Handed
EEC : Parani-EEC 15cm Antenna Extension Cable
Jig board
DC Power Adapter
Serial data cable
$218.90 Inc. GST

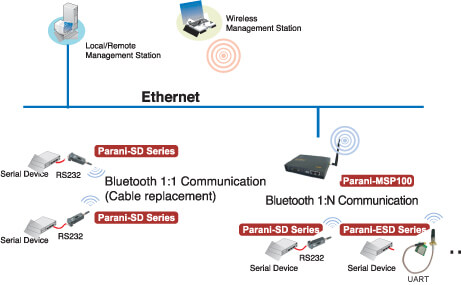

This provides a simple Bluetooth node for system installers, instrument engineers and product designers, in fact anyone who now uses serial communications in their product. All the engineer needs to do is fit these 8- or 12-pin DIL modules on the PCB, connect the serial lines to the module and voila, an instant Bluetooth interface.
This Bluetooth interface has configurable operating modes and can communicate with any other Bluetooth node such as PDAs, some mobile phones, PC Bluetooth adapters, laptops, or simply talk to each other. As well as being simple to add to hardware, they are simple to setup using the Windows Manager software supplied with the units or by using AT modem commands.
The Starter Kit is ideal for setup and evaluation of the ESD210 module.
This is the Starter Kit for the ESD210 ONLY which also includes an ESD210 Module which is a Class 2 type of Compact Embedded Bluetooth Serial Module for RS-232 cable replacement. By default, it support 30 meters of wireless transmit distance.
Output Interface UART, Compliant Bluetooth Specification v1.2- improved AFH(Adaptive Frequency Hoping), Fast connection
Transmit Power – ESD200/210 : Max. +4dBm
Receiving Sensitivity – ESD200/210 : -80dBm(0.1%BER)
Compact size – ESD200/210: 18 x 20 x 11.7 (mm)
Provides transparent RS232 serial cable replacement.
Supports Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
Built-in chip antenna included
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-ESD200: Class 2, Nom. 30meters
Parani-ESD210: Class 2, Nom. 30meters, up to 300m using patch antenna
Easy to use Windows configuration tool available.
No external drivers required.
Go(scroll down) to Reference Table below……..
Parani-ESD200
Parani-ESD210
Serial Interface
UART Interface, 2.54mm Header 1x4x2, 1200~230 Kbps
CTS/RTS flow control: Default
Bluetooth Interface
Bluetooth v1.2
Class 2
Level – Max. 4dBm
Protocols – RFCOMM, L2CAP, SDP
Profiles – General Access Profile, Serial Port Profile
Working distance
ESD200 :
Nominal 30 meters
ESD210 :
Default Antenna – Default Antenna 30 meters
Default Antenna – Dipole Antenna 50 meters
Dipole Antenna – Dipole Antenna 80 meters
Patch Antenna – Dipole Antenna 150 meters
Patch Antenna – Patch Antenna 300 meters
Max. Tx power
+4dBm
Receive Sensitivity
-80dbm
Antenna gain
Chip : 0dBi, Stub : +2dBi, Dipole : +3dBi, Patch : +9dBi
Configuration
ParaniWin, ParaniWizard, ParaniUpdater
Modem AT command set
Diagnostic LED
Power, TXD, RXD, DCD and DTR LED on Jig board
Power
3.3VDC
Nominal current consumption
-ESD100/110 : 70mA @ 3.3Vdc approximately
-ESD200/210 : 40mA @ 3.3Vdc approximately
Environmental
Operating temperature: -10’C to 55’C
Storage temperature: -20’C to 70’C
Humidity: 90% Non-condensing
Physical properties
Dimension(LxWxH)
– 18 x 20 x 11.7(mm)
– 0.7 x 0.78 x 0.47(in.)
Weight: 4g
Weight: 14g
MTBF
556.53 Years
562.74 Years
Regulatory
Approvals
FCC Part 15 Subpart C Section 15.247
ETSI EN 300 328
ETSI EN 301 489-1
ETSI EN 301 489-17
EN61000-3-2, EN61000-3-3
MIC
SIG QDID
Warranty
1-year Limited Warranty
Brand
Sena
“Whats in the Box?” ESD210SK-01
Includes:
1x ESD210OEM Module
1x SAT-G01 : Parani-SAT Stub Antenna-SMA Male-Left Handed
1x EEC-G01 : Parani-EEC 15cm Antenna Extension Cable
1x Jig board
1x DC Power Adapter
1x Serial data cable
1x CD-ROM
