F3-6502-R Intellian FB500 FleetBroadband Antenna Unit
F3-6502-R Intellian FB500 FleetBroadband Antenna Unit
Compatibility/Application: This is the Antenna unit only for Intellian FB500 Systems only
In this Pack:

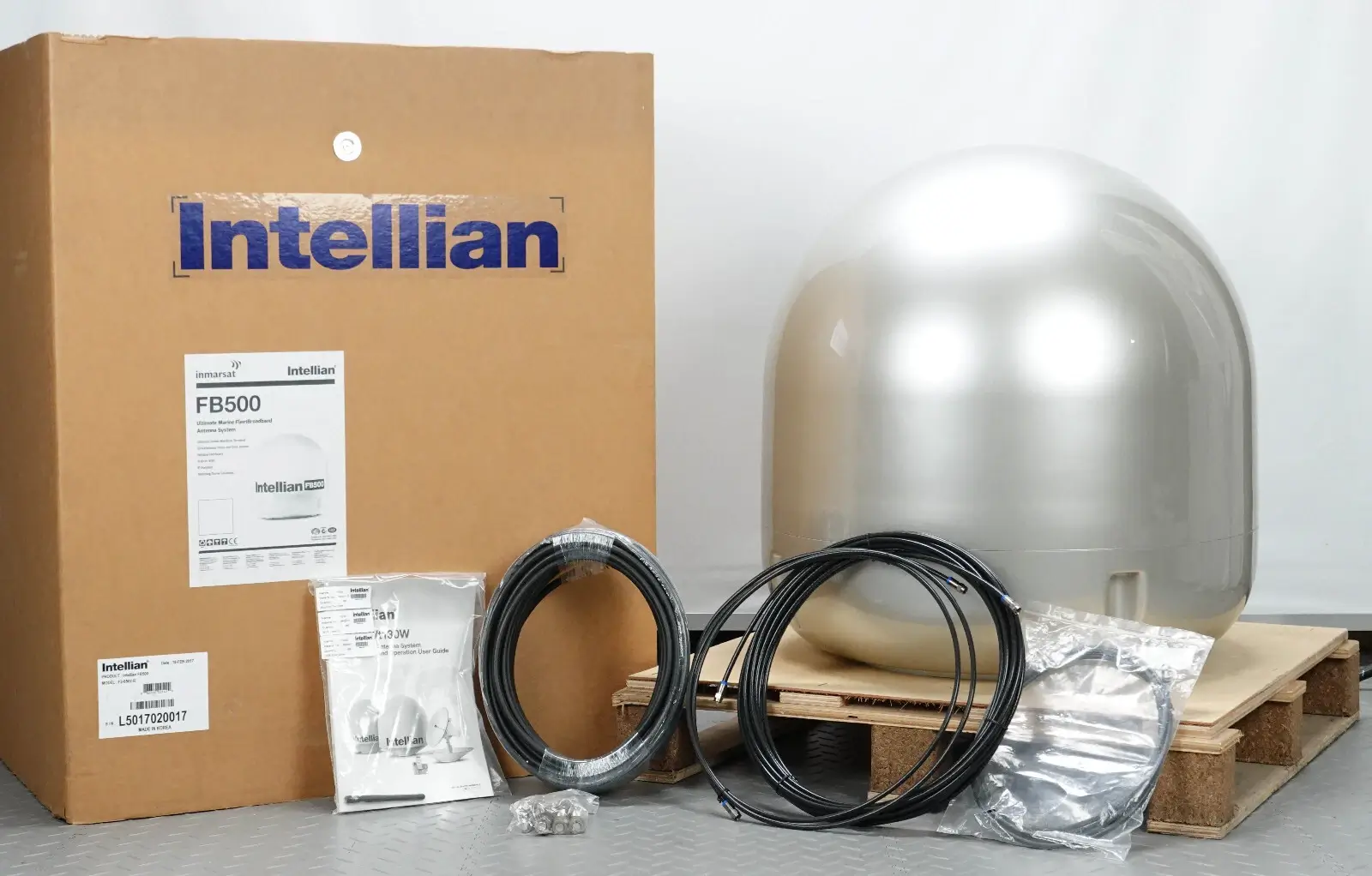

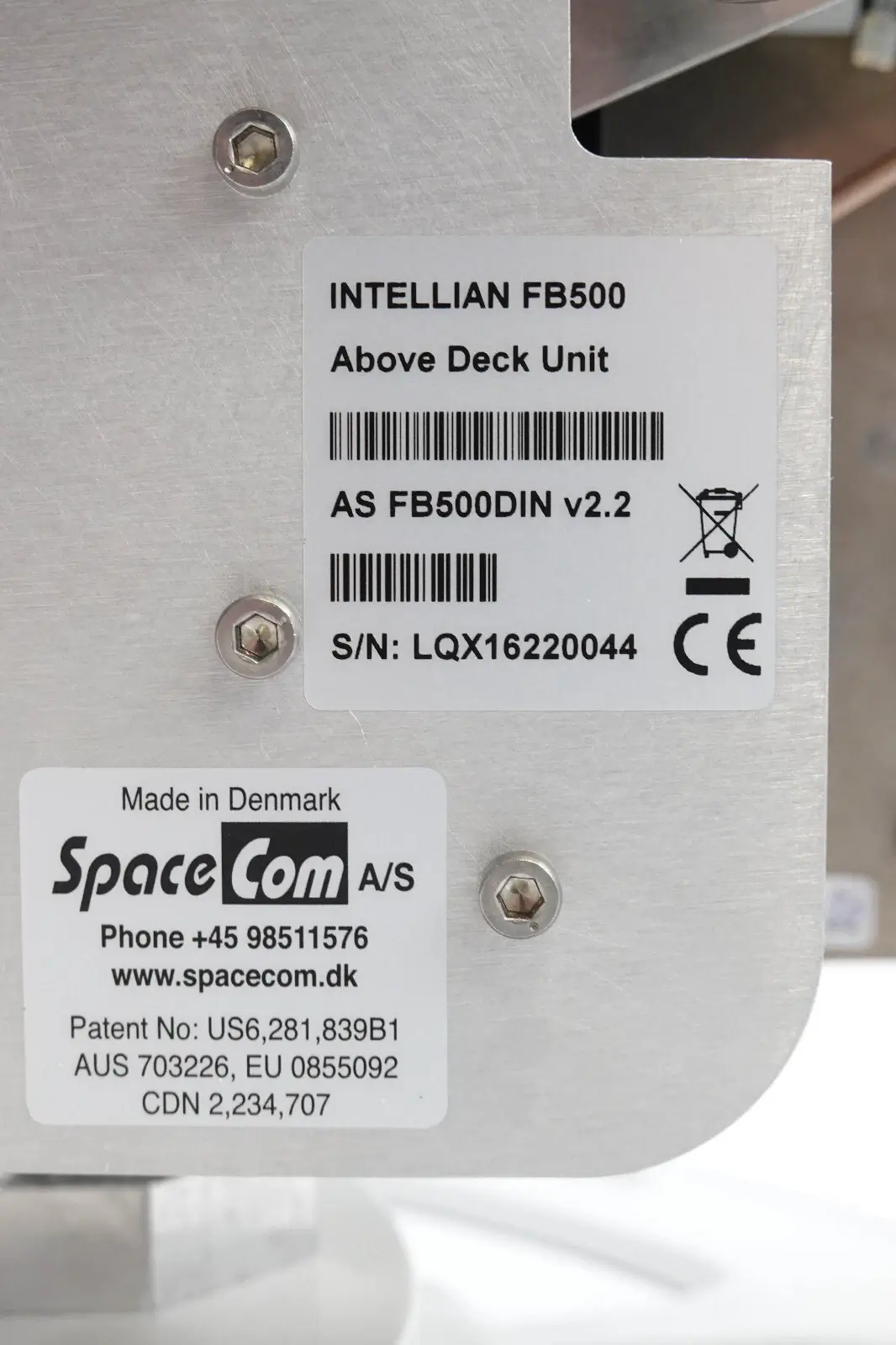

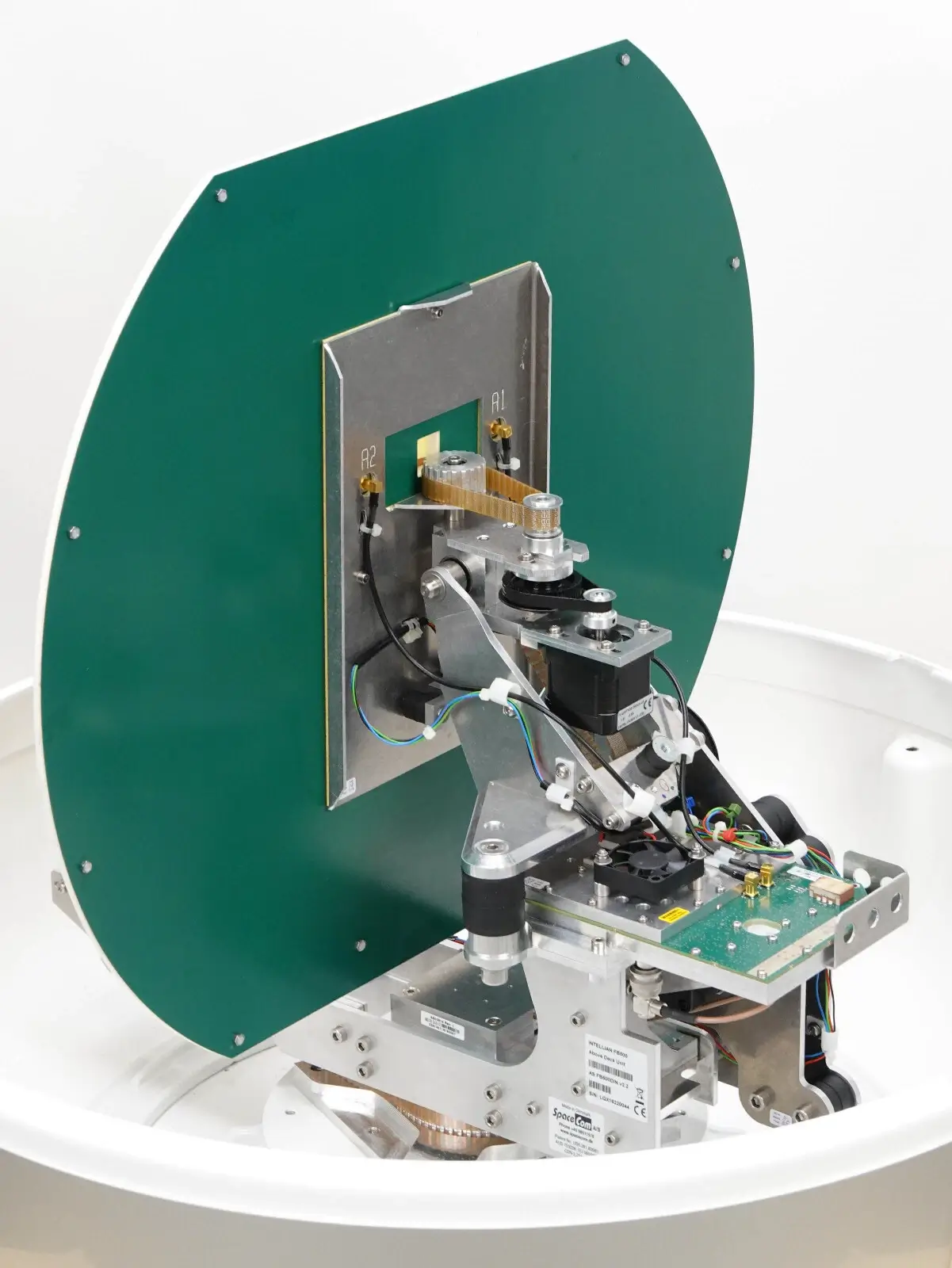

- Intellian FB500 Antenna unit and sundry factory spare parts/accessories(unspecified)
NOTE: Please enquire for the current inclusions list from Intellian(subject to change without notice)
INFO REFERENCE FOR F4-A500-S SYSTEM – BELOW***************************
F4-A500-S Intellian FB500 FleetBroadband System, 30m cable
Intellian FB500 is the newest terminal for Inmarsat’s FleetBroadband service, with simultaneous voice and data connectivity up to 432 Kbps.
The FB500 has been designed to work equally well as part of an FX installation or as a fully featured stand-alone terminal. Intellian FB500 ensures resilient and reliable connectivity at sea.
In this Pack
- FB500 ADU
- FB500 BDU(Standard Type)
- F3-3636 WiFi Antenna for BDU
- F3-3607 Primary Handset, wired/corded, 1m(for FB500/250/150)
- F3-3610 Wall Mount Cradle for Primary Handset
- F3-3613 DC-DC Power Cable, 3m for Standard Type BDU only
- F3-3608 Ethernet Cable (1.5m)
- F3-3609 Telephone Cord (1.8m)
- F3-3611 GPIO Cable 8-pin (1m)
- …. and the FB500 Installation Accessories comprised of the following:
- F3-3615 Ground Stud Assembly
- Hex. Bolt x 5 (FB250:M8x35L, FB500:M8x50L)
- Hex. head Wrench Bolt x 4 (M6x20L)
- Flat Washer x 5 (M8)
- Spring Washer x 5 (M8)
- Dome Washer x 5 (M6)
- F3-3619 Coax Cable, RF for Antenna, 30m
- User and Installation Manual
Extended RF Cable – Guide
- 25m LMR240 – Attenuation (dB/100m): 33.6 , Attenuation (dB/m): 0.336
- 50m LMR400 – Attenuation (dB/100m): 17.5 , Attenuation (dB/m): 0.175
- 85m LMR600 – Attenuation (dB/100m): 11.3 , Attenuation (dB/m): 0.113
Lower total cost of ownership
The FB500 is a highly reliable terminal that is easy to install and has a wide range of features and functionality that reduces the amount of additional equipment required. It minimizes air time costs through automatic WAN switching and preventing out of policy usage. The terminal comes with a market leading 3 year parts and 2 year labor warranty.
SYSTEM HIGHLIGHTS
⬥ Connects to Inmarsat’s ELERA network using their latest
L-band modem
⬥ Designed for use as part of an FX installation or as a
stand-alone terminal
⬥ FX approved and softNSD qualified
⬥ ‘All in one’ solution that includes:
– Automatic switching between WAN and satellite connection
– WiFi antenna and modem
– firewall
– soft PABX
⬥ GMDSS ready (Maritime Safety Terminal compatible)
⬥ Easy installation and commissioning
⬥ AptusLX, intuitive yet powerful terminal management software
A perfect companion
The FB500 can be paired with one of Intellian’s Global Xpress (GX) terminals to provide an outstanding Fleet Xpress (FX) solution. It is easily integrated using Fleet Edge and comes with a comprehensive, documented API library.
Primary Handset Features
The Primary Handset is connected to the FBB UE using the dedicated HANDSET port and is powered directly from the BDU. Equipped with a large 2’, 65K CSTN, 220 Liquid Crystal Display (LCD), Primary Handset not only acts as a standard phone that allows you to make/ receive voice calls, it also serves as a remote access UE (User Equipment) for you to access various configurations supported by the BDU.
Primary Handset offers the following features:
• Making standard CS voice calls
• Making standard/streaming PS background data connections
• Messaging (SMS) • User contacts (combined SIM and BDU storage)
• Speed dial • Call logs
• Managing BDU security settings
• Accessing BDU settings that includes: o Ethernet o Ciphering control o Satellite selection o Supplementary services o Transceiver restart o Limited factory reset • Displaying various BDU status and information • Local handset configurations
Technical Specification – Intellian FB250/500 Fleetbroadband Terminal
ADU
- FB500/500R: 28.3 x 27.6 in (72cm x 70cm) / 34.1 lbs (15.5kg)
- FB250/250R Standard: 11.8 x 10.9 in (29.9 x 27.7cm) / 6.6 lbs (3.0kg)
- FB250/250R Intellian i2 Matching Dome: 14.7 x 15 in (37 x 38.1cm) / 7.27 lbs (3.3kg)
- FB250/250R Intellian i3 Matching Dome: 16.9 x 17.3 in (43 x 44cm) / 10.58 lbs (4.8kg)
- FB250/250R Intellian i4 Matching Dome: 19.7 x 21.2 in (50 x 54cm) / 11.02 lbs (5kg) FB500/500R: 28.3 x 27.6 in (72cm x 70cm) / 34.1 lbs (15.5kg)
BDU
- FB250/500- Standard Type BDU: 36 x 25 x 6.7cm (14.1×9.8x 2.6 in) / 3.9kg (8.5lbs)
- FB250R/500R – 19” Rack mount Type BDU: 43.1 x 38.1 x 4.4cm (17 x 15 x 1.7 in) / 4.8kg (10.5lbs)
Primary Handset
- 5.5 x 2.2 x 0.8 in (14.2 x 5.6 x 2.2 cm) / 0.8 lbs (0.39 kg)
Environmental Conditions
- Operating Temperature-25°C ~ +55°C / -13°F ~+131°F
- Operating Humidity [ADU] EN60945, [BDU] 95% non-condensing at +40°C
- Water Ingress [ADU] IP56, [BDU] IP31
- Approvals Inmarsat FleetBroadband / R&TTE / CE / FCC
- Warranty 3 Years Parts and 1 Year Labor
Global Services
- Voice Digital 4 kbps
- Voice Standard IP FB250: Up to 150 kbps FB500: Up to 432 kbps
- SMS Up to 160 characters (3G standard)
- FAX Group 3 (via 3.1KHz Audio)
- Airtime Service Inmarsat airtime
Frequency band
- Rx 1518.0MHz – 1559.0MHz
- Tx 1626.5MHz – 1675.0MHz
- Ch. Width [Rx] 10.5 – 189 kHz, [Tx] 21 – 189 kHz
Power Supply and Consumption – Standard Type BDU (FB250/FB500)
- DC Input Range 10 – 32V DC (isolated)
- Power (max) 150W @ 10 – 32V (including antenna)
Power Supply and Consumption – 19in Rack Mount Type BDU (FB250/FB500)
- AC Input Range 100~ 240 VAC (50/60Hz): 3.3A
- Power (max) 250W (including antenna)
WARRANTY
arranty This product is warranted by Intellian Technologies Inc., to be free from defects in materials and workmanship for a period of THREE (3) YEARS on parts and TWO (2) YEARS on labor performed at Intellian Technologies, Inc. service center from the purchased date of the product. Intellian Technologies, Inc. warranty does not apply to product that has been damaged and subjected to accident, abuse, misuse, non-authorized modification, incorrect and/ or non-authorized service, or to a product on which the serial number has been altered, mutilated or removed. It is required to present a copy of the purchase receipt issued by Intellian Technologies, Inc. that indicates the date of purchase for after-sales service under the warranty period. In case of failure to present the purchase receipt, the warranty period will begin 30 days after the manufacturing production date of the product purchased. Any product which is proven to be defective in materials or workmanship, Intellian Technologies, Inc. will (at its sole option) repair or replace during the warranty period in accordance with this warranty. All products returned to Intellian Technologies, Inc. under the warranty period must be accompanied by a return material authorization (RMA) number issued by the dealer/distributor from Intellian Technologies, Inc. and a copy of the purchase receipt as a proof of purchased date, prior to shipment. Alternatively, you may bring the product to an authorized Intellian Technologies, Inc. dealer/distributor for repair. Additional Terms and Conditions: The warranty(THREE (3) YEARS on parts and TWO (2) YEARS on labor) is effective only for products purchased since January 1st, 2017. 16
