Thales FlytLINK System

Designed for Business & Commercial Aviation, Military & Government, Rotorcraft and UAS, Thales FlytLINK Satcom solutions over the Iridium Network provide critical aerospace communications coverage for all operations in the air, anytime and anywhere.

FlightLINK CyberGateway

FlytLINK Cyber Gateway by Thales provides a secure solution for connecting aircraft to the external world while mitigating cyber threats.

Designed in compliance with the latest aviation cybersecurity regulations (ED203A), the system integrates encrypted communication, avionics security filtering, and wireless data offload capabilities.

FlytLINK Cyber Gateway ensures safe, seamless connectivity for cockpit operations, maintenance, and flight data transmission.

Applications:

• Military
• UAS
• Turbo Props
• Business jets
• Helicopters

The FlytLINK Satcom configurations support both Safety Services (4 LRU) and Non-Safety Services (3 LRU) for more tailored Customer voice and data based applications.

The Safety configurations provides a Design Assurance Level D Certified System that leverages Thales expertise in Cyber Security to provide secure three-way domain segregation across ACD, AISD and PIESD all in a single System.

The Non-Safety configurations provide two-way secure domain segregation for AISD and PIESD Services supported by different speed classes. Safety services Critical flight data offloading Two embedded Iridium 9523 Modules for Safety Services ACARS SBD (FANS/1A, CPDLC, ADS-C) Cockpit 4-wire voice.

Aircraft and mission operations Integration for enhanced in-air reporting, service logging, flight crew scheduling, aircraft monitoring Supports electronic flight bag pairing (EFB) Enables real-time weather and active aircraft tracking UAS BVLOS C2 over Certus.

Key LEO Technology Differentiators:

• SCM
• Global, Uniform Coverage Even at The Poles
• Robust Link Error Correction
• Channel Selection and Doppler shift adjusted each 8.3msec time slot
• Side Looking SV Acquisition minimizes near field obstructions
• Lightweight
• Robust Link Configurations:- 352/352 kbps- 700/352 kbps- 1.4Mb/352 kbps
• No Special Streaming Services Necessary = Lower OPEX for Operators
• Small Physical Size

Passenger connectivity Office in the Sky providing VoIP and other connectivity needs Supports text, e-mail, web browsing and streaming services

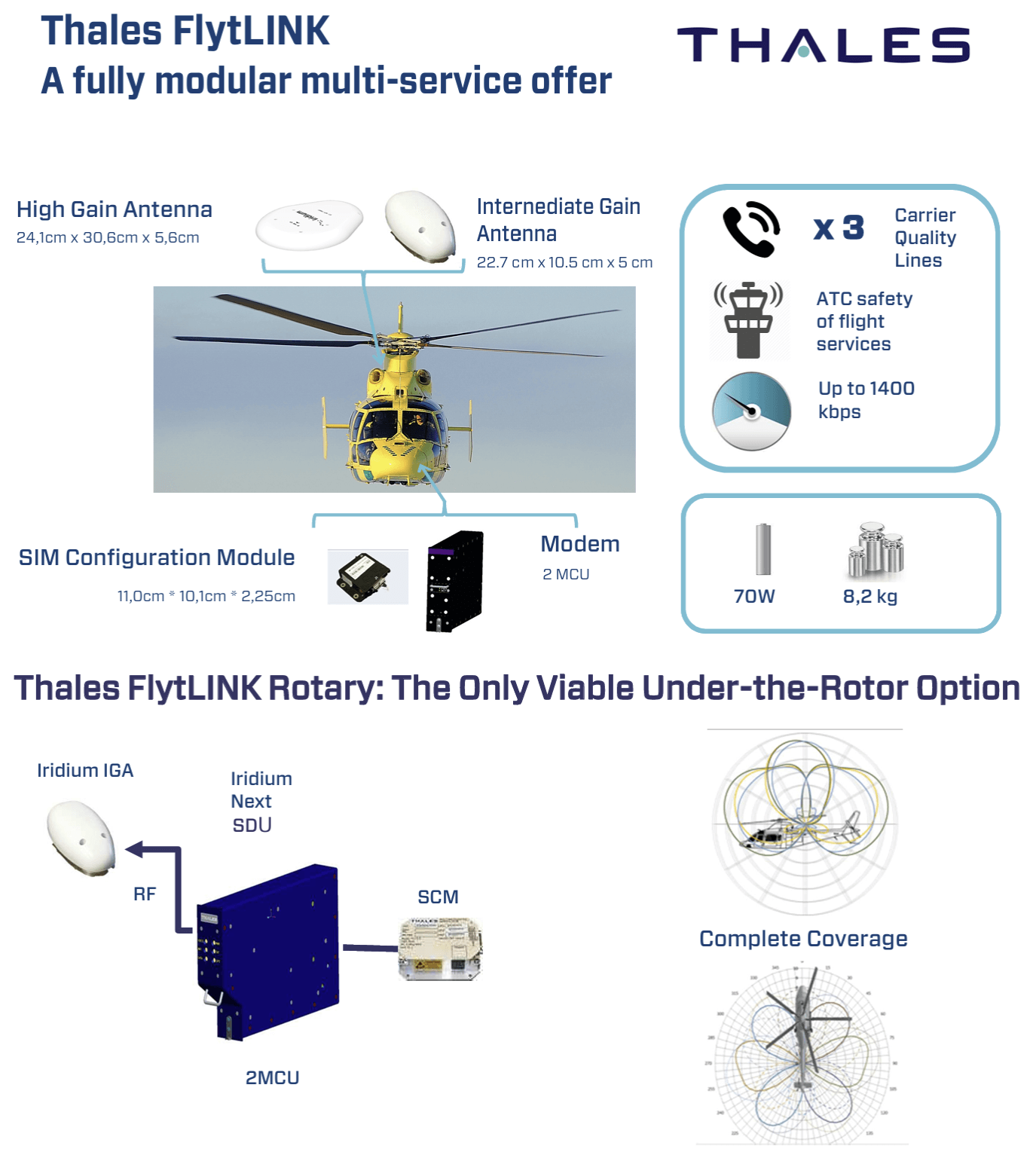

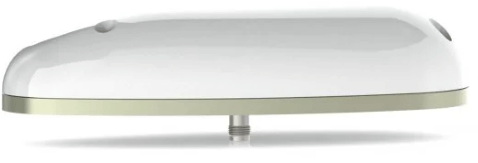

For the safety services, Thales FlytLink offers a shipset with a Satellite Data Unit (SDU), a SCM and both a high gain antenna (HGA) and a low gain antenna (LGA). The solution for non-safety services comprises a SDU, a SCM and a high gain antenna.

Thales FlytLINK on Iridium gives your critical aerospace operation global communications coverage.

It is the communications solution you can depend on in the air, anytime, anywhere. Whether you operate a large fleet or a single aircraft, this solution is designed to meet your unique challenges through a simple, adaptable and robust design.

Thales FlytLINK on Iridium operates using Iridium CertusSM broadband services over a network of 66 satellites that cover 100% of the globe, including poles and oceans.

It utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications.

So, no matter where your operation takes you, Thales delivers.

Complete Turn-Key Connectivity Solution

• Reliable satellite communications for cockpit and crew operations

• Delivering low-latency data applications and voice communications

• Provides 100% global, uniform coverage including oceans and polar regions

• Enables essential communications for critical operations and enhanced safety features

• Future-proofed solutions for next-generation higher speed services

• Simple, adaptable and robust to address the needs of your fleet, and your pilots and crews, anywhere

Thales FlytLINK gives your critical aerospace operations the global communications coverage it needs.

It is the communications solution that you can depend on in the air, anytime, anywhere.

Whether you operate a large fleet or a single aircraft, this solution is designed to meet your unique challenges through a simple, adaptable and robust design.

Thales FlytLINK operates using Iridium CertusSM broadband services over a network of 66 satellites that cover 100% of the globe, including the oceans and north/south poles.

Thales FlytLink and Iridium CertusSM combine to create an aviation platform that provides highly reliable, mobile and essential voice, text and web communications.

Reliable satellite communications for cockpit and crew operations
• Providing 100% global coverage including oceans and polar regions
• Enabling essential communications for critical operations and enhanced safety features
• Future-proofed solutions for next-generation higher speed services
• Simple, adaptable and robust to address the needs of your fleet, and your pilots and crews, anywhere
• Delivering data and voice communications at low latency

AIRCRAFT AND MISSION OPERATIONS

• Integration for enhanced in-air reporting, service logging, flight crew scheduling, aircraft monitoring
• Supports electronic flight bag pairing (EFB)
• Enables real-time weather and active aircraft tracking
• UAS BVLOS C2 over Certus

SAFETY SERVICES
• Streaming flight data
• Two embedded Iridium 9523 Modules for Safety Services
• FANS/1A (CPDLC, ADS-C)
• Push-to-Talk (PTT) voice, Cockpit 4-wire voice
• ACARS SBD

COCKPIT OPERATIONS
• Enhanced in-air reporting, service logging, flight crew scheduling, aircraft monitoring and other operational requirements
• Electronic flight bag pairing
• Real-time weather
• Active aircraft tracking
• Embedded 802.11n secured Wi-Fi access point
• 3x 2-wire voice channels
• Caller ID, 3-Way calling, call forwarding

LRU Technical Parameters

• Size 2MCU, 32.11 cm x 19.76 cm x 6.07cm
• Weight 3.2 kg
• Power 28VDC input, 2A max; 115VAC option
