HRC-24-11 NAL Data Kit for 9602-N Modem series, supports DC Power

HRC-24-11 NAL Data Kit for 9602-N Modem series

Description

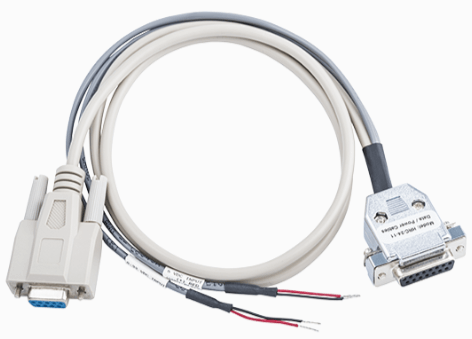

• Model HRC-24-11 is a data/power cable assembly designed to work with the 9602-N modems.
• The HRC-24-11 has a three-foot RS-232 cable for connection onto a computer and
• Two wires for DC power input to a 9602-NAL.

Specifications
Adapter Dimensions: 2.41” L x 1.96” W x 0.82” D
Adapter Weight: 72g(2.5oz)
Kit Weight: 210g(7.4oz):

Connections
DB-25(Female) for modem I/O
DB-9(Female) for computer I/O
Mouser Locking Plug for DC power input(mates with Kobiconn part# 171-0725-EX)
MOUNTING HOLES TO MODEM.(2X 4-40 SOCKETHEAD SCREWS PROVIDED)
