HRC-24-8R NAL Data Kit for A3LA-R Modem series, supports DC, DPL Voice Handset - Image 1
Click to enlarge

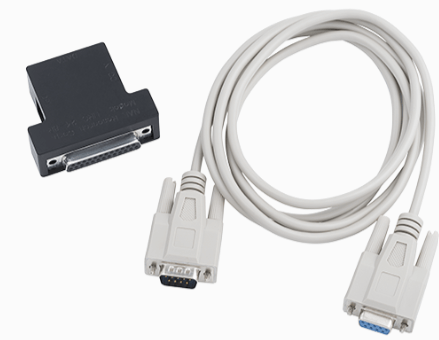

HRC-24-8R NAL Data Kit for A3LA-R Modem series, supports DC, DPL Voice Handset

SKU: HRC-24-8R

$274.63 Inc. GST

HRC-24-8R NAL Data Kit for A3LA-R Modem series

NOTE: DPL Handset and LA-3098 AC/DC Power Adapter are available, but NOT included

Description

  • Model HRC-24-8R is a DB25 data kit designed to work with A3LA-R modem series.
  • The HRC-24-8R allows simultaneous direct attachment of a DPL handset, a 9-pin RS-232 cable and  DC power input(via LA-3098) to a modem.
  • The DC input(for LA-3098) provides power to both the modem as well as to the DPL handset.

Specifications
Adapter Dimensions: 2.41” L x 1.96” W x 0.82” D
Adapter Weight: 72g(2.5oz)
Kit Weight: 210g(7.4oz):

Connections
Standard RJ-45 for DPL handset I/O
DB-25(Female) for modem I/O
DB-9(Female) for computer I/O
Mouser Locking Plug for DC power input(mates with Kobiconn part# 171-0725-EX)
MOUNTING HOLES TO MODEM.(2X 4-40 SOCKETHEAD SCREWS PROVIDED)

Brand

NAL Research
