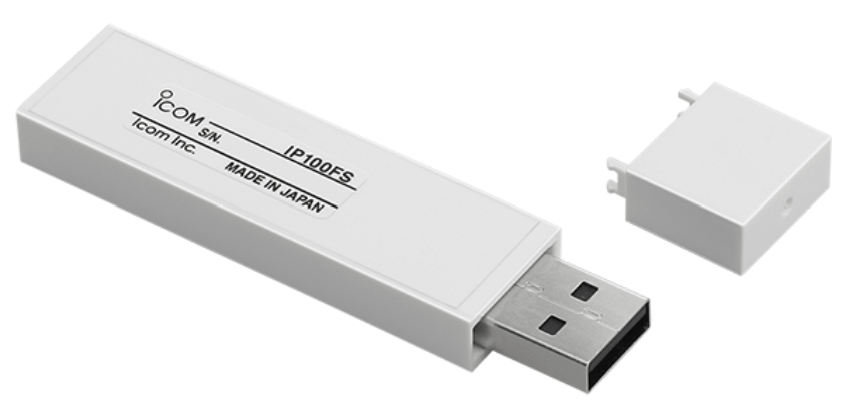

IP100FS Icom WLAN Transceiver APP
IP100FS＜WLAN Transceiver APP＞
Full-Duplex Communication That Works Over a Wireless LAN and IP Network*

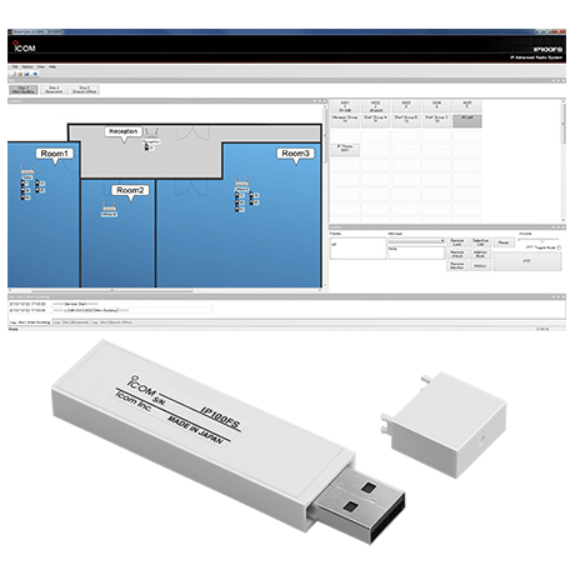

Remote Communicator
• Windows™ PC based communication app
• Obtains location info of each radio based on the access point being used
• Management functions such as remote lock function

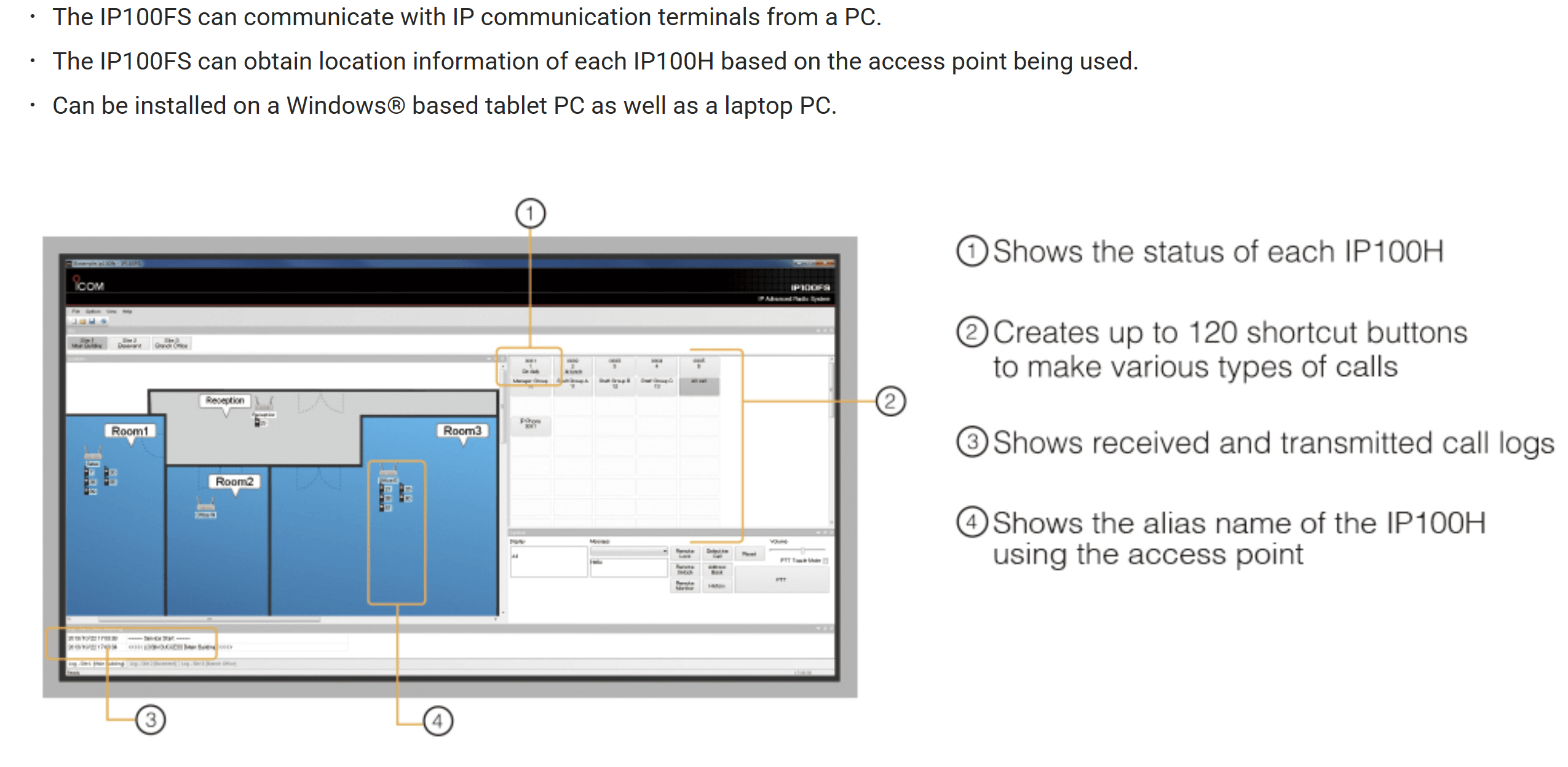

Basic Features
- The IP100FS can communicate with IP communication terminals from a PC.

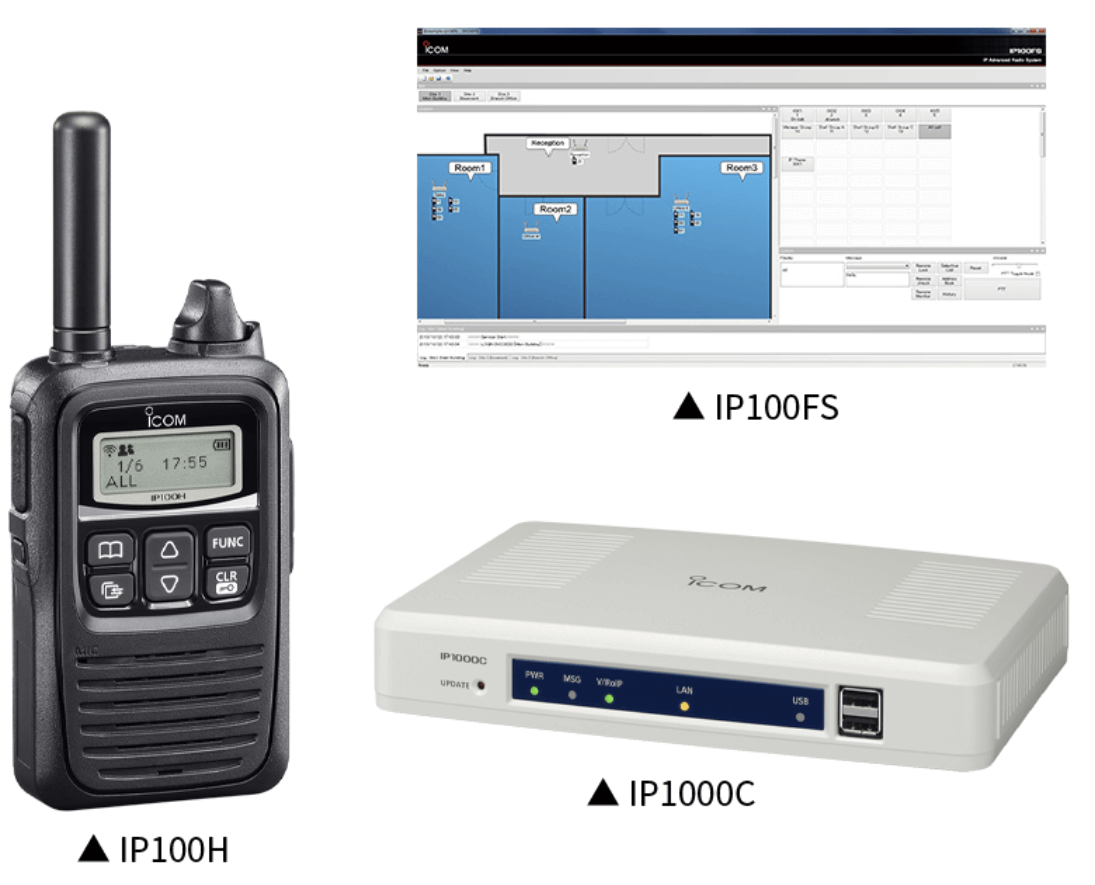

- The IP100FS can obtain location information of each IP100H based on the access point being used.
- Can be installed on a Windows® based tablet PC as well as a laptop PC.
IP110H REFERENCE/INFORMATION BELOW**************************************************************************
IP110H Icom WLAN Transceiver
Real-time Voice Communication Tool that Instantly Connects You with Your Team
In this Pack:
- WLAN Unit,
- Belt clip
- USB cable (USB Type-A/USB Type-C)
- NOTE: Some accessories are not supplied, or the shape is different, depending on the transceiver version
WLAN Radio System Features
Scalable System Using Wireless LAN Network
Deploying wireless access points over an IP network, the WLAN radio system can expand the communication range.
License-Free Communication
The WLAN radio uses common wireless LAN network frequencies, which do not need communication fees for running the system.
Communication with Dispersed Sites
When connected over the Internet VPN, an WLAN radios can communicate between dispersed sites.
Simultaneous TalkListen Function
The WLAN radio provides full duplex communication like a telephone conversation and one-to-many communication.
TalkListen works with or without external headset.
IP110H Features
・All, Group, Talkgroup, Individual and Telephone Calls
・1000mW loud audio from internal speaker
・Optional Bluetooth® headset, VS-3
・IP67 / IP54 waterproof and dust-tight
・Battery can be charged through the USB Type-C™ cable
・More than 20 hours of operating time (Tx 1: Rx 1: Stand-by 8 duty ratio)
・WPA2, WPA-Enterprise security
・Other features
- Audio is recorded for instant review
- Vibration alert function
- Motion/Stationary detection, man down and lone worker functions
- Over-the-Air programming
- Compatible with the IP100H WLAN radio
Related devices
IP100FS
Remote Communicator
• Windows™ PC based communication app
• Obtains location info of each radio based on the access point being used
• Management functions such as remote lock function
VE-PG4
RoIP Gateway
(WLAN Radio controller built-in )
・Capable of controlling up to 50 WLAN radios (including IP100FS)
・Interconnects with IP Phone and other digital and/or analog radio systems
IP1100CV
WLAN Radio Controller
・Capable of controlling up to 300 WLAN radios
(including IP100FS)
・VPN function
AP-95M
Wireless LAN Access Point
・IEEE 802.11 a/b/g/n/ac compliant
wireless LAN access point
・PoE (Power over Ethernet) capability
Management Features
- SYSLOG and SNMP
- Telnet and SSH
- Ping Test and Traceroute Test
- Abnormal condition monitoring, such as LAN port link-down and SIP server registration error
- Administrator password
- SNTP server
- Security slot
IP110H＜WLAN Transceiver＞
Specifications
| IP110H | |
|---|---|
| Wireless Standards | IEEE802.11 a/b/g/n/ac |
| Frequency Range *1 | 2.4–2.4835 GHz, 5.15–5.35, 5.47–5.85 GHz |
| Security | WEP (64/128-bit), WPA2-Enterprise, WPA-Enterprise, WPA-PSK, WPA2-PSK |
| AF Output Power | 1000 mW typ. (Internal SP) / 300 mW typ. (External SP) |
| Operating Temperature | –10°C to +60°C, +14°F to +140°F |
| Charging Temperature | 0°C to + 60°C, + 32°F to + 140°F |
| Dimensions | 57 × 96.9 × 25.1 mm, 2.2 × 3.8 × 1.0 in (W × H × D; Projections are not included) |
| Weight (approximate) | 146 g, 5.2 oz |
| Operating Time | More than 20 hours (TX 1 : RX 1 : Stand-by 8 duty ratio) |
| Charging Time | 4 hours (With BC-257 and BC-228) |
| Supplied Accessories | OPC-2480 USB charger cable, MBB-1 belt clip |
*1 Authorized frequency range and channels may differ depending on the country.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
| Ingress Protection Standard | |
|---|---|
| Dust & Water | IP67 (Dust-tight and Immersion) IP54 (Dust and Water resistant) |
IP100FS＜Remote Communicator＞
System requirements
| Operating System | Windows™ 11, Windows™ 10 (32-bit/64-bit), Windows™ 8.1 (32-bit/64-bit) (Except for Windows™ RT) |
|---|---|
| CPU | Intel® Core™ 2 Duo Processor E6600/ 2.4 GHz or faster |
| System Memory | 2 GB or more |
| Hard Disk Space | 1 GB of disk space (for saving log files) |
| Display Resolution | Full HD (1920×1080 pixel) recommended / XGA (1024×768 pixel) at least |
| LAN | 100BASE-TX or faster Ethernet interface |
| USB | USB1.1 / 2.0 |
| Other | Speaker, microphone or headset |
All stated specifications are subject to change without notice or obligation.
