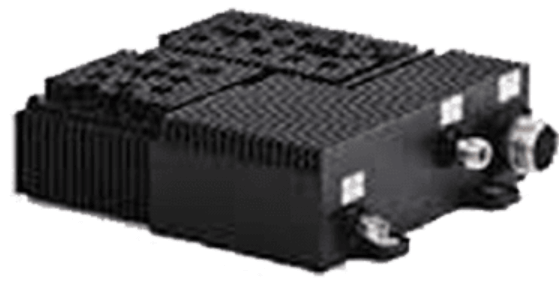

IPLD-200 Honeywell High Power Low Noise Amplifier Diplexer - Image 1
Click to enlarge

IPLD-200 Honeywell High Power Low Noise Amplifier Diplexer

SKU: IPLD-200





Aspire-200-DOMESTIC_MAIN-BR_hon-aero-n61-1726-000-003-aspire200helo-brochure-en.pdf Aspire-200-accessories_BR_hon-aero-n61-1726-000-003-aspire200helo-brochure-en.pdf Aspire-200-SYSTEM_BR_hon-aero-n61-1726-000-003-aspire200helo-brochure-en.pdf

Integrated High-power/Low-noise Amplifier Diplexer (IPLD)

  • The IPLD connects the HDU-200 to the externally mounted aircraft antenna.
  • With an integrated higher-power amplifier, it provides optimal performance of the voice and data communication services over SwiftBroadband or Swift 64, even in adverse conditions.
  • The unit’s integrated Type F diplexer ensures compliance with SwiftBroadband service requirements. The IPLD is rated for installation outside the pressure vessel.

Brand

HONEYWELL
