IRIDN0125 Iridium 9523 Core Transceiver, Module only
IR-00-CLBT1101-9523 Iridium 9523 Core

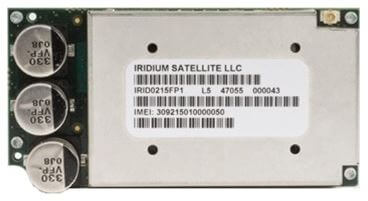

Iridium Core 9523 is Iridium’s smallest, lightest and most advanced voice and data satellite transceiver module ever, enabling simplified global voice and data connectivity through the world’s furthest reaching network.
Over 90% more compact than our previous model and featuring standardized connectors, it easily integrates into new partner products to reach previously under-served consumer and vertical markets – and drive global communications in ways never thought possible.
$1,644.50 Inc. GST
IR-00-CLBT1101-9523 Iridium 9523 Core
New possibilities From single or multi channel communication platforms for maritime, aviation and land mobile markets to highly capable, feature-enhanced handheld smart devices and unattended sensors, the Iridium Core 9523 module delivers cost effective satellite voice and data communications.
Powerful capability Iridium Core 9523 supports all Iridium voice and data services. It delivers the capability needed to develop innovative communications devices, and the technology backbone for applications such as GPS and location-based services, Wi-Fi and Bluetooth.
Simplified integration Iridium Core 9523 features standardized connectors, simplified PCB integration and ultra compact form factor.
Partners can easily mount Iridium Core 9523 directly onto their application board – enabling optimization through shared components and power sources.
BASIC FEATURES
– Pole-to-pole global coverage
– Ultra compact form factor
– Single-board transceiver
– Standardized connectors
– Voice, Circuit Switched Data and RUDICS
– Short Burst Data (SBD) capable
– Direct PCB integration
– FCC, Industry Canada, and CE approval*
* For applications using an antenna with a gain of up to 3dbi.
IR-00-CLBT1101-9523
Partners can easily mount Iridium Core 9523 directly onto their application board – enabling optimization through shared components and power sources.
Capabilities
Iridium Voice,
SMS,
Circuit Switched Data and RUDICS
Maximum mobile originated SBD message size: 1960
Maximum mobile terminated SBD message size: 1890
Mechanical
Length: 70.44 mm
Width: 36.04 mm
Height: 14.6 mm (reservoir capacitors) 8.9 mm (screen can)
Weight: 32g
Environmental
Operating Temp. -30ºC to + 70ºC
Operating Humidity ≤ 75% RH Storage Temp. -40ºC to + 85ºC
Storage Humidity ≤ 93 % RH RF Parameters
Frequency Range 1616 MHz to 1626.5 MHz
Duplexing Method TDD (Time Domain Duplex)
Input/Output Impedance 50 Ω
Multiplexing Method TDMA/FDMA
DC Power Input VBAT
Power Input Specifications
Nominal Voltage +3.7 V
Voltage Limits +3.2 V to +6 V
Maximum Current 500 mA
VBAT Typical Current at Nominal +3.7 V
Standby Current 70 mA Peak
Current during Call 300 mA
Average Current during Call 110 mA
VBOOST Power Input Nominal Voltage +27 V
Absolute Maximal Voltage +35 V
Maximal Recommended Voltage +32 V
Minimal Voltage during Call Transmit Burst +10.5 V
Maximum Current 1 A
VBOOST Power Consumption Typical Average Power during Call 2.3 W
Maximum Average Power during Call 3.1 W
Brand
Iridium
“WHAT’S IN THE BOX?” IR-00-CLBT1101-9523
1x 9523 Core Module ONLY
