IRT NX SATCOM SYSTEM FOR IRIDIUM® – HIGHER DATA SPEEDS AND LOWER SERVICE COSTS

Reliable SATCOM offering outstanding benefits

• Connect with Collins Aerospace to take advantage of the Iridium® global constellation of more than 70 satellites for your airborne broadband needs.
• As a service provider for Iridium’s satellite solutions, Collins can help you meet your SATCOM requirements with high data rate capability and lower weight, drag and power usage than with other SATCOM offerings.
• With over 3,000 legacy Iridium systems fielded already, we’re adding Iridium Certus® services to our comprehensive suite of aircraft connectivity applications for commercial, government and ARINC Direct SM business customers.

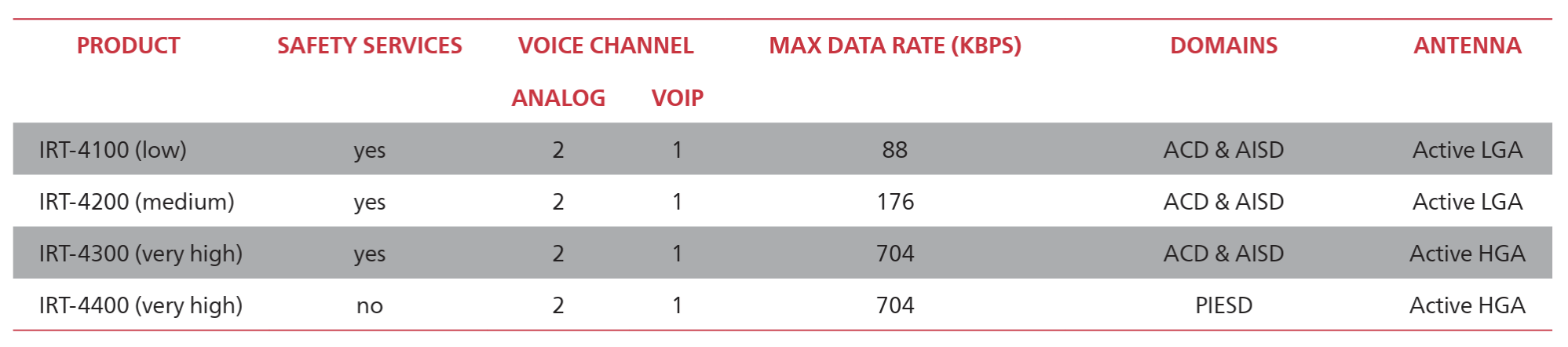

• Current data rates up to 704 kbps.

IRT-NX-HGA Whats in the Box?

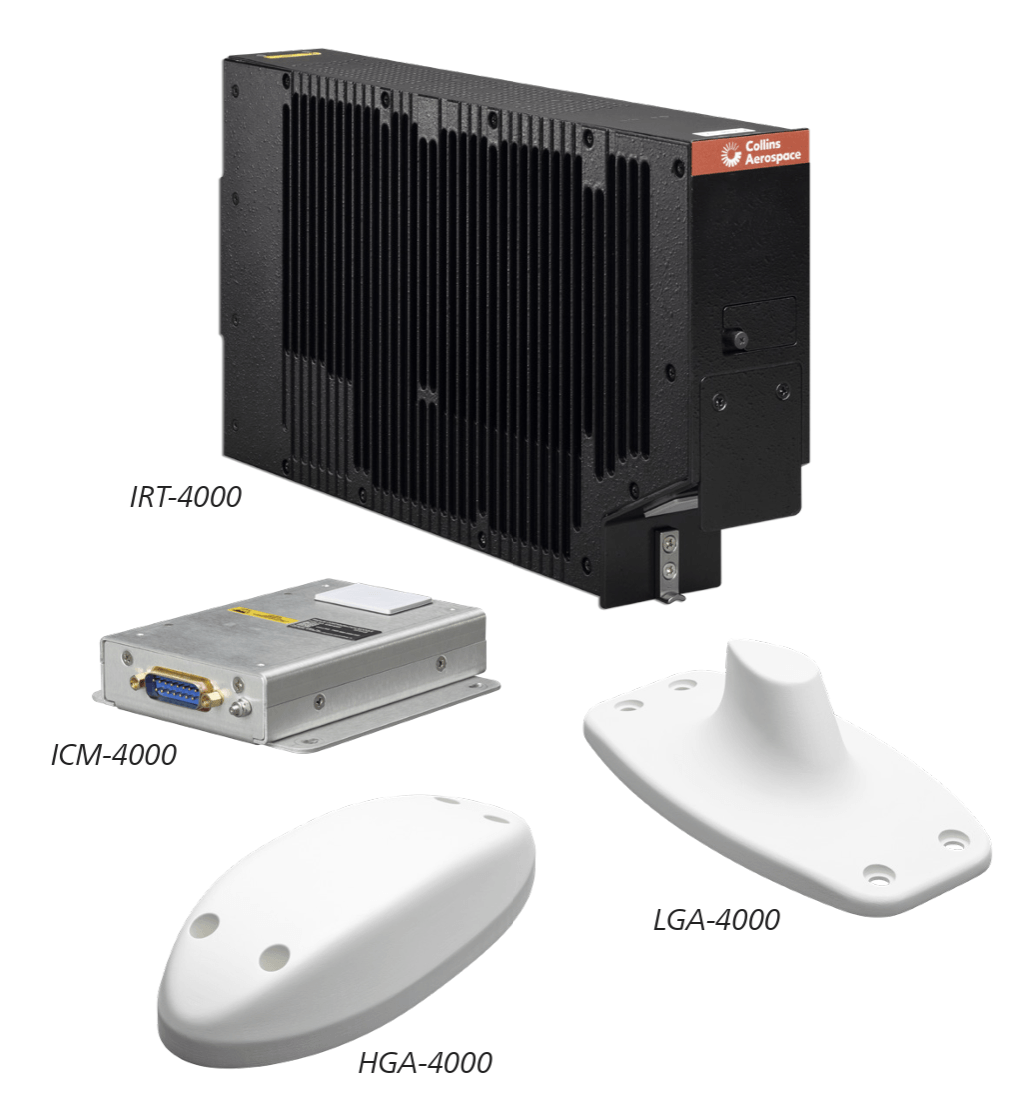

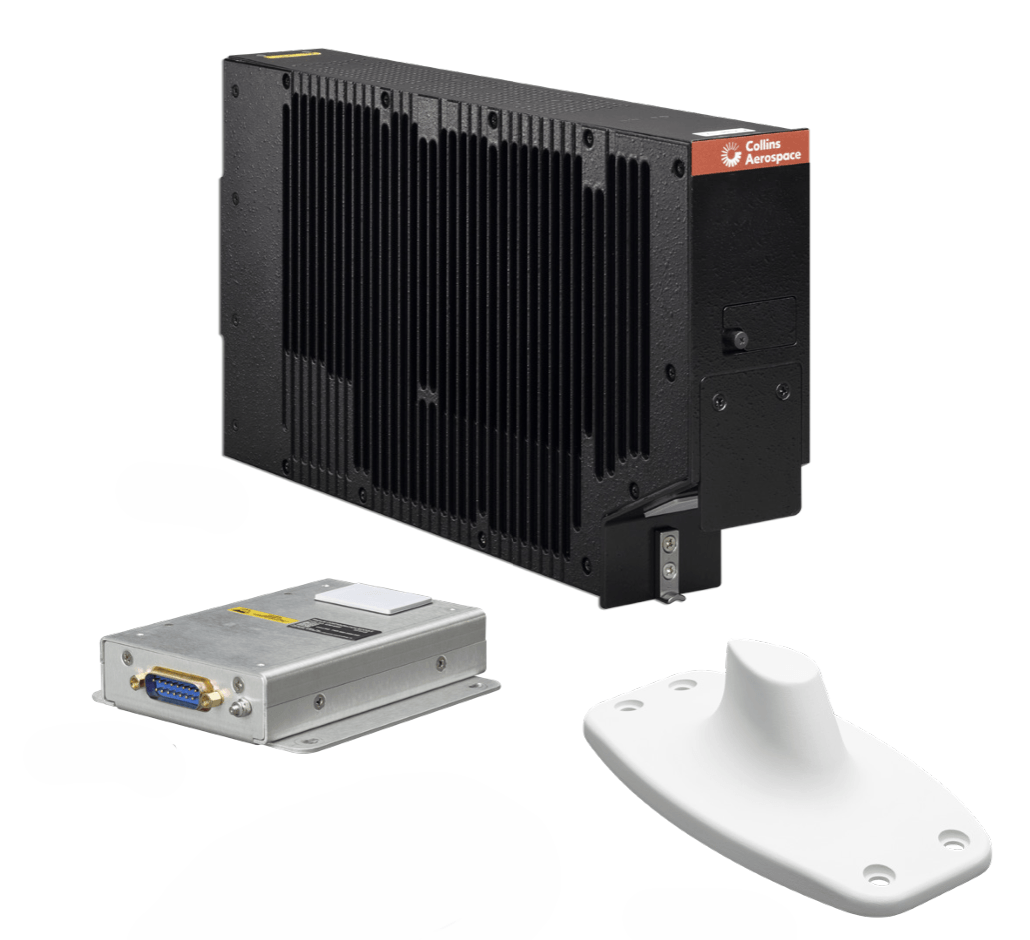

• IRT-4000 SDU (Satellite Data Unit)
• ICM-4000 SCM (Satellite Configuration Module)
• LGA-4000 LGA (Low  Gain Antenna)
• Sundry Installation Hardware
• Documentation – User Installation Manuals and Drawings

WHAT’S NEXT? Iridium replaced the legacy GEN 1 constellation with the NEXT constellation.

The new constellation provides for faster worldwide data services.

When your aircraft accesses the new constellation through the IRT NX SATCOM system, you can take advantage of higher data rates and safety services for operations worldwide.

Other benefits associated with our IRT NX SATCOM system for Iridium terminals and antennas include lower weight, an antenna footprint with minimum drag, lower power usage and no JTAB test requirement.

MUCH MORE THAN A SERVICE PROVIDER

• The level of experience we bring to airborne connectivity is high.
• We continue to invest in VHF, HF and satellite communication products and are a value-added manufacturer for the design and production of Iridium Certus systems including antenna.
• You can count on highly reliable and robust solutions, along with superior customer service.

KEY FEATURES & BENEFITS

• Cockpit Applications

– FANS/Safety Services

– GADSS/GAT

– SATCOM Voice

– EFB Services/SWIM

– Graphical/Crowd Sourced Weather

– Flight Plan Updates

– Flight Tracking

– Navigation Chart & Terrain Database Updates for Ipad or EFB

– Flight Data Recorder Streaming

– Mechanical Monitoring & Exterior Sensor Readings

– FOQA/MOQA

– Flight Profile Optimization

• Passenger Communications

– Voice, IP Fax- Text/Email

– Internet/VPN

– Social Media

– Low/Standard Resolution Video

IRT-NX-LGA SPECIFICATIONS

IRT-4000 satellite data unit

• Weight: 7.7 lbs.

• Size: 15.256” x 2.430” x 7.877”

• Input voltage*: 28 VDC

• Top-level assembly: 822-3585-XXX

• Installation drawing: 653-4690-001

ICM-4000 satellite configuration module

• Top-level assembly: 822-3584-XXX

• Installation drawing: 653-4691-001

• Size: 4.015” x 4.515” x 1.015”

• Weight: 0.48 lbs.

• Powered through SDU

LGA-4000 low-gain antenna

• Weight: 2.2 lbs.

• Size: 10.7” x 5.47” x 3.35”

• Powered through SDU

• Top-level assembly: 822-3587-001

• Installation drawing: 653-4462-001

• ARINC 771 #4 footprint hole pattern

• Weight: 3.4 lbs. • Size: 13.0” x 5.6” x 2.5”

• Powered through SDU

• Top-level assembly: 822-3586-XXX

• Installation drawing: 653-4463-001

• ARINC 771 #4 footprint hole pattern
