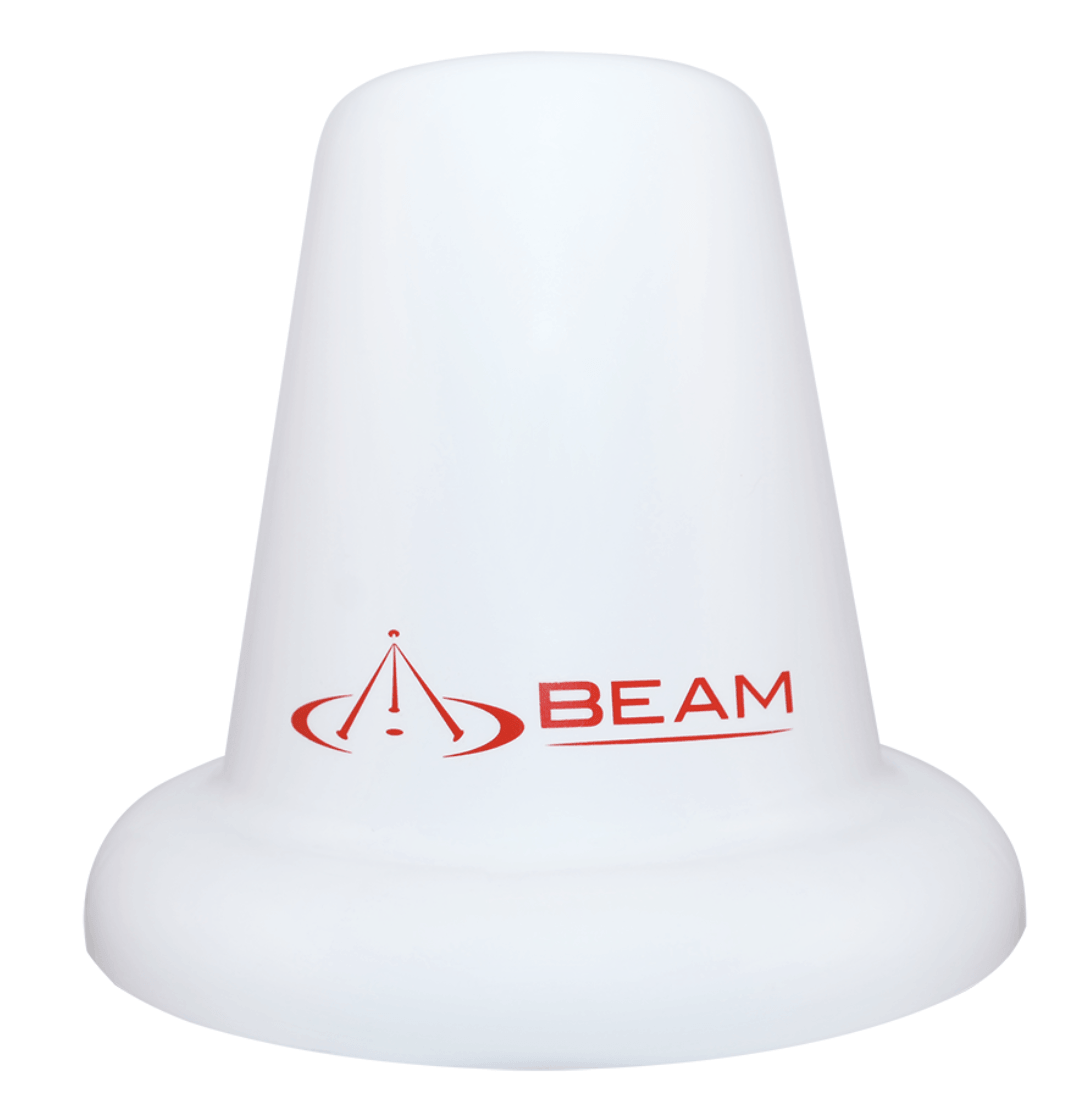

ISD700-SP Beam Inmarsat Passive Antenna, Directional (Fixed – Land)

ISD700-SP Beam Inmarsat Passive Antenna, Directional (Fixed – Land)

The Beam Inmarsat Fixed Directional Passive Antenna ISD700 is designed for reliable, continuous satellite communication in fixed installations.

Ideal for Inmarsat satellite systems, this passive antenna delivers strong performance for voice and data connectivity, making it a perfect solution for remote or off-grid applications where consistent satellite connectivity is needed.

Featuring a directional design, the ISD700 antenna allows for targeted signal reception, providing enhanced signal quality and reliability for Inmarsat communications. Its robust build and weather-resistant design ensure it performs well in harsh outdoor environments, making it a suitable choice for a variety of industries, including marine, transport, and remote work sites.

The Beam Inmarsat ISD700 antenna is a must-have for those requiring a dependable, cost-effective solution for satellite communication in fixed locations.

Specifications

• Weight: 0.9kg
• Dimensions: 231 x 142 x 142mm. U-Bolt 25.4mm diameter
• Material: ASA
• Mounting Type: Fixed Base Station
• Transmit (operational) Frequency: 1626.5 to 1660.5MHz
• Transmit(extended) Frequency: 1668.0 to 1675.0 MHz
• Receive (operational) Frequency: 1525.0 to 1559.0MHz 1575.42 ± 10.25MHz (GNSS (GPS) L1)
• Receive(extended) Frequency:1518.0 to 1525.0MHz
• Inmarsat (GSPS) Connector: SMA Female
• GNSS (GPS) Connector: SMA Female
• Operating and Storage Temperature: -40°C  to +70°C

ISD-700 Kit Contents

• Directional/Fixed Antenna
• 2 x U Bolts
• 4 x x Large Flat Washers
• 4 x x Nuts
• Screw with Hex
• Split Washer

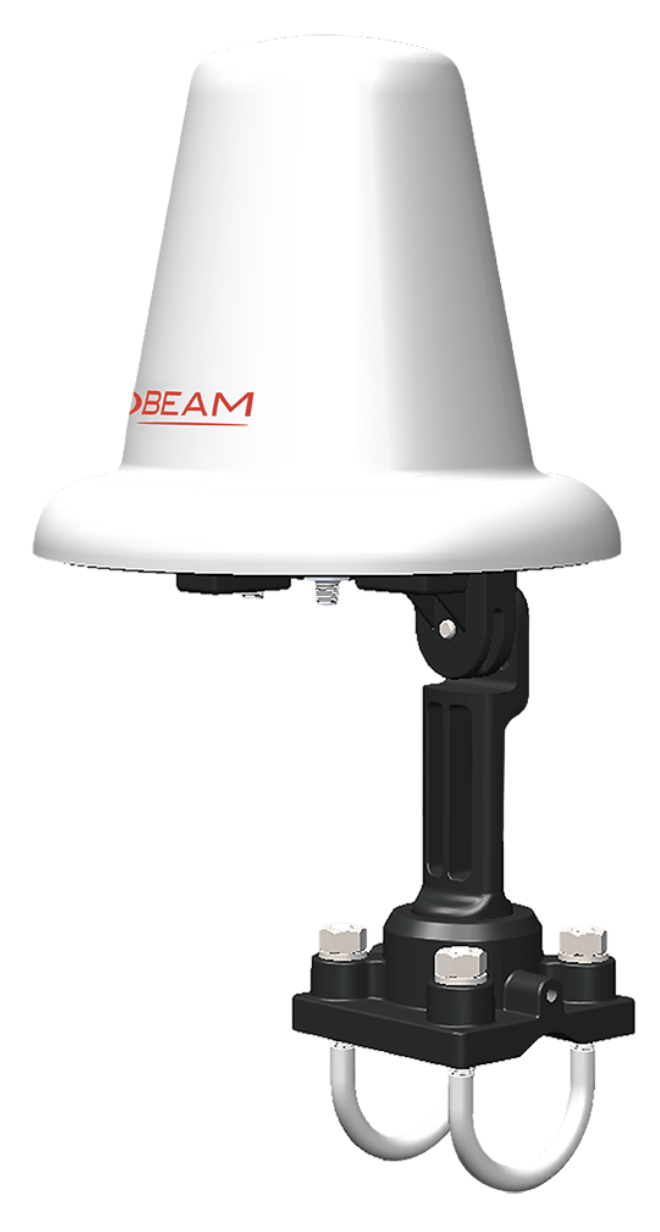

• Mounting Bracket
• Mounting Pole

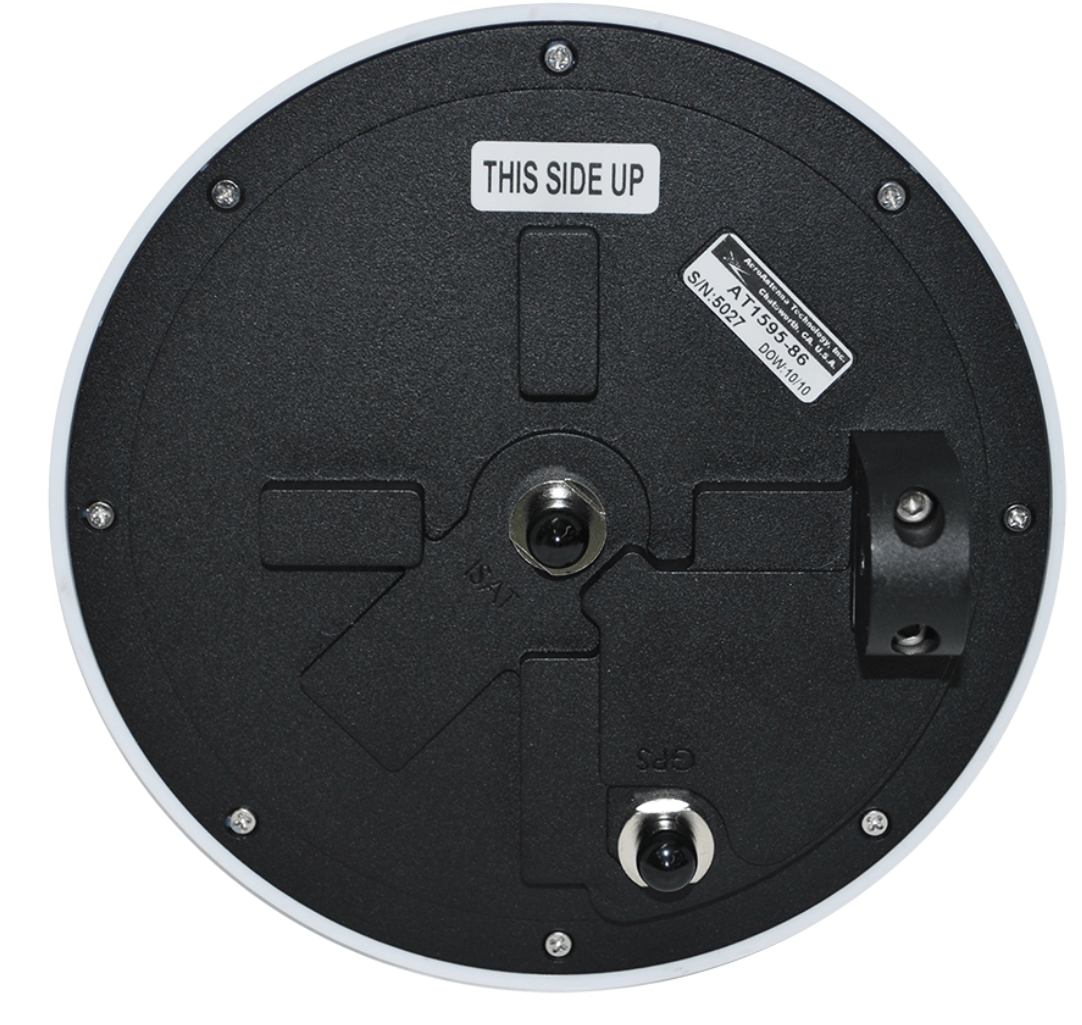

• Underside of antenna showing antenna and GPS connections
• Allen Key

Features

The Beam Inmarsat Mast/Pole Marine Active Antenna is designed for reliable satellite communication in marine environments. With a durable, weather-resistant build and easy installation on masts or poles, this antenna ensures optimal Inmarsat connectivity for voice and data, even in the most remote marine locations.

Directional Design: Focused signal reception for improved communication reliability.

Passive Antenna: Simple installation and low maintenance, requiring no power supply for operation.

Weather-Resistant Build: Durable and able to withstand harsh outdoor conditions.

Inmarsat Compatibility: Optimized for Inmarsat satellite systems, ensuring stable voice and data communication.

Fixed Installation: Ideal for permanent installations in remote locations such as marine vessels, transportation hubs, or field operations.
