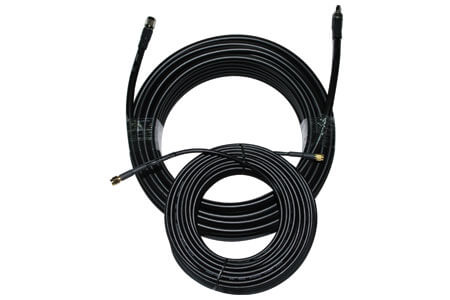

ISD937-SP Beam Inmarsat Cable Kit, for Passive Antennas, 20m

The Beam Inmarsat 20m Passive Cable Kit is designed specifically for fixed installations and is compatible only with the Beam Inmarsat ISD700 antenna.

This high-quality passive cable ensures a reliable and efficient connection between your ISD700 antenna and communication system, providing stable satellite communication for various fixed setup applications.

With a length of 20 meters, this cable offers the flexibility needed for extended reach while maintaining optimal signal quality. Built for durability, it is designed to withstand challenging environments, ensuring long-lasting performance in fixed installation scenarios.

Ideal for users requiring a secure and dependable satellite connection, the Beam Inmarsat 20m Passive Cable Kit delivers superior performance when used with the ISD700 antenna. This cable kit is the perfect solution for those seeking a reliable connection for their fixed satellite communication system.

Specifications

Cable Kit

• Weight: 2.8kg
• Dimensions: 20m

Antenna Cable

• Cable Length: Passive 20m SAT TNC-SMA
• Connector Diameter: 14.5mm
• Cable Diameter: 10.3mm
• Thickest Diameter: 14.5mm
• Bend Radius Single: 25.4mm
• Bend Radius Repeat: 101.6mm

GPS Cable

• Cable Length: 20m GPS SMA-SMA
• Connector Diameter: 9.23mm
• Thickest Diameter: 9.23mm
• Cable Diameter: 4.95mm
• Bend Radius Single: 14mm
• Bend Radius Repeat: 51mm
