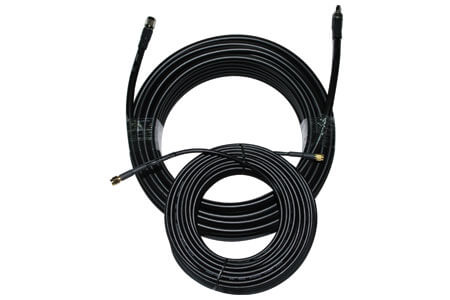

ISD939-SP Beam Inmarsat Cable Kit, for Passive Antennas, 30m

The Beam Inmarsat ISD939 30m Passive Cable Kit is specifically engineered for use with the ISD700 Passive Antenna, offering a durable and reliable solution for satellite communication over distances of up to 30 meters.

This high-quality passive cable kit ensures dependable satellite connectivity for fixed, marine, and transport installations, even in remote and rugged environments.

Perfect for long-distance installations, the ISD939 cable guarantees minimal signal loss, providing clear communication and reliable satellite performance when you need it most. The cable is robust and versatile, making it ideal for a variety of applications, while being designed for exclusive compatibility with the ISD700 Passive Antenna.

Specifications

Cable Kit

• Weight: 6.1kg
• Dimensions: 30m

Antenna Cable

• Cable Length: Passive 29.5m SAT TNC(m)-TNC(m)
• Connector Diameter: 15.5 / 15.5mm
• Cable Diameter: 12.7mm
• Thickest Diameter: ~15.70mm
• Bend Radius Single: 32mm
• Bend Radius Repeat: 127mm

GPS Cable

• Cable Length: Passive 30m GPS SMA(m)-SMA(m)
• Connector Diameter: 8.1/8.1mm
• Thickest Diameter: ~ 8.3mm
• Cable Diameter: 6.1mm
• Bend Radius Single: 19.1mm
• Bend Radius Repeat: 63.5mm

Fly Leads

• Adaptor length: 50cm TNC(f)-SMA(m))
• Connector Diameter: 13.7/8.1mm
• Thickest Diameter: 14mm
• Cable Diameter: 6.1mm
• Bend Radius Single: 19.1mm

ONLY for use with the ISD700 Passive Antenna
