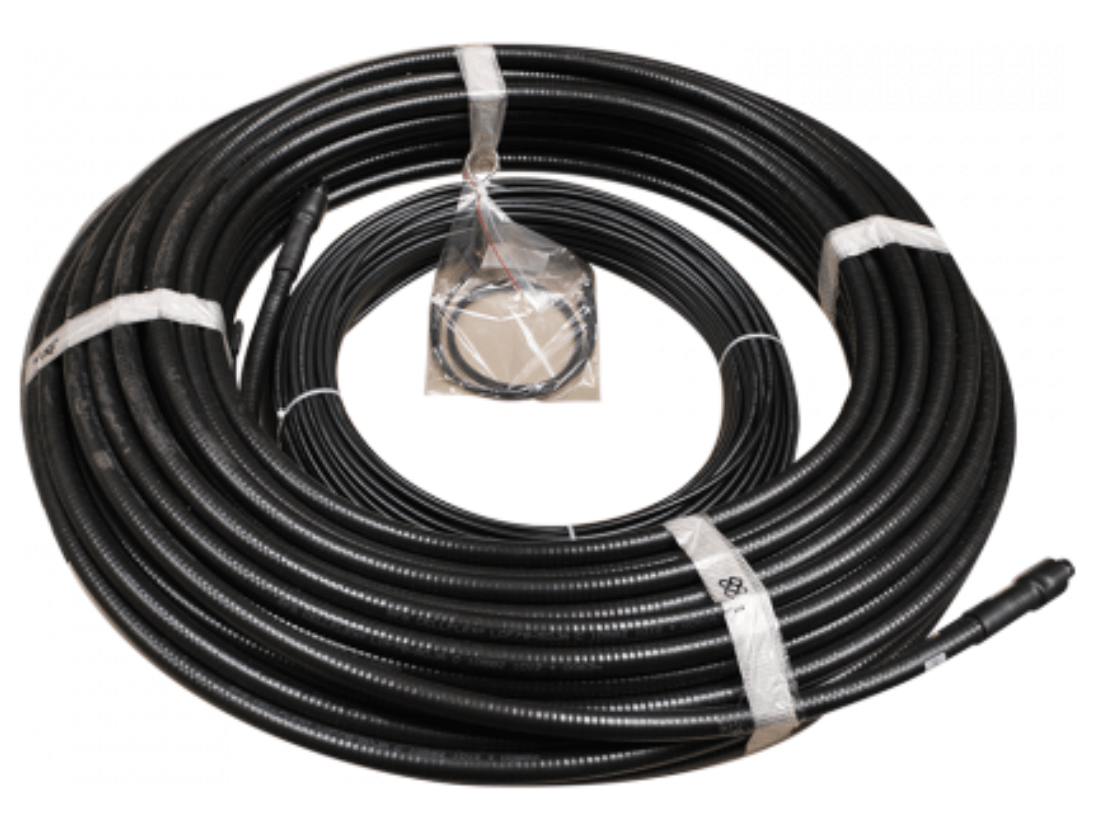

ISD942-SP Beam Inmarsat Cable Kit, for Active Antennas, 50m

The Beam Inmarsat 50m Active Cable Kit is designed to provide a reliable and high-performance connection between your Inmarsat satellite antenna and communication system.

The kit includes 49 meters of Inmarsat antenna cable and 50 meters of GPS antenna cable, along with 2 x 50cm fly leads, providing a flexible installation option for most marine, transport, or fixed installations.

This durable and high-quality cable ensures strong satellite communication and optimal signal reception, even in challenging environments. The 50-meter length allows for a wide range of installation scenarios, offering the flexibility to meet the demands of remote locations or larger setups.

This cable kit is specifically compatible with Beam Inmarsat antenna models ISD710, ISD715 & ISD720, ensuring seamless integration and reliable communication for these systems. Whether you’re setting up a satellite connection for marine, transport, or fixed installations, the Beam Inmarsat 50m Active Cable Kit provides the performance and reliability needed for uninterrupted satellite communication.

Specifications

Cable Kit

• Weight: 14kg
• Dimensions: 50m

Antenna Cable

• Cable Length: Active 49m SAT TNC(m)-TNC(m)
• Connector Diameter: 19.04mm / 19.04mm
• Cable Diameter: 14.99mm
• Thickest Diameter: 22mm
• Bend Radius Single: 153mm
• Bend Radius Repeat: 153mm

GPS Cable

• Cable Length: Active 50m GPS SMA(m)-SMA(m)
• Connector Diameter: 8.2mm / 8.2mm
• Thickest Diameter: 9mm
• Cable Diameter: 7.62mm
• Bend Radius Single: 19.1mm
• Bend Radius Repeat: 63.5mm

Fly Lead

• Adaptor length: 50cm TNC(f)-SMA(m)
• Connector Diameter: 13.7mm/8.1mm
• Thickest Diameter: 14mm
• Cable Diameter: 6.1mm
• Bend Radius Single: 19.1mm

Note: NOT for use with the ISD700 Passive Antenna
