LNP-1204G-10G-SFP-24 Antaira Unmanaged Ethernet Switch, 12-Port Industrial Gigabit PoE+
$3,127.30 Inc. GST
LNP-1204G-10G-SFP-24 Antaira Unmanaged Ethernet Switch, 12-Port Industrial Gigabit PoE+
Short Description: 12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 8*10/100/1000Tx (30W/Port), 2*1G SFP Slots, and 2*10G SFP+ Slots; 12~55VDC Power Input

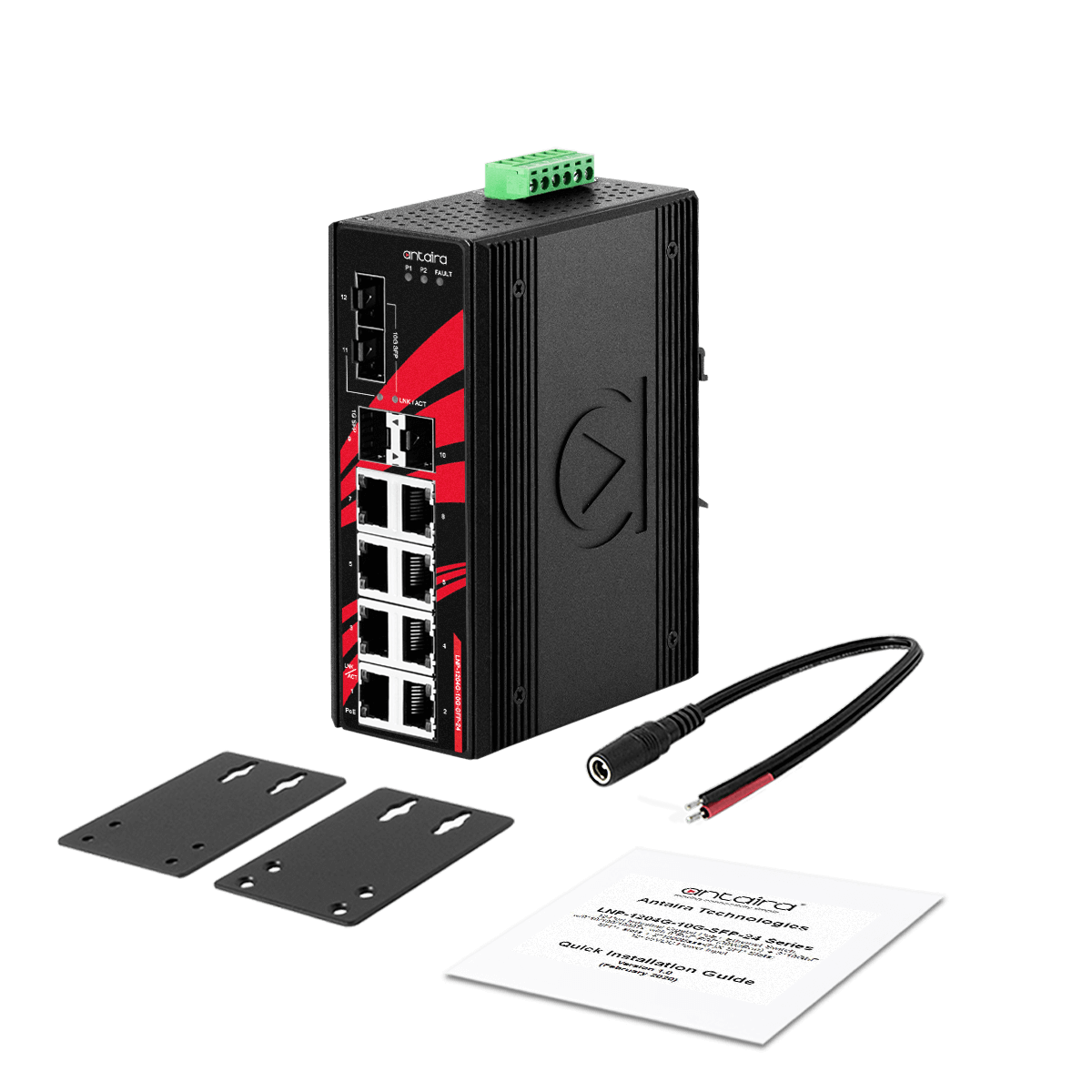

Included in this Pack
- LNP-1204G-10G-SFP-24
- DC Cable – 18 AWG & DC Jack 5.5 X 2.1 mm
- Wall mounting bracket set with screws
- Quick Installation Guide
- RJ45 dust cover set
Overview
Antaira Technologies’ LNP-1204G-10G-SFP-24 are industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1204G-10G-SFP-24 has 2*1G SFP slots and 2*10G SFP+ slots which provide options for long-distance fiber connections. The Ethernet switches are designed with high EFT and ESD protection and support standard operating temperature from -40° to 65°C.
The LNP-1204G-10G-SFP-24 are IP30 rated and DIN-rail mountable. These Ethernet switches are designed to be powered with low voltage input (12~55VDC) while still providing the higher voltages required by the PoE standards. Additionally, these industrial PoE Ethernet switches provide connectivity for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.
Features
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, 2*1G SFP Slots, and 2*10G SFP+ Slots
- Store-and-Forward Switching Architecture
- 60Gbps Back-Plane (Switching Fabric)
- 16K MAC Address Table
- 10Kbytes Jumbo Frame Support
- Redundant Power Input Design: 12~55VDC
- Bult-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Operating Temperature Range: -40°C~65°C
- 5-Year Warranty
- Provides connectivity for outdoor or harsh industrial automation application environments
- Security surveillance,
- ITS-traffic monitoring systems,
- oil/gas and mining,
- facility management for power/utility,
- water wastewater treatment plants, and lastly,
- automated production lines in factory automation.
Accessories
Antaira’s industrial unmanaged 10 Gigabit Power over Ethernet (PoE) switches feature Ethernet ports that support IEEE 802.3at high power PoE (30W/port). These 10 gigabit PoE switches operate well in nearly any outdoor and harsh environment where it is needed most. Every model in this collection is completely IP30 rated and DIN-rail mountable for convenient installation. Our customers choose our products for their ability to utilize low voltage inputs while still delivering the higher voltages required by the PoE standards. These 10 gigabit PoE switches can handle a diverse range of applications including outdoor/harsh industrial automation environments, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, automated production lines in factory automation, and more.
