LP1-1000-111 Intellian LP100 Intellian VSAT, Ku-Band, MIL, Portable, PLL LNB, 8W BUC
A Rugged, Lightweight, Man Portable, Quick Deployable Satellite Land Terminal

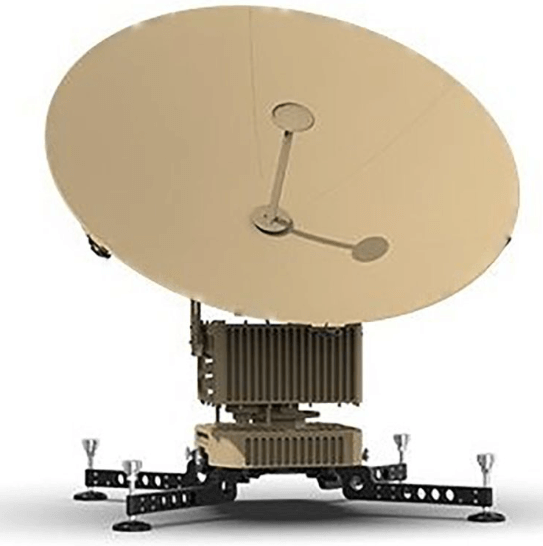

Lightweight, man-portable, flyaway antenna with a 1m reflector.
Quick to deploy in under five minutes. Packed compact enough to fit in two backpacks for ease of deployment to the theater with automatic satellite acquisition to find the required satellite quickly and efficiently.
Land Portable Auto-Acquisition Satellite VSAT System
- Lightweight Man Portable Flyaway Antenna with a 1m reflector
- Designed for rapid deployment of high speed satellite communication networks for use in Defense, Disaster Recovery, Homeland Security, Law Enforcement, Emergency Response, Media, Telemedicine, Insurance, Remote office, Energy and Mining
- Quick to deploy in under five minutes and is packed compact enough for ease of transport.
- Automatic satellite Acquisition to find the required satellite efficiently
- Land Portable Auto-Acquisition Satellite VSAT System
- The Intellian LP100 will Help Complete the Mission
- Portable Yet Stable Solution
- Fail-Safe Operation with Manual Pointing
- Rapid Setup
The Intellian LP100 will Help Complete the Mission
- Designed to survive in the harshest of conditions while still delivering reliable communications.
- Highly portable with fast deployment ensures an in-theater operator can be online quickly

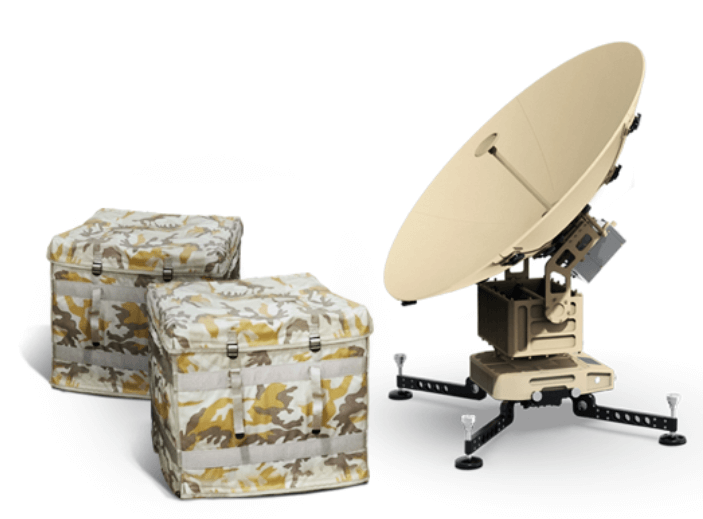

- Light weight for ease of deployment, man portable in two protective backpacks, yet rugged enough to withstand the harsh handling of a military environment.
- Can be managed using the Intellian Aptus platform, providing the ability to remotely manage and control the LP100 system through Aptus, using a simple one click process to provide system monitoring and support
Intellian LP100 Portable VSAT Antenna Specifications:
| Radome Dimension | N/A |
| Reflector Diameter | 105 cm (41.3 inch) |
| Antenna Weight | 47 kg |
| TX Frequency | 13.75 GHz ~ 14.5 GHz |
| RX Frequency | 10.95 GHz~12.75 GHz |
| TX Gain | 41.0 dBi |
| RX Gain | 39.5 dBi |
| G/T | 18.4 dB/K (min.) |
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
Brand
Intellian
LP1-1000-111SP LP100 incl. 8W Extended BUC & PLL LNB 1m Military Grade, Ku-band, Flyaway Antenna System, Including:
- LP-1000,
- Global Ku-band PLL LNB –
- V1-2212,
- NJRC 8W Extended BUC (NJT8318UNMR) –
- 2x Soft cases . 1 with Pedestal / 1 with Reflector, Feed,
- RF assembly and
- Support leg –
- X-pol System
