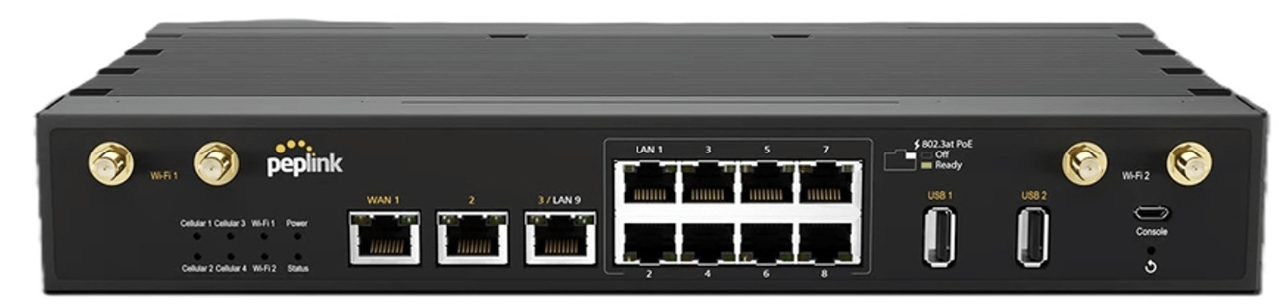

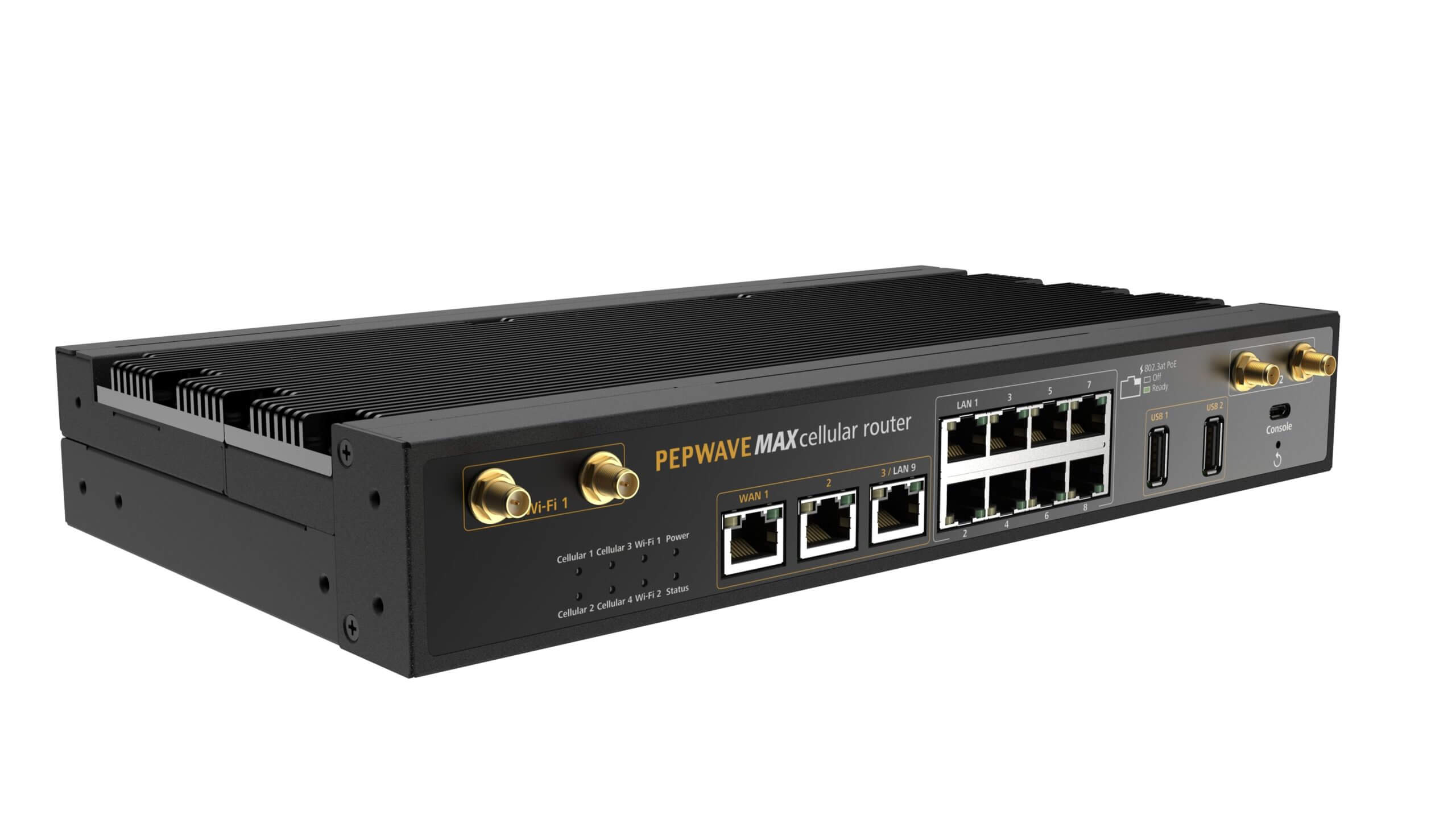

MAX-HD4-MBX-5GK-T Peplink HD MB4 Multi-Cellular, Gigabit 5
$21,833.90 Inc. GST
MAX-HD4-MBX-5GK-T Peplink HD MB4 Multi-Cellular, Gigabit 5G
The HD2/ HD4 MBX is capable of combining the bandwidth of 2 or 4 cellular links into an unbreakable, high-speed SD-WAN connection.
The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector.
MAX HD4 MBX 5G – Package Content includes:
- MAX HD4 MBX Unit
- 1x PSU 180W (ACW-630)
- 1x QMA to SMA Adaptor (for GPS)
- 1x GPS Antenna (ACW-232)
- 1 Pair of Mounting Brackets (ACW-513)
- 4x Wi-Fi Dual Band Antenna (ACW-341)
- 3pin Terminal Block Connector (Ignition sense)
- 4pin Terminal Block Connector (Power supply)
- Grounding cable
- Rubber Foot Pad set
* Cellular antennas not included. To enhance the MBX, Mobility and Maritime antennas are recommended.
Key Features
- Four Embedded Cellular Modems: Equipped with redundant SIM slots for maximum uptime and carrier flexibility.
- Multi-Cellular Bandwidth Bonding: Aggregates multiple cellular links for superior speed, coverage, and stability.
- High Throughput Capability: Handles up to 2.5 Gbps router throughput to support large-scale data demands.
- SpeedFusion Technology: Enables hot failover, smoothing, and bonding for seamless connectivity in all conditions.

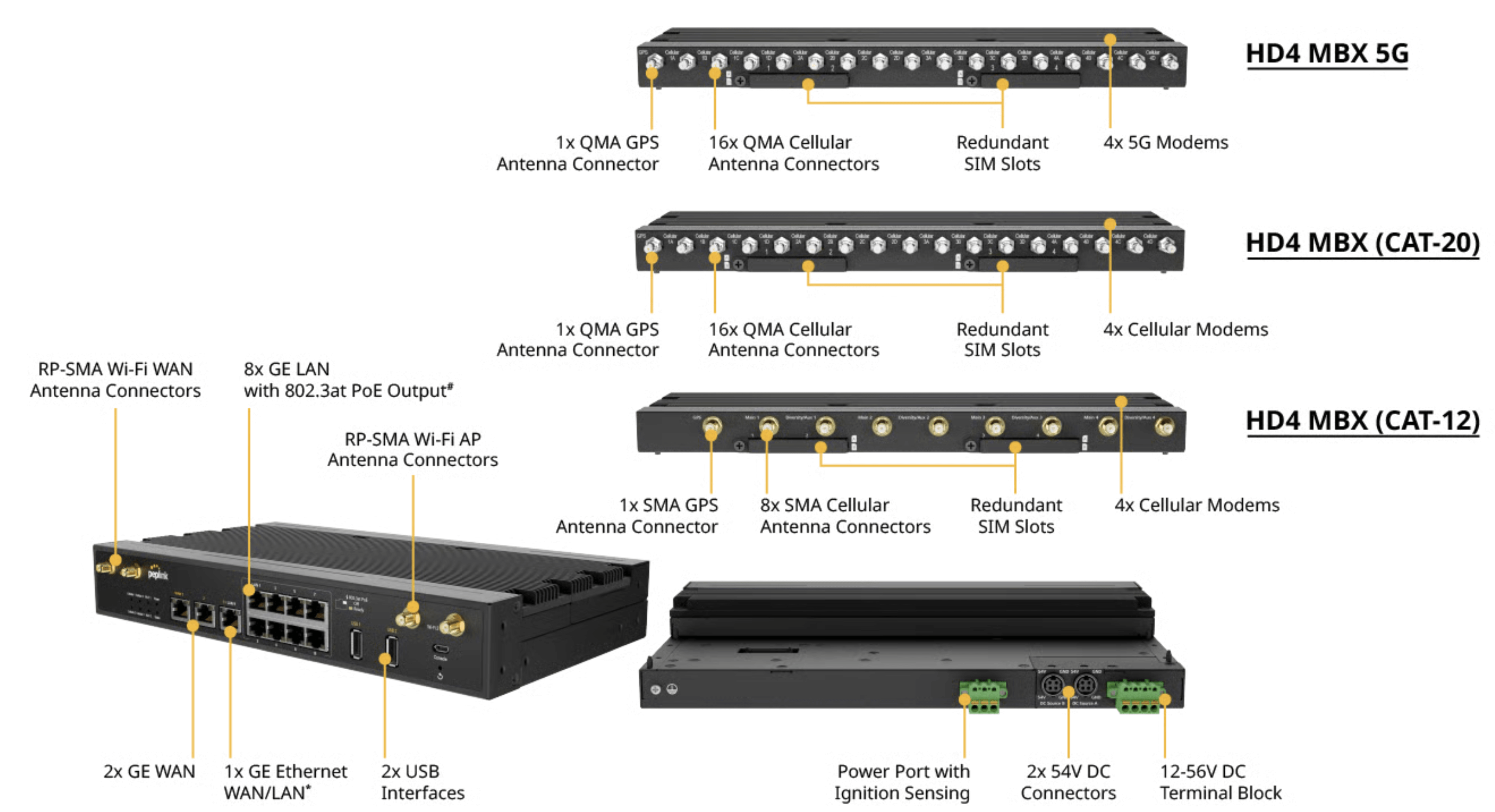

- Extensive Antenna Support: Multiple QMA and RP-SMA connectors for cellular, Wi-Fi, and GPS antennas.
- PoE Output Functionality: Powers up to eight connected devices via 802.3at PoE outputs.
- Industrial-Grade Reliability: Operates in extreme temperatures from -40°C to 65°C with robust shock and vibration resistance.
- SIM Injector Compatible: Supports expansion to 16 SIMs managed from up to 100 m away.
Built for large-scale, mission-critical applications, it ensures uninterrupted and resilient connectivity across the most challenging environments.
With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.
Product ID Code: MAX-HD4-MBX-5GK-T Embedded Modem(s): 4x 5G
- Regions: Global (Project Based)* *US Carrier Certifications: AT&T, T-Mobile, Verizon (C-Band), FirstNet *RCM Certified
- 5G Bands: 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
-
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
| Product Specifications | |
|---|---|
| WAN Interface | 3x 10/100/1000M Ethernet, 2x USB, 4x Embedded Cellular Modems |
| LAN Interface | 9x 10/100/1000M Ethernet |
| Wi-Fi Interface | Simultaneous Dual-Band Wi-Fi 5, 2×2 MIMO |
| SpeedFusion Features | Hot Failover, Smoothing, Bandwidth Bonding |
| SpeedFusion Peers | 3 / 20 / 50 (with optional license) |
| Router Throughput | 2.5 Gbps |
| SpeedFusion Throughput (No Encryption) | 600 Mbps |
| SpeedFusion Throughput (256-bit AES) | 500 Mbps |
| Recommended Users | 50–500 |
| Cellular Data Rate | CAT-12: 600 Mbps downlink / 150 Mbps uplink |

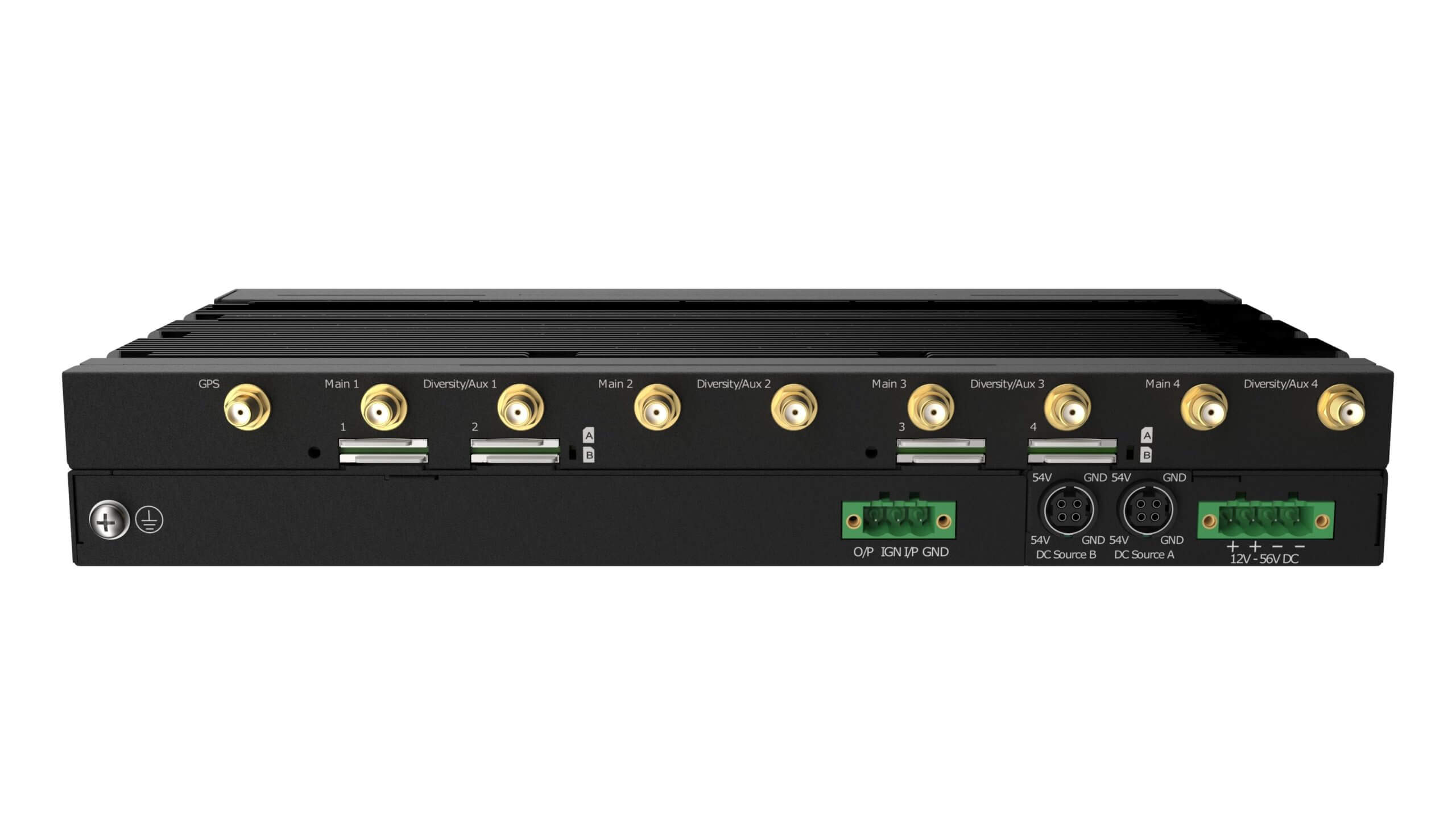

| Antenna Connectors | 16x QMA Cellular, 4x RP-SMA Wi-Fi, 1x QMA GPS |
| Power Input | 12V–56V DC via power port or terminal block |
| Power Output | Up to 8x 802.3at PoE Outputs |
| Power Consumption | 55W (max.) |
| Dimensions | 43 x 292 x 177 mm |
| Weight | 3.3 kg |
| Operating Temperature | -40°C to 65°C |
| Humidity | 15%–95% non-condensing |
| Certifications | FCC, CE, RoHS, E-Mark, PTCRB, EN61373, EN50155, EN61000, ESN |
| SIM Options | Mini-SIM (2FF), Peplink eSIM, BYO eSIM, Remote SIM, FusionSIM |
