OW-6021-L Intellian OneWeb DC-DC Converter, 12-36VDC to 48VDC 480W DC PSA (Land)

OW6021-L Intellian OneWeb DC-DC Converter, 12-36VDC / 480W PSA (Land)

Application: DC-DC Converter for optimized quick and efficient installations(Land)

Compatibility:

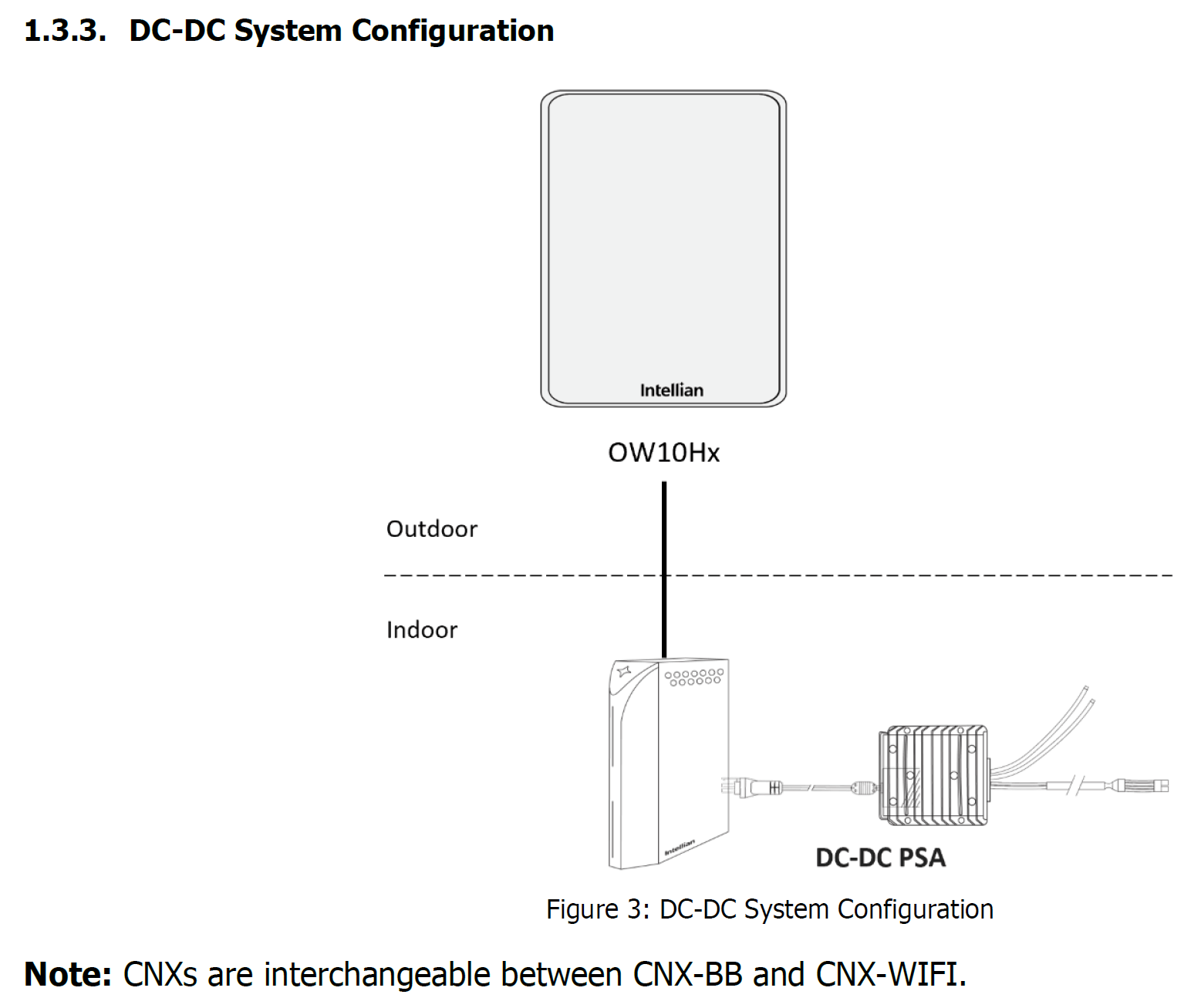

• Intellian OneWeb CNX series requiring power originating from a DC source(Land)

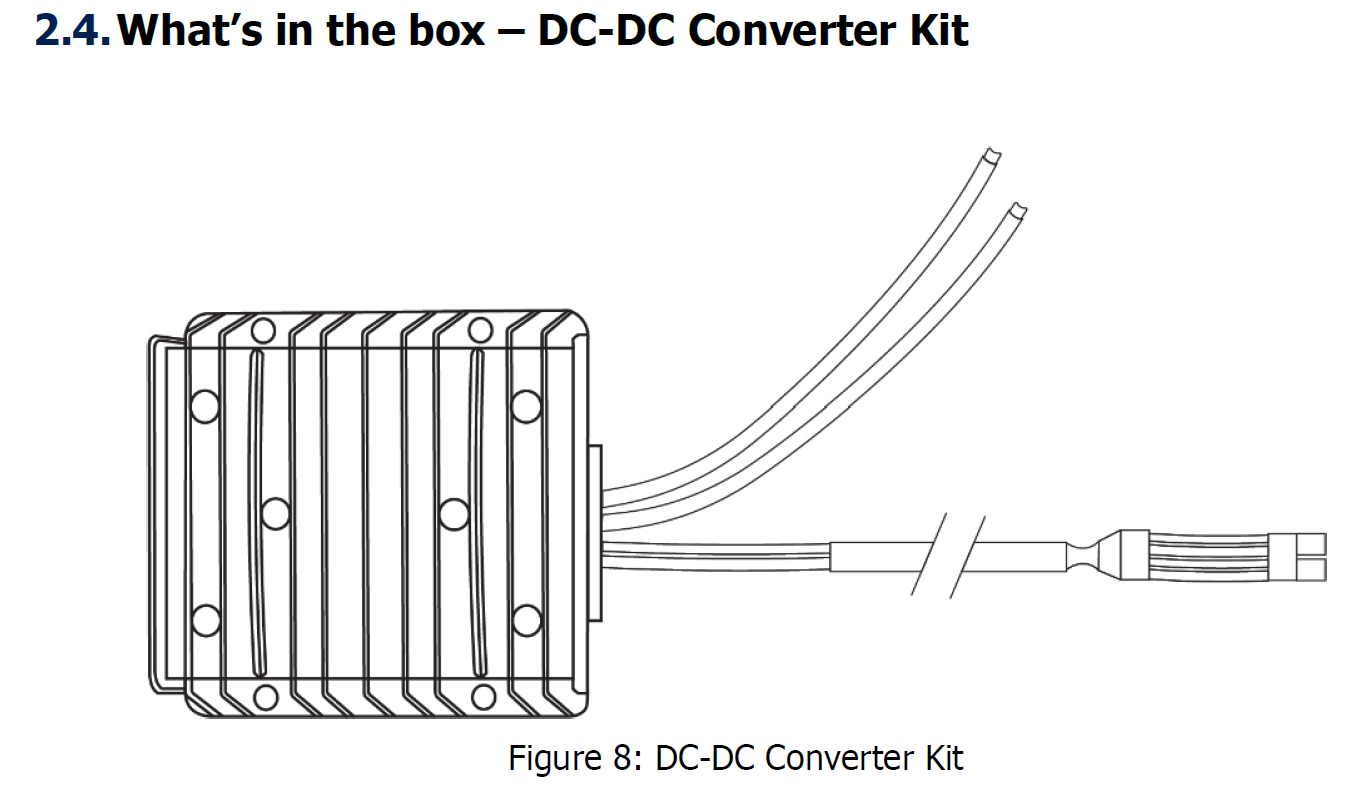

What’s in the Box

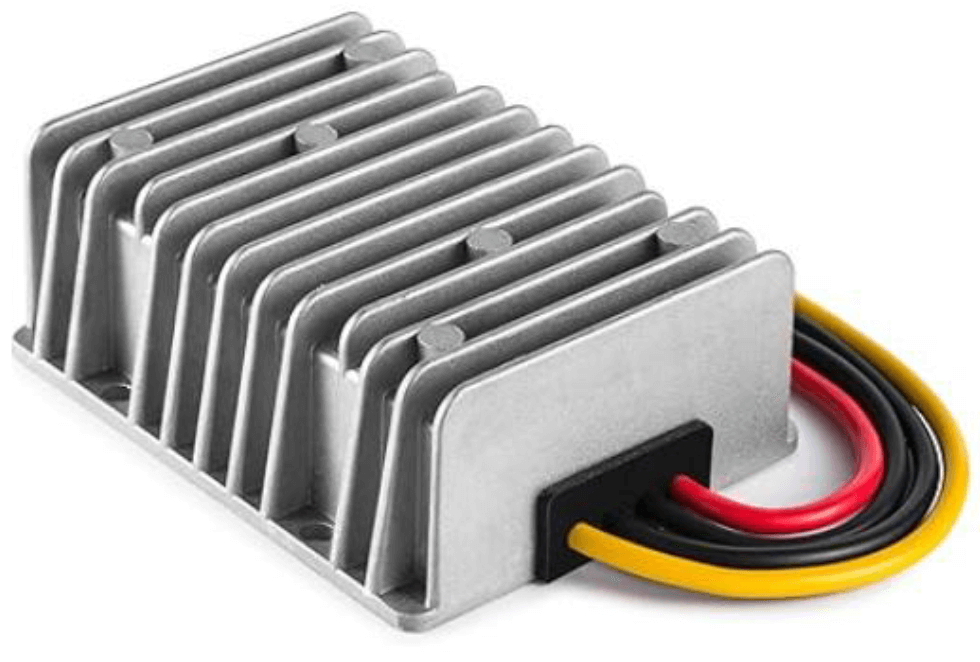

• OW6021-L DC-DC Converter(Land)
• Sundry Hardware
• Documentation Pack, QIG(Quick Installation Guide)

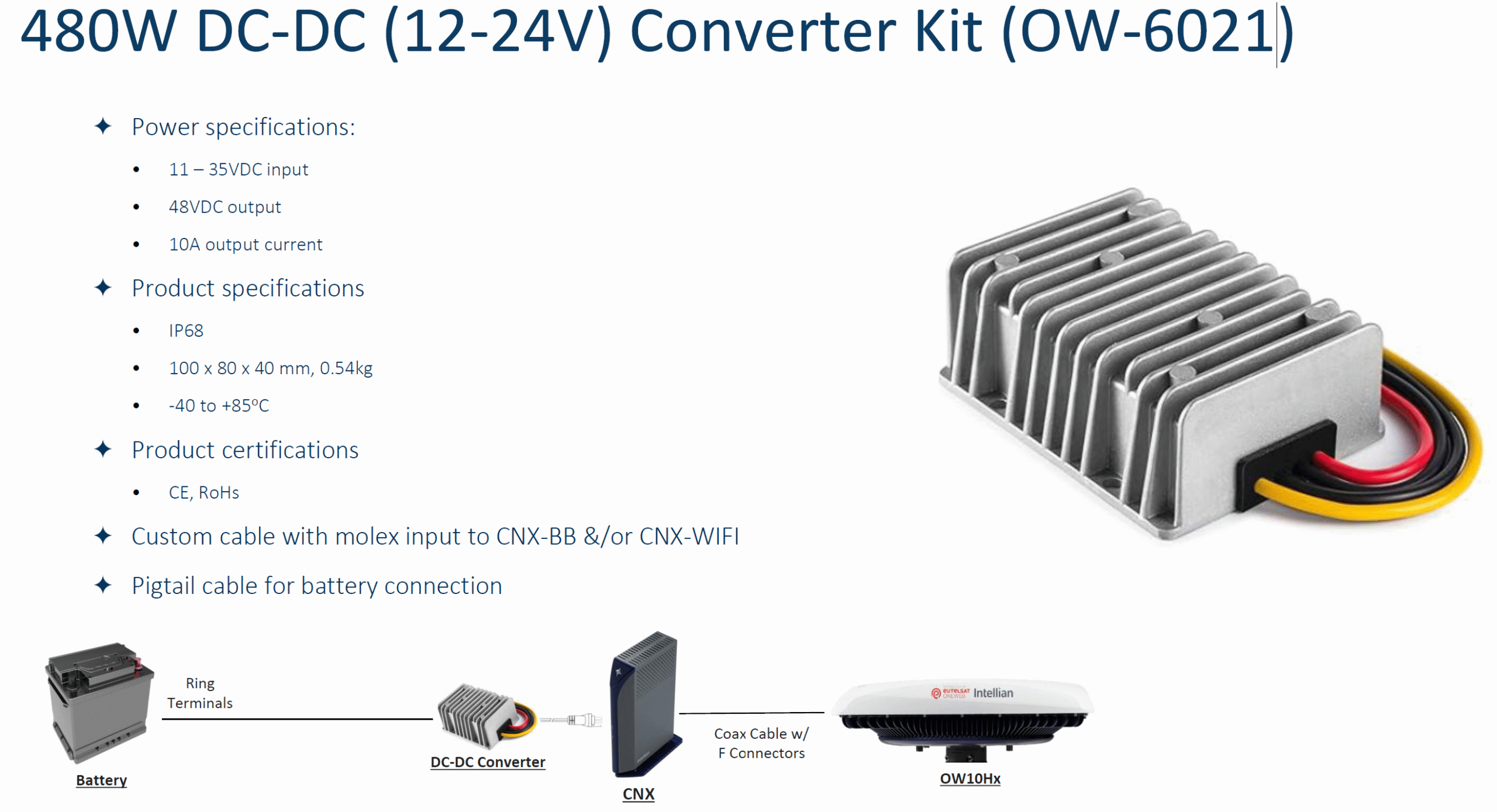

Specifications

• Power: 12 –36VDC input, 480W output, 10A output current
• Ingress: IP68
• Deployed: 100 x 80 x 40mm, Wt. 0.54kg
• Shipping: 250(W)*166(L)*120(H), Wt. 2.5kg
• Temperature(Operational): -40 to +85oC
• Product certifications: CE, RoHs
• Custom cable with molex input to CNX-BB &/or CNX-WIFI, Pigtail cable for battery connection
