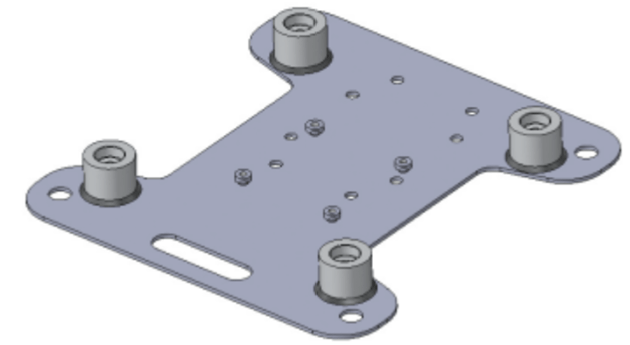

OW6019 Intellian OneWeb Mount Adapter Plate, compatible with OW6017, for Pedestal and Pole/Mast (Land)

OW6019 Intellian OneWeb Mount Adapter Plate, compatible with OW6017, for Pedestal and Pole/Mast (Land)

Application: Land Mounting Solution for fixing to a Mast or Pole for optimized quick and efficient installations.

Some UT(User Terminals) do not include a maritime mount adapter. It is strongly recommended as an additional accessory.

Intellian offers the Land Mount Adapter Plate (OW-6019) for the Land environment to mount the antenna securely.

Compatibility:

• All Intellian OneWeb Compact and Enterprise Flat Panel series Antennas(ODU/ADU)
• Integrates with optional part# OW6034 but Requires 60mm diameter(outside) Mast/Pole(available, but NOT included in this pack)

What’s in the Box

• 1pce Land Mount Adapter Plate (Designed to work with a variety of Land mounting needs)
• 4pcs Hex Bolt# M6 x 12mm (To mount antenna on Adjustable Mount Adapter), 4pcs Spring Washer# M8, 4pcs Flat Washer# M8
• 4pcs Hex-S Bolt# M8 x 35mm (To mount antenna onto Land Mount Adapter), 4pcs Spring Washer# M6, 4pcs Flat Washer# M6
• 4pcs Hex Bolt# M12 x 40mm (To mount antenna onto Land Mast Mount), 4pcs Spring Washer# M12, 4pcs Flat Washer# M12, 4pcs Hex Nut# M12
• 8pcs Hex-S Bolt, 5/16-18 (To mount Land Mount Adapter onto Pedestal)
• Maritime Mount Adapter QIG (Installation Manual)

Manufacturers Update Note:

Intellian has developed and tested a new solution to support pole installation for both the Compact and Enterprise Maritime Flat Panel products, OW10HM and OW11FM. The new part number is (OW-6034), which should be utilized instead of (OW-6017) in Maritime environments.

Intellian’s Recommended Maritime Installations

For Maritime applications, Intellian has two offerings to accommodate a mast or pedestal installation using either the Maritime Mount Plate (OW-6019_A) or Maritime Fixed Pole Mount Adapter (OW-6034).  These apply to both the Compact and Enterprise Series Flat Panel products.

Mast and Pedestal Install, Intellian offers the Maritime Mount Plate (OW-6019_A) for mounting the Out  Door Unit (ODU) onto a vessel’s mast or pedestal. It offers different hole pattern options to provide flexibility in accommodating existing holes on the pedestal.

Maritime Pole Mount Install, Intellian also has an offering for maritime pole mount installations. The Maritime Pole Mount Adapter (OW-6034) supports the pole mounting of either the OW10HM or OW11FM.

For more detailed information on the installation guide for both Maritime Adapter Plate (OW-6019_A) and Maritime Fixed Pole Mount Adapter (OW-6034), please refer to the updated User Guide and Quick Installation Guide.
