P000-PGX-00104 Paradigm Connect100, 5W, Ka-Band, Global Xpress Terminal

P000-PGX-00104 Paradigm CONNECT100, 5W, Ka-Band, Global Xpress Terminal

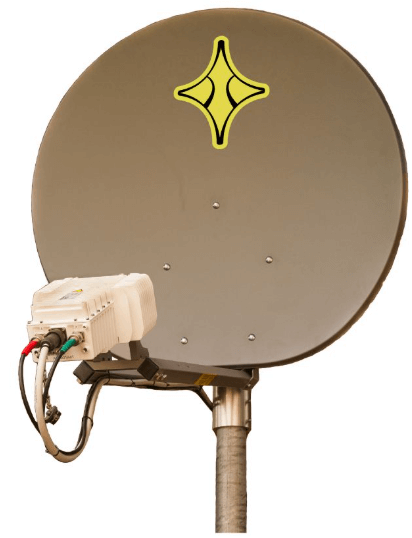

The Paradigm CONNECT100 terminal is a medium-sized fixed Global Xpress Certified Solution.

The terminal is designed to provide the best possible performance on the Global Xpress network and meets the GX sweet spot for price and performance.

Includes:

• 2m IDU power cable and connector
• 30m pre-terminated transceiver to PIM IFL
• 5W Ka-band transceiver with feed & OMT
• 98cm antenna
• Assembly tool kit
• El/Az antenna mount
• Paradigm Interface Module (PIM) – IDU (desktop)

Combining both optimal performance and functionality, the CONNECT100 provides access to the most advanced IP satellite services.

Features and Benefits

• Combining both optimal performance and functionality
• Designed for extended usage in demanding environments
• Supplied with either a Kingpost, Wall Mount, on-Penetrating Roof Mount, Tripod or Paradigm ISO Container Mount
• The antenna system can be deployed/installed in any location

Designed for extended usage in demanding environments, the Connect100 offers a variety of features to achieve the required accuracy needed for GX performance, including the One Touch Calibration function to enable simple RF-chain setup .

Supplied with either a Kingpost, Wall Mount, on-Penetrating Roof Mount, Tripod or Paradigm ISO Container Mount, the antenna system can be deployed/installed in any location.

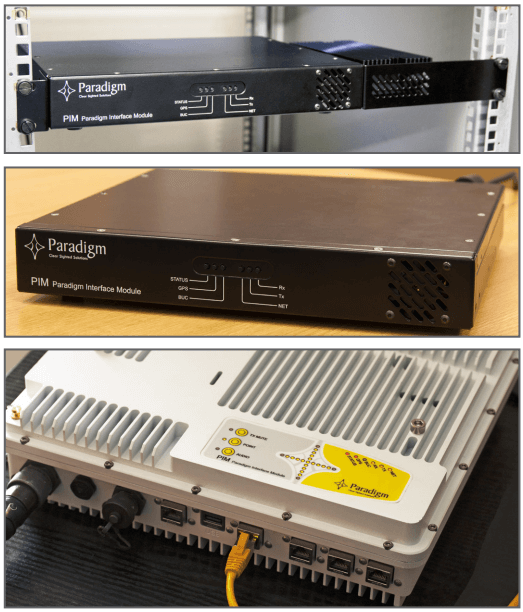

Terminal M&C and modem operations are performed by the Indoor Paradigm Interface Module (PIM), which can optionally be supplied as a Rack Mount unit. For scenarios where the modem is required to operate outside, an Outdoor PIM option is offered.

The Paradigm Connect 100 terminal is a medium-sized fixed Global Xpress Certified Solution. Combining both optimal performance and functionality, the Connect 100 provides access to the most advanced IP satellite services. The terminal is designed to provide the best possible performance on the Global Xpress network and meets the GX sweet spot for price and performance.

Terminal Overview

Designed for extended usage in demanding environments, the Connect 100 offers a variety of features to achieve the required accuracy needed for GX performance, including the One Touch Commissioning function to enable simple RF-chain setup. The Paradigm Connect 100 comes standard with all relevant accessories. Installation manuals and a quick start guide are also supplied on CDROM. For ease of setup, a tool kit with compass is provided. Supplied with either a Kingpost, Wall Mount, Non-Penetrating Roof Mount, Tripod or Paradigm ISO Container Mount, the antenna system can be deployed/installed in any location.

Terminal M&C and modem operations are performed by the Indoor Paradigm Interface Module (PIM), which can optionally be supplied as a Rack Mount unit. For scenarios where the modem is required to operate outside, Paradigm offers an Outdoor PIM option. To increase flexibility and adaptability, Paradigm offers alternative interface options to the standard 10/100BaseT, including fibre and wireless solutions. Cable options to suit specific installation environments can also be offered.
