P000-PGX-00330 Paradigm Hornet 99, 5W, Ka-Band GX, 99cm FlyAway
$71,564.90 Inc. GST
The Hornet 99 is a compact-sized mobile Global Xpress Certified solution supplied with the Outdoor Paradigm Interface Module (PIM).
Combining both optimal performance and functionality, the Hornet 99 series antenna system is enabled to provide access to the most advanced IP satellite services.
The terminal is designed to provide the best possible performance on the Global Xpress network.
Includes:
- 99cm antenna
- Integrated Az/El mount with tripod
- 5W Ka Band transceiver with
- Feed & OMT Outdoor PIM with
- tripod mounting bracket
- Transceiver/PLS/PIM Cable-loom
- Outdoor PIM
- AC power cable and
- Ethernet cable
- One transit case
- Quick start guide and User Guide/CD

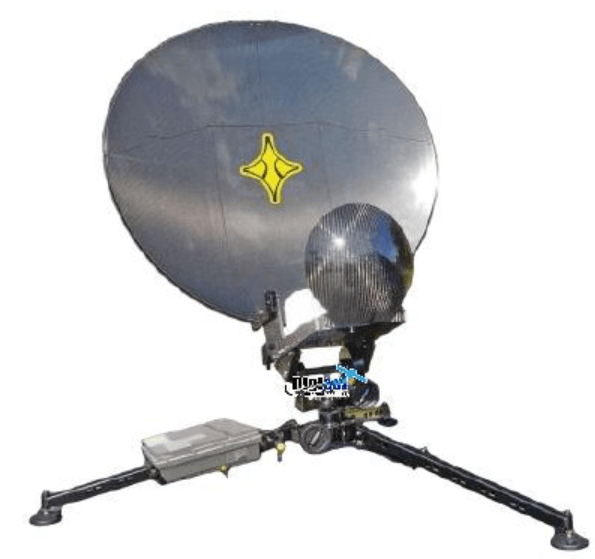

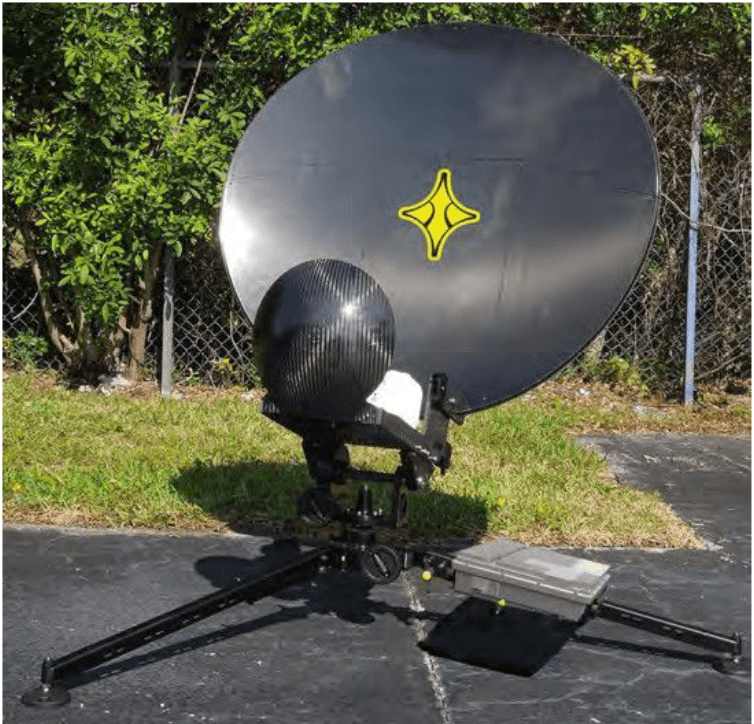

The Hornet99 terminal is lightweight, rugged and quick to deploy and stow.
The design is simple and robust for fast operation in demanding environments.
The dual-offset antenna provides maximum efficiency and optimum radiation characteristics for improved data throughput and availability.
It employs a 5-piece segmented, carbon fibre reflector that deploys quickly and accurately without the need for tools.
The integrated Ka-Band transceiver houses a BUC, PLL LNB and all associated waveguide components in a sealed compact unit which requires no cooling fans.
Pointing the antenna is a very simple operation using the Outdoor PIM’s integrated pointing aid or the web interface pointing page, both of which provide visual and audio feedback.
The Outdoor PIM is pre-tuned to the Inmarsat Global Signalling Channel which prevents accidental pointing to adjacent satellites and includes a One Touch Calibration function.
The tripod is manufactured from aluminium with adjustable legs which provide a low profile and a wide operational footprint. The interface to the antenna is by way of a quick-release catch.
The terminal, Outdoor PIM, tripod and all cabling are supplied in a custom-built pelican case.
