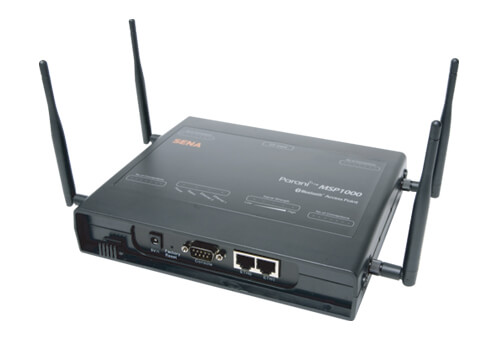

MSP-1000C-01 Sena Parani MSP1000C Industrial Bluetooth Access Point, 28 connections
MSP1000C-01*
*This pack comes with a Wall A/C power adapter and wall outlet plug specific to your local region.
The Parani MSP1000 series is an Industrial Bluetooth Access Point product line designed to connect up to 28 Bluetooth devices to the 10/100 Base-T Ethernet network with advanced features.
These Bluetooth Access Points transmit data from each Bluetooth terminal to management station via TCP/IP.
$1,152.38 Inc. GST
The Parani MSP1000C is an Industrial Bluetooth Access Point product designed to connect Bluetooth devices to the 10/100 Base-T Ethernet network with advanced features. These Bluetooth Access Points transmit data from each Bluetooth terminal to management station via TCP/IP.
This 28 Bluetooth connection model, the Parani-MSP1000B Bluetooth Access Point incorporates Bluetooth 2.0 Protocol Stack with Enhanced Data Rate (EDR) support; and transmits data from each Bluetooth terminal to management station via TCP/IP.
These units’ support profiles including Serial port, LAN access, PAN and FTP profiles to keep Bluetooth devices interoperating smoothly and easily.
Connects Bluetooth devices to 10/100 base-T Ethernet.
Dual Ethernet Interface support
Supports Up to 3Mbps throughput
Ideal wireless solution for the replacement of the wired multi-port serial card.
28 Bluetooth Connections support
Supports Bluetooth profiles for Serial Port, LAN Access, PAN, File Transfer and Dial up Networking.
Easy-to-use COM-Port redirector support
Flexible TCP/UDP host mode support: Multiple host connection/data transfer
System logging & port logging
Supports Python Script Engine for customization
Supports firmware upgrade via web, hyper terminal program or etc.
Supports surge protector
Supports RFC 2217, Telnet COM Port Control Protocol.
Go(scroll down) to Reference Table below………
Parani-MSP1000C
CPU
Freescale PowerQUICC MPC880
DRAM
64 MB
Flash
16 MB ( 2 MB of user programmable space )
Ethernet Interface
Dual 10/100 Base-T Ethernet with RJ45 connector
Supports Static IP and Dynamic IP address
Bluetooth Interface
Bluetooth v2.0 + EDR
Class 1
Profiles – Serial Port, LAN Access, PAN, Dial up Networking, File Transfer
Date Rate – up to 3Mbps
Working distance
Max. Tx power
+17dBi(using DAT-G01R Antenna)
Receive Sensitivity
-88dBm
Antenna gain
DAT-G01R(Default) : +3dBi, DAT5-G01R : +5dBi, PAT-G01R : +9dBi
Point to multi point connectivity
Up to 28 connections
Network Protocols
IPv4, ICMP, ARP, TCP, HTTP, telnet, TFTP
SSH, HTTPS, SSL/TLS, DNS
SCP/SFTP/FTP, syslog, NTP
SMTP, Dynamic DNS
Security
IP Filtering
SSH v2, SSL/TLS, HTTPS, SCP, SFTP
CF Port
Flash memory
Logging
Syslog server ,CF memory
Real Time Clock
Support
Customization
Python Script engine, ELDK v4.0, 2MB internal user space
Management
Web, Telnet, SSH, Serial Console
Firmware
Upgrade using Telnet/SSH, Web, Bootp, Zmodem, TFTP
Diagnostic LED
POWER, STATUS, Ethernet0, Ethernet1
Signal Strength, No of Connections
Power
5VDC
Nominal Current Consumption : 1.2A@ 5VDC approximately
Environmental
Operating temperature: 0’C to 50’C
Storage temperature: -30’C to 85’C
Humidity: 90% Non-condensing
Physical properties
Dimension (LxWxH)
203 x 170 x 44 (mm)
7.99 x 6.69 x 1.73 ( in.)
Weight
MSP1000A : 1414g
MSP1000B : 1432g
MSP1000C : 1468g
MTBF
30.52 Years
Approval
FCC, CE, MIC, Telec
SIG QDID
Warranty
3-year Limited Warranty
| Parani-MSP1000 | Parani-SD100 Parani-ESD110 |
DAT-G01R Antenna DAT-G01R Antenna DAT-G01R Antenna DAT-G01R Antenna DAT5-G01R Antenna DAT5-G01R Antenna PAT-G01R Antenna |
– – – – – – – |
Stub(Dafault) Antenna DAT-G01R Antenna DAT5-G01R Antenna PAT-G01R Antenna DAT5-G01R Antenna PAT-G01R Antenna PAT-G01R Antenna up to 150m up to 200m up to 300m up to 500m up to 400m up to 600m up to 1000m |
Brand
Sena
“Whats in the Box?” Parani MSP1000C-01*
1x Parani-MSP1000C Industrial Bluetooth Access Point with 28 connections support
*1x Wall A/C power adapter with a wall outlet with regional plug
1x DAT-G01R 3.0 dBi Dipole Antenna
1x Serial Data Cable
1x Ethernet cable
1x Wall mount bracket
1x CD-ROM
1x Quick Start Guide
