PS-OW10HF-CNX-RACK-DA-DC Intellian OneWeb OW10HL DUAL Flat Panel, Compact Mitigation with 19in Rack Mount CNX, 480W DC PSA (Land)

PS-OW10HF-CNX-RACK-DA-DC Intellian OneWeb OW10HL DUAL Flat Panel, Compact Mitigation with 19in Rack Mount CNX, 480W DC PSA (Land)

The OW10HL is the ideal Flat Panel UT for the Fixed Land based markets, offering a small lightweight and sleek form factor, designed to outperform existing connectivity solutions.

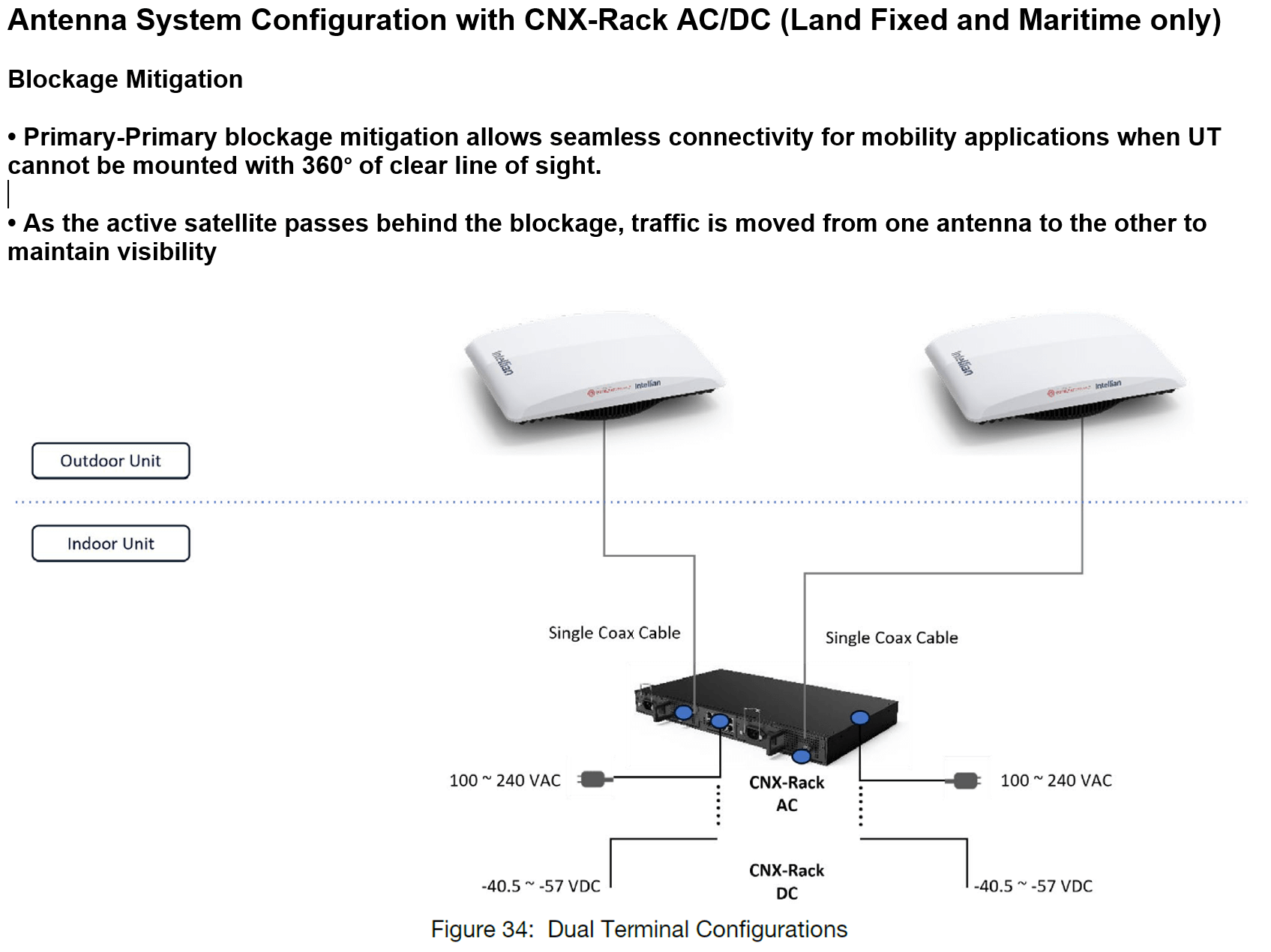

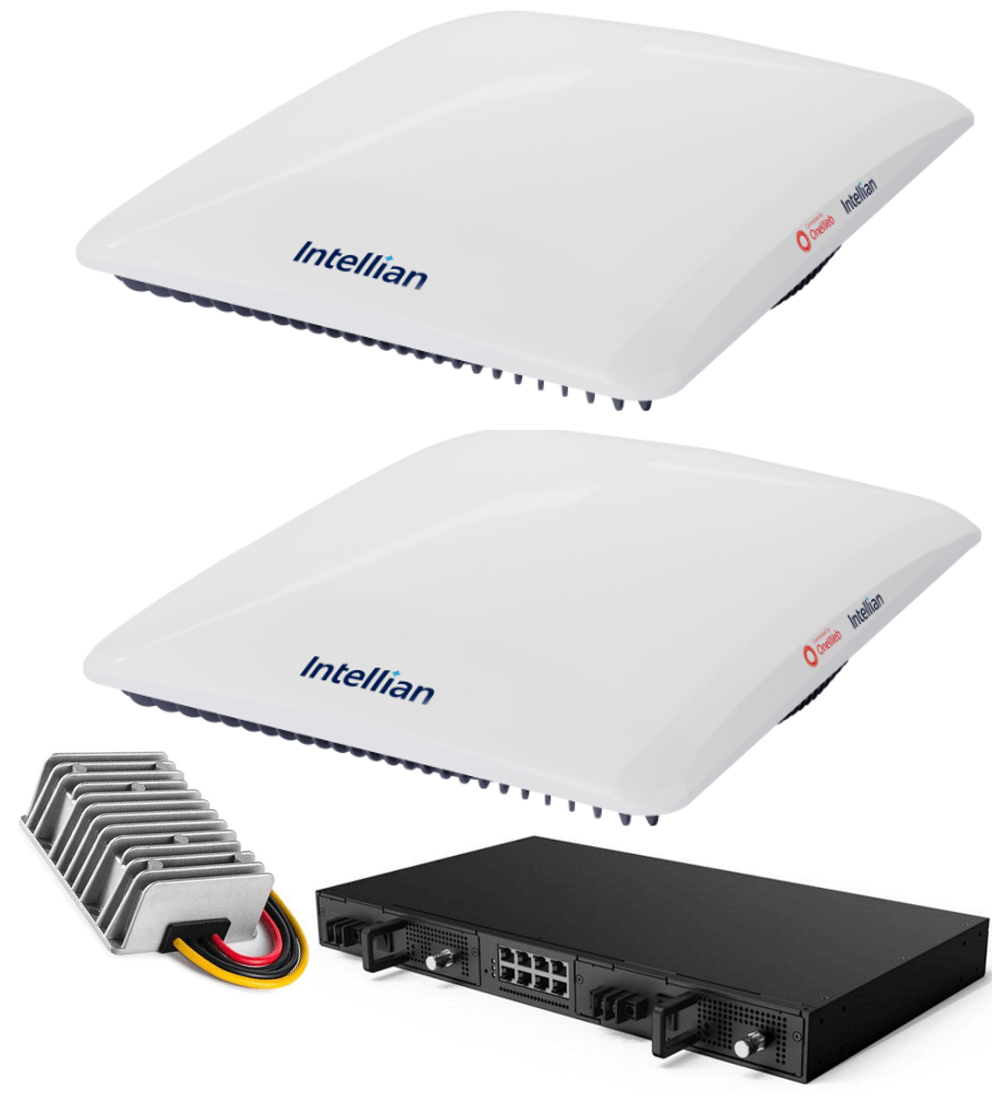

This Fixed Land Blockage Mitigation System Package comprises 3-parts:

• 2(two) packs of  part# OW10HL (Compact Flat Panel Kits), and
• 1(one) pack of part# PP-T2B0 CNX-RACK-DC (CNX-RACK-DC Kit) with 480W DC-DC PSA

The OW10HL from Intellian delivers unprecedented speeds in a compact form factor and optimized for size, weight and power (SWaP), it features a low- profile weatherized design which delivers reliable connectivity to maritime users. ​

​OW10HL Compact series Basic Overview

• The OW10HL is an electronically scanned array (ESA) user terminal (UT) which can be operated in the OneWeb low earth orbit (LEO) satellite constellation.
• The Eutelsat OneWeb communications network comprises terrestrial gateways positioned around the globe communicating with OneWeb user terminals.
• A radio link to the satellites is established using the UT operating in the Ku-band.

• The Compact series consists of three product variants, the OW10HL (fixed land), the OW10HM (maritime), and the OW10HV (land mobility).
• The UT’s provide network and internet access via the OneWeb network.

The OW10HL delivers the ideal solution for Fixed Land Based customers across:

• SMALL ENTERPRISE
• GOVERNMENT
• BU SINESS C ONTINUITY
• CELL ULAR BA CKHAUL

WHATS IN THE BOX – part# PS-OW10HF-CNX-RACK-DA-DC

Pack# 1 of 3 – ODU PACKAGE – part# OW10HL

• 1pce OW10HL Outdoor Unit
• 1pce RG6 cable, 5m (for testing purposes only)
• 4pcs Hex bolt_M6_12mm
• 4pcs Spring washer_M6
• 4pcs Flat washer_M6
• 4pcs Hex-S bolt_SF_M6
• 1pce RF warning sticker
• OW10HM QIG(Quick Installation Guide) for Compact Flat Panel
• 1pce Adjustable Mount Adapter (part# OW-6017 included with Land series only)
• 1pce Flexible grounding braid (included with Land series only)
• Package Size: (825 x 565 x 310mm)

Pack# 2 of 3 – ODU PACKAGE – part# OW10HL

• 1pce OW10HL Outdoor Unit
• 1pce RG6 cable, 5m (for testing purposes only)
• 4pcs Hex bolt_M6_12mm
• 4pcs Spring washer_M6
• 4pcs Flat washer_M6
• 4pcs Hex-S bolt_SF_M6
• 1pce RF warning sticker
• OW10HM QIG(Quick Installation Guide) for Compact Flat Panel
• 1pce Adjustable Mount Adapter (part# OW-6017 included with Land series only)
• 1pce Flexible grounding braid (included with Land series only)
• Package Size: (825 x 565 x 310mm)

Pack# 3 of 3 – IDU PACKAGE – part# PP-T2B0

• CNX-RACK-DC Unit
• 1pce WiFi Dongle
• 1pce Ethernet cable (RJ45), 1.0m
• 1pce DC-DC Converter, 12-24VDC to 48VDC, 490W PSA with integrated cords/cable
• 2pcs Ancle Bracket (to retrofit CNX-RACK into 19in Rack Mount)
• 8pcs M4 x 6mm Pan Head Retaining Screws, with 8pcs Spring and 8pcs Flat Washers (for securing Angle Brackets to CNX-RACK Unit)
• Documentation Pack, QIG(Quick Installation Guide)
• Package size: (569 x 429 x 310)

NOTE: This system requires, but does NOT include any CNX > Antenna Cable (refer to ordering guide below)

Optimized Performance: Utilizing Intellian’s innovative antenna design, the OW10HL high performance in a compact form factor. The small size combined with low power consumption deliver the ideal connectivity solution for use cases that are SWaP constrained but still require the high-speed connectivity provided by the OneWeb network.

Customer Network Exchange: Intellian’s Customer Network Exchange (CNX) units are a critical component of any OneWeb user terminal installation, providing both the power and data connectivity to the Flat Panel user terminal, and the connectivity to customer equipment and networks. CNX variants are offered for specific deployment scenarios including Land Fixed, Maritime and Land Mobility.

Seamless Connectivity: The OW10HL features Intellian’s advanced tracking technology, facilitating continuous, reliable handovers even at the lowest
elevation angles encountered in equatorial regions. Delivering the best performance at scan, the innovative flat panel technology facilitates seamless and
undisrupted connectivity.

Extreme Temperature Performance: The OW10HL is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to 131 °F), delivering reliable broadband services for customers situated in the most remote locations.

Simplified Installation: The lightweight design and compact form factor enables easy installation by a single person. Designed for use with standard off-the-shelf mounting solutions, the OW10HL can be deployed in a variety of locations to suit the application and environment. Installation is further simplified through use of combined power and data over a single coax cable connecting the indoor and outdoor units. The use of Intellian’s mobile
app for site survey, automated configuration, and monitoring further reduces the time required to get online.

OW10HM SPECIFICATION – Compact Panel (Maritime)

Antenna (ODU/ADU) – part# OW10HL

• Dimensions: 560 x 450 x 120mm(22.0 x 17.7 x x 4.7in)
• Weight: 12.2kg(27 lb)
• Power Max: 180W, Avg 165W
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• G/T: 9 dB/K
• EIRP: + 33.6 dBW (single carrier), +36.6 dBW (dual carrier)
• Field of View: ± 55° from zenith 360° azimuth
• Ingress: IP66
• Interface: F-type port, Ethernet Cable RJ45 port
• ENVIRONMENTAL
• Temperature(Operational): -40℃ to +55℃ / Power on IEC-60945, (Storage): -40 °C to +85 °C / Power off IEC-60945
• Wind: 240 kph (149 mph)
• Humidity: IEC-60068-2-30, Upper test Temp: +40℃ (-3), Humidity 98%, Lower test Temp: +15℃ (+3), Humidity 71% ~ 78%
• Vibration(Operational): IEC-60945, MIL-STD-810H (For Land Mobile and Maritime), MIL-STD-167-1 (For Land Mobile), (Survival): IEC-60721-3-6 Class 6M3
• Shock(Operational): IEC-60068-2-27 Method Ea 20g, 7ms, MIL-STD-810H (Land Mobile & Maritime), Survival (Transient): IEC-60721-3-6 Class 6M3 type II 30g, 6ms, Survival(Bump): IEC-60068-2-29 Method Eb 25g, 6ms
• Salt mist: Saline Solution 5+/-1% NaCL, Storage period of 7 days (IEC-60945)
• Water proofing: IP66 (IEC-60529)
• Solar: IEC 60945-Annex B, Operational Air Temperature: between -40°C and +45°C with the addition of 1120Watt / m2 solar radiation

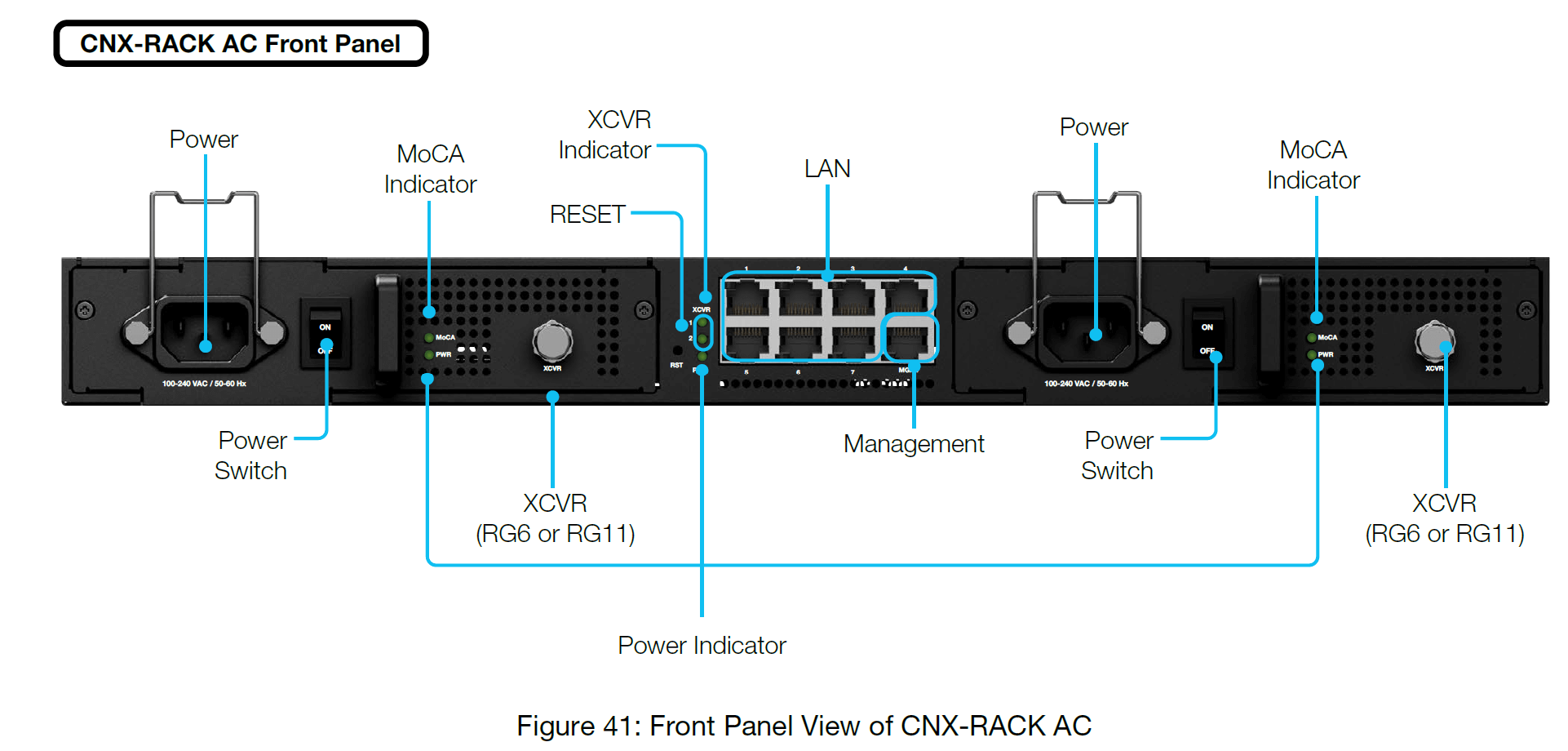

OP-T2B0 (CNX-RACK-DC) Basic Specifications:

• Intellian Part: OP-T2B0 (480W Dual -48VDC PDM)
• Form Factor: 19in Rackmount
• Dimensions: 44.2 x 25 x 4.4cm (19in x 1 RU chassis)
• Weight: 6.3kg (13.9lb)
• Operating Temp: -25°C to +55°C (-13°F to +131°F)
• Ingress: IP31
• Interface: 8-port GigE RJ45, WiFi Dongle port, and  F-Type Port
• Power Input: 40.5 to 57VDC
• PSA Compatibility: Refer to below Installation Guide
• UT Compatibility: Compact Series & Enterprise UT Series

CNX ORDERING GUIDE

• CNX-BB stand-alone, part# PP-T1A0 (requires, but does NOT include any PSA)
• CNX-BB Bundle, part# PP-T1A0-250A, Description: CNX-BB with 250W AC/DC PSA, Application: OW10HL, OW10HV and OW10HM
• CNX-BB Bndl, part# PP-T1A0-DC, Desc: CNX-BB with 480W DC-DC Converter PSA(No ACC), Application: OW10HL and 10HV
• CNX-WIFI series/application
• CNX-Wifi stand-alone, part# PP-T1A1 (requires, but does NOT include any PSA)
• CNX-Wifi Bundle, part# PP-T1A1-250A, Description: CNX-Wifi with 250W AC/DC PSA, Application: OWHL, OWHV, OWHM
• CNX-Wifi Bundle, part# PP-T1A1-450A, Description: CNX-Wifi with 450W AC/DC PSA, Application: OW11FL, OW11FL, OW11FM
• CNX Wifi Bndl, part# PP-T1A1-DC, Desc: CNX-Wifi with 480W  DC-DC Converter PSA(No ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-Wifi Bndl, part# PP-T1A1-DCA, Desc: CNX-Wifi with 560W DC-DC PSA(with ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-MOBILITY series/applications
• CNX-Mobility stand-alone, part# PP-T2D1 (Requires but does NOT include any PSA)
• CNX-Mobility Bundle, PP-T2D1-450A, Desc: CNX-Mobility with 450W AC/DC PSA, Appn: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Mobility Bundle, part# PP-T2D1-DC, Desc: CNX-Mobility with 480W DC-DC Converter PSA(No ACC), Appn: OW10HV and OW11FV
• CNX-Mobility, part# PP-T2D1-DCA, Desc: CNX-Mobility with 560W DC-DC PSA(with ACC), Appn: OW10HV and OW11FV
• CNX-RACK series/applications

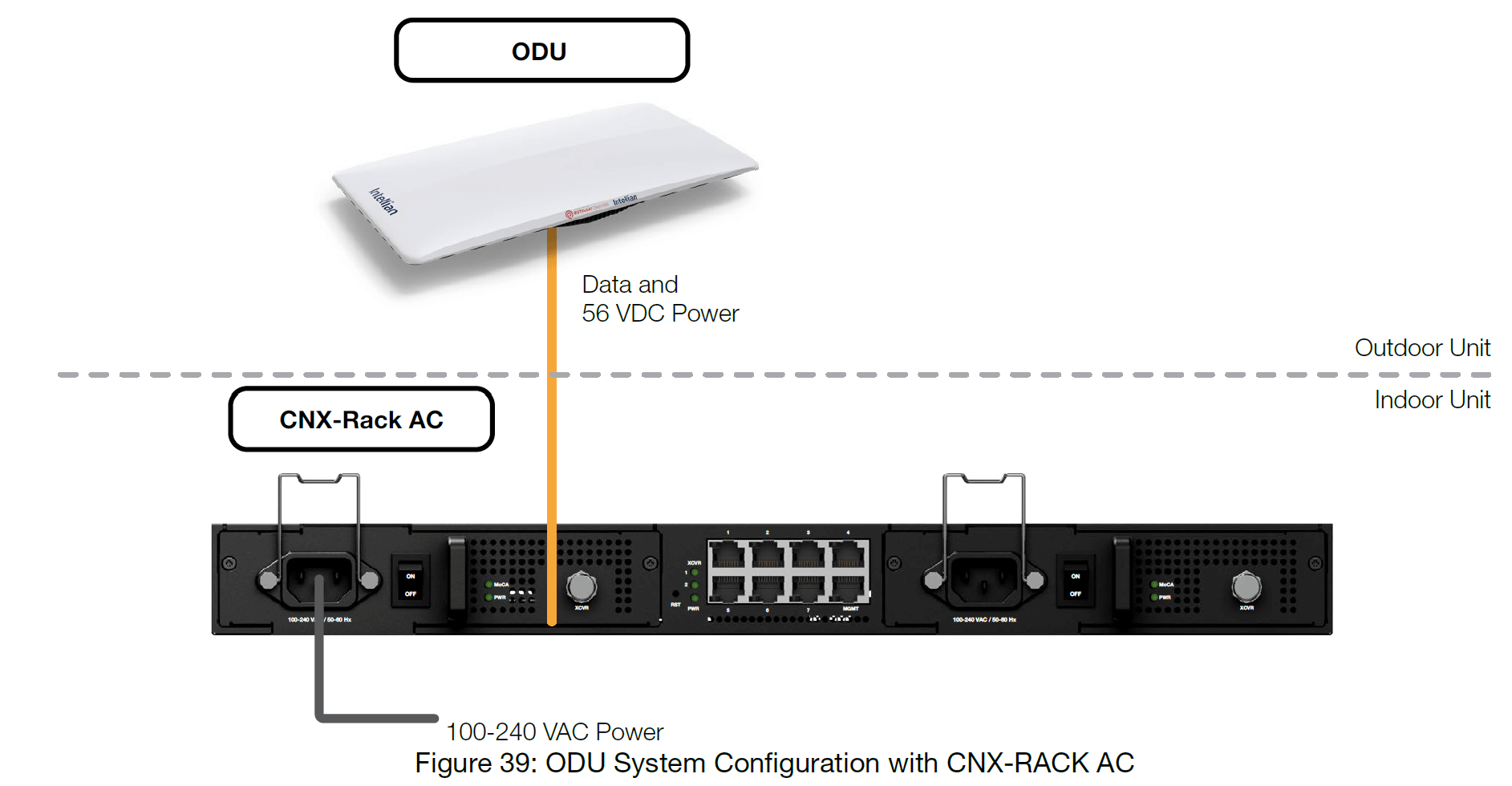

• CNX-Rack-AC, part# OP-T2C0, Description: CNX-Rack-AC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Rack-DC, part# OP-T2B0, Description: CNX-Rack-DC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM

CNX COMPATIBILITY GUIDE

• COMPACT PANEL APPLICATIONS
• OW10HL (Fixed Land), and OW 10HV (Land Mobile/Vehicle)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-BB w/ 480W DC-DC Converter PSA, Order part# PP-T1A0-DC
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Wifi w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW10HM (Maritime)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0
• ENTERPRISE PANEL APPLICATIONS
• OW11HL (Fixed Land), and OW 11HV (Land Mobile/Vehicle)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Wifi w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW11HM (Maritime)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0

SUPPORTED CABLES – INSTALLATION GUIDE

• Refer below for: OW10FM (Maritime), OW10HL (Fixed Land), OW10FV (Land-mobile/Vehicle)
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 75m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 75m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 55m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 100m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 250m, Cable Type: LMR400, MANUF. Part# LMR-400FR-Bulk
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 400m, Cable: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• Refer below for: OW11FM (Maritime), OW11HL (Fixed Land), OW11FV (Land-mobile/Vehicle)
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 40m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC- Embedded PSA, 56VDC output, , Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 110m, Cable Type: LMR400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 260m, Cable Type: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• EXTENDED LENGTH CABLES:
• Available upon request, once the Panel and CNX configuration are decided, please contact our office for calculations and recommendations.
• END OF REFERENCES
