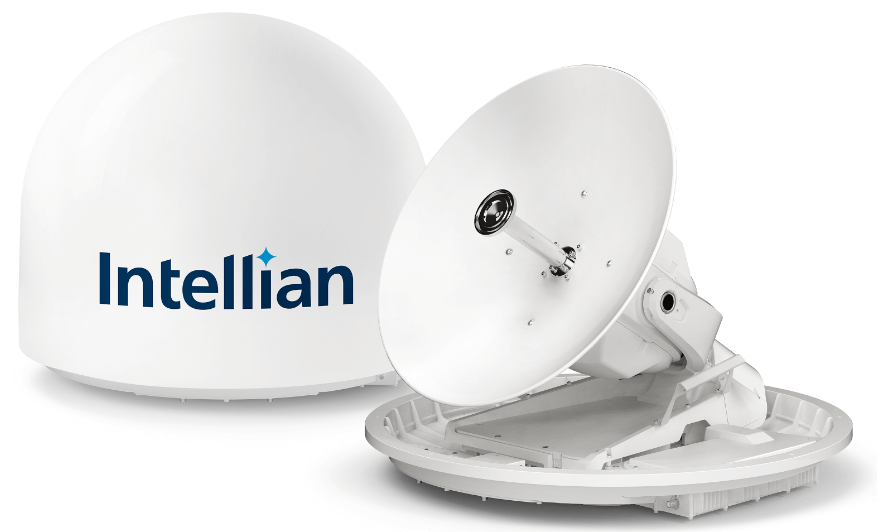

PS-OW50SP-S2 Intellian OneWeb OW50SL-DAC Parabolic Terminal, 9 dB/K, (Land)

PS-OW50SP-S2 Intellian OneWeb OW50SL-DAC Parabolic Terminal, 9 dB/K, (Land)

The OW50SL is a fast retrace, single parabolic user terminal (UT) for land, designed for Eutelsat OneWeb’s Low Earth Orbit (LEO) network.

This single parabolic UT integrates complex satellite communications technology into a design that meets the needs of small, medium and large enterprises.

Eutelsat OneWeb supplies high speed internet connectivity to every corner of the world, even in the most remote locations.

Utilizing its 648 satellite constellation, OneWeb is able to deliver high speed, low latency connectivity to remote customers where other connections are not possible

KEY FEATURES:

Fast retrace time: The innovative design of the OW50SL enables LEO satellite handovers with a single parabolic terminal. In less than a second (0.00075), the antenna is able to retrace between a falling satellite and a rising satellite. Additionally, with the keyhole-free design of the OW50SL, the antenna is able to track even when the satellite is directly overhead.

Better performance for customers: The OW50SL delivers 9.3 dB/K G/T with a 53 cm reflector. The terminal’s 2 axis stabilization platform enables motion detection accuracy and is specifically designed for deployment by small businesses. The OW50SL is an ideal solution, enabling satellite communication at a reasonable cost.

9.3 dB/K antenna with 2 axis stabilization: 2 axis stabilization for ease of tracking LEO satellites. Since the tilted AZ axis has a driving range of +/- 59˚ based on zenith 0 degree, no separate keyhole avoidance design is required.

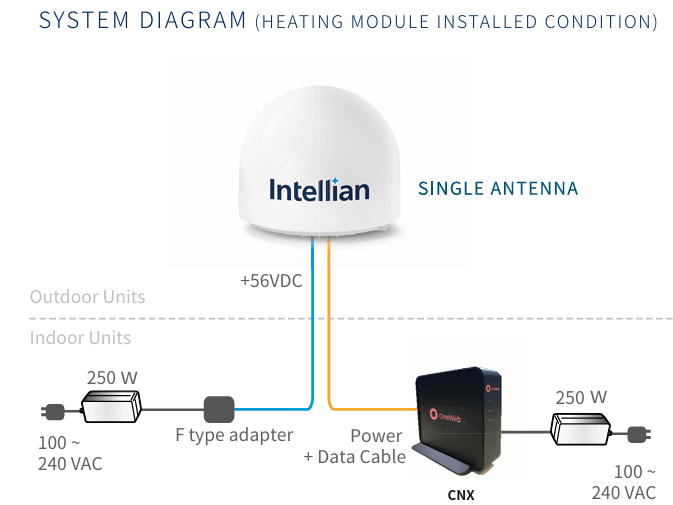

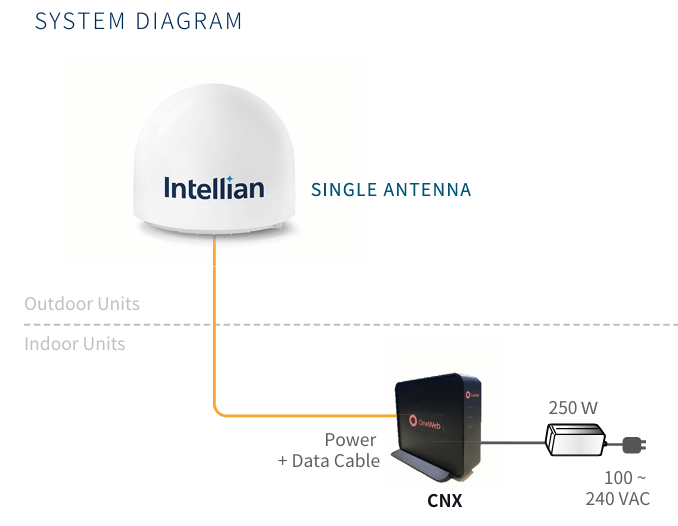

Simplified installation: The OW50SL simplifies the deployment and installation process. The lightweight design enables a single-person install, reducing cost and time. The terminal has a single cable connection which carries both data and power between indoor and outdoor units.
