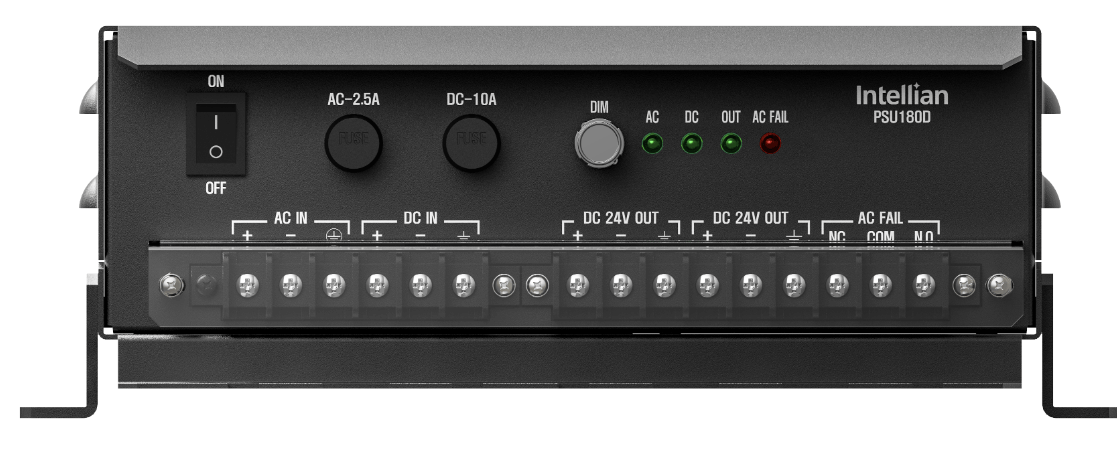

PSU180D Intellian Power Supply Unit for GMDSS Systems

PSU180D Intellian Power Supply Unit for GMDSS Systems

Compatibility: Power Supply Unit for all GMDSS Systems only.

PSU180D In this Pack:

• 1pce PSU(Power Supply Unit) only

No other parts or accessories are included in this pack.

SPECIFICATIONS – PSU180D Power Supply Unit

• Dimensions:
• Weight: 1.0kg / 2.2lb
• AC Input:
• DC Output: 24VDC
• IP Rating:
• Temperature (Operational):

TYPICAL INFO REFERENCE FOR C200M GMDSS SYSTEM – BELOW************************************************

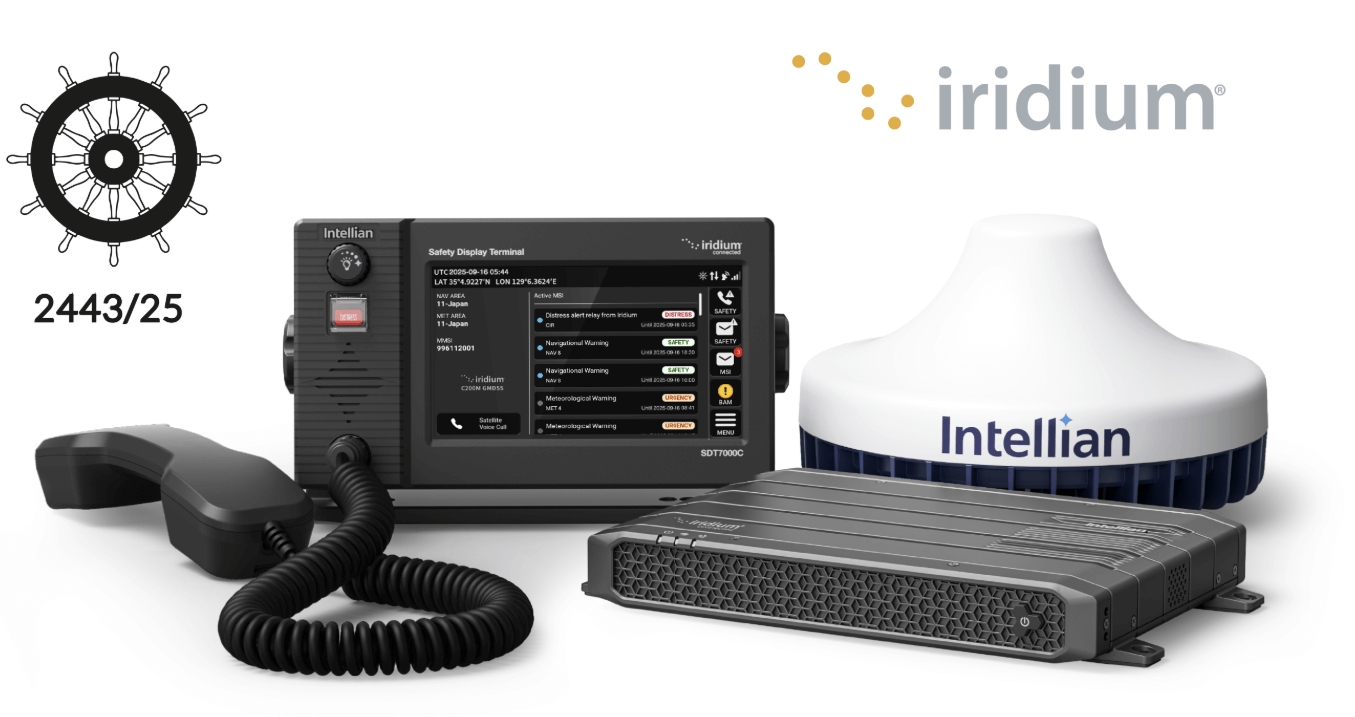

C1-20-A00S-GMDSS Intellian C200M GMDSS Iridium Certus System, Basic

The Intellian C200M GMDSS System is a cutting-edge, truly global GMDSS solution, fully recognized by the IMO and SOLAS Convention and certified for global coverage including polar regions.

This all-in-one terminal supports all three required GMDSS services over Iridium: Distress Alert, Safety Voice, and Maritime Safety Information (MSI).

In addition to these critical safety functions, it features standard voice calling, Long Range Identification Tracking (LRIT), and Ship Security Alert System (SSAS), making it a comprehensive solution for any vessel.

C200M GMDSS – In this Pack:

• C200M BDU Terminal
• C200M ADU Antenna
• Safety Display terminal(SDT)
• Mounting Bracket for SDT
• Audio Handset
• Cradle
• Installation Hardware, various sundry items
• QSG(Quick-start-guide)
• Installation Guide
• User Manual
• NOTE: Requires, but DOES NOT include any RF Coax Antenna Cable

Optional Accessories are available to Order, but may or may  not be NOT included in this pack, such as:

• SDT-1000 Safety Display terminal
• AB1000 GMDSS Alarm Box
• AU1000 GMDSS Alarm Unit
• JB1000 Junction Box
• SB7000A SSAS Alert box
• SB7000T SSAS Test Box
• ISW205 Moxa Switch, Ethernet Splitter Distribution Box
• PSU180D Power Supply
• SRP-350 PlusIII Thermal Printer
• SPR8695 Qwerty Printer

Versatile L-band Connectivity

Beyond its GMDSS capabilities, the C200M GMDSS System also provides reliable non-GMDSS data for stand-alone routine communications, and can serve as a dependable, robust L-band companion to your Flat Panels or VSAT via the below deck unit.

C200M GMDSS System – Key Features
• 100% Global Coverage
• SOLAS approved (MED/Wheelmark)
• 7” IPS TFT Full Touch Screen
• Auto & Manual Dimming Function
• Safety Voice, Safety Messaging and MSI(Marine Safety Information)
• Distress Alert & Distress Call
• Supports non-emergency communications
• Intuitive, User-Friendly Graphic Design
• SSAS & LRIT functions
• Full set of accessories available including power supply and optional keyboards

Safety Messaging and Safety Voice in a single product

The Intellian C200M GMDSS System prioritizes seafarer safety. A single press of the distress button on the Safety Display Terminal (or on our GMDSS Alarm Box, or GMDSS Alarm Unit) instantly alerts your specified Maritime Rescue Co-ordination Center (MRCC). The system provides immediate status updates, confirming your message has been received and read by the MRCC. Following this, the C200M GMDSS System automatically initiates a voice call to the MRCC, allowing the Officer of the Watch (OOW) to speak directly with rescue authorities.

C200M REFERENCE INFORMATION BELOW****************************************

C1-20-A00S Intellian C200M Iridium Certus System, Maritime

Iridium Certus® C200M Terminal designed for maritime and suitable for the smallest vessel or USV

Many of the features and underlying technology of the C200M are common with the market leading Intellian C700 Maritime terminal that is trusted globally for its reliability and performance.

The Intellian C200M provides IP data speeds of up to 176 Kbps (up and down), supports multiple concurrent voice calls, and can be configured as a stand-alone terminal or as a VSAT companion. Customers will gain both scalability and advanced performance over the Iridium Certus network whenever needed.

FACTORY PACKAGE CONTENTS – C200M you will receive separately packaged the below(as ordered):

1. ADU Package

• 1pce Above Deck Unit (ADU) L240 x W240 x H143mm (aka the Antenna Unit)
• 1pce Antenna Mounting Template
• …. and To Mount Antenna on Mounting Surface(M6 Bolt Kit), you will find:
• 5pcs Hex Bolt, M6 x L20mm
• 5pcs Spring Washer, M6
• 5pcs Flat Washer, M6

2. BDU Package

• 1pce Below Deck Unit (BDU) Terminal, L315 x W190 x H42 mm
• 1pce DC Power Cable, 1.0m – to connect for BDU Power
• 1pce Ethernet Cable (RJ45 / LAN), 1.0m – To Connect for BDU to PC
• 1pce Wi-Fi Antenna
• 1pce Quick Installation Guide (QIG)
• 5pcs Tapping Screw, M5 x L16mm  – To Fix BDU (Direct Mounting Type)
• 1pce Terminal Block 85 x 40 x 36 mm – For Inter-connection of Cables

3. OPTIONAL – 19in Rack Mount Package(not included as standard supply – must be ordered separately)

• 1pce AC Power Cord (USA), 1.5 m – BDU Power Cord (110VAC)
• 1pce AC Power Cord (CEEE7/7), 1.5 m – BDU Power Cord (220VAC)
• 1pce AC-DC Adaptor – BDU Power Adaptor (150W)
• 1pce Rackmount Plate
• 5pcs Pan Head Screw (with Spring & Kit for Rackmount Plate Flat Washer), 5 M4 x L16mm
• 1pce Cable Tray Kit for Cable Tray
• 4pcs Flat Head Screw M3 x L6mm
• NOTE: The 19-inch Rack Mount Kit can be purchased separately. When this kit is supplied, it is packaged in the BDU Package. Intellian recommends using a 19″ rack shelf (not supplied) to support the BDU in the rack.

4. OPTIONAL – Pole/mast Mount Kit Package(NOT included as standard supply – must be ordered separately)

• 1pce Pole Bracket
• 1pce Pole Tube
• 10pcs Hex Bolt, M6 x L20mm
• 5pcs Hex Bolt, M6 x L25mm (Only for FB250/FleetOne use)
• 10pcs Spring Washer, M6
• 10pcs Flat Washer, M6
• 1pce 40mm (1½ inch) Pole Bushing – For Mounting Antenna on 40mm(1½ inch) Pole
• 4pcs Socket Set Screw, M12 x L12mm
• NOTE: The Antenna Pole Mount Kit can be purchased separately. When this kit is supplied, it is provided in a
  separate box.

Small and light

The Intellian C200M has been designed and manufactured as a small and lightweight terminal that will fit on any vessel or USV. Measuring only 240 x 145 mm / 9.45” x 5.71” and weighing 3.5 kg / 7.7 lb, it is Intellian’s smallest terminal.

Built-in AptusLX intuitive management tool

Simple and quick installation via AptusLX, an intuitive web-based platform to manage and control the terminal.

Lower total cost of ownership

Intellian focus on delivering value to our customers through low total cost of ownership. This comes from building highly reliable terminals that are easy to install and have a wide range of features and functionality that reduces the amount of additional equipment required. Intellian’s responsive global support teams are there to help if needed and the terminal comes with a market leading 3 year parts and labour warranty.

All-in-one solution

The C200M terminal delivers unparalleled features and functionality that include: WAN mediator, Wi-Fi antenna, built-in soft PABX & firewall and will be GMDSS-capable upon its introduction to Iridium Certus. Bringing all these features together in one package simplifies installation & configuration, and eliminates the possibility of conflicts that can occur when these features are provided using connected equipment.

The perfect VSAT companion

• L-band element of an intelligent hybrid network
• Data communication throughput – 176 Kbps Up, 176 Kbps Down
• Out-Of-Band management
• Powerful API enables full integration with 3rd party Smart Boxes
• 19″ rack mount BDU version available

Advanced voice solution

• 3 HD Quality voice lines
• Directly connect up to 4 SIP Phones
• Up to 2 analog telephones
• Soft PABX for up to 16 SIP Phones
