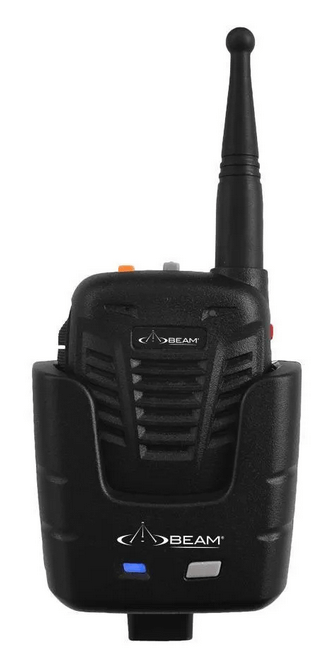

PTT100A Beam 9575PTT Secondary Wireless Handset Kit, for PTT-W1A

The Beam Secondary Wireless Handset is an optional accessory for the Beam Drive DOCK (PTT-1WA) that pairs in seconds and allows additional wireless handsets to be operated in conjunction with the PTT-W1A main push-to-talk handset and base.

Up to 2 handsets can be connected for use simultaneously via one gateway.

This unique feature enables multiple handsets to run off one base unit and antenna.

Additionally, once a secondary handset is connected, it enables both users to communicate privately to each other locally through the Talkaround function.

Talkaround Feature

Talkaround allows users to converse amongst the Wireless PTT handsets connected to the
main gateway cradle without their audio being transmitted over the satellite network. It is
activated by pressing the ‘grey’ button on top of the Wireless PTT handset

PTT100A Beam Wireless PTT Handset Kit, Secondary Includes:

• 1of “Secondary” Wireless PTT Handset,
• 1pce PTT100A Charging Cradle,
• 2pcs 50cm RJ45 to RJ45 Interface Cables(connecting cradles to Y-cable),
• 1pce Y-Interface Cable Connector(for connecting the x2 RJ45 from each cradle, in order to pair the “Primary” PTTW1A and “Secondary PTT100A” Handsets),
• 1pce R/angle PTT Bracket Kit(to fix Cradle to DriveDock Bracket,
• 1pce DriveDock Bracket Kit(to fix DriveDock to R/angle PTT Bracket),
• 1x Circular Spacer(for inserting into rear of DriveDock Base.
• NOTE: The Wireless PTT100A is an optional accessory. Using the Y-connector included in the kit, the PTT100A Wireless handset must be paired to the primary PTT-W1A gateway cradle to enable the dual PTT configuration.
